Aluminium Control enclosure with 2 control elements

0 reviews

Delivery time 2 weeks

Aluminium Control enclosure with 2 control elements

Enlarge image

Image 1 / 3

Aluminium Control enclosure with 2 control elements

0 reviews

in stock

Delivery time 2 weeks

Fortress Interlocks aluminium gatebox with 2 push buttons and 1 quick disconnector.

Article code THCPXPXQ2

€85,00

(€102,85 Incl. tax)

Article code THCPXPXQ2

Cable:

Position 1:

Position 2:

Buy 2 for €80,75 each and save 5%
Buy 5 for €76,50 each and save 10%

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description

Aluminium Gate box with 2 control elements

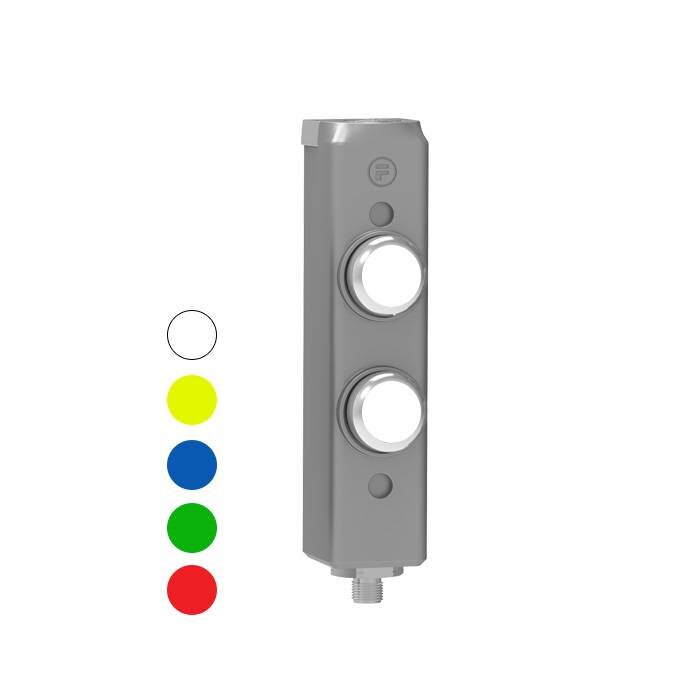

Choose from 5 different colours illuminated push buttons.

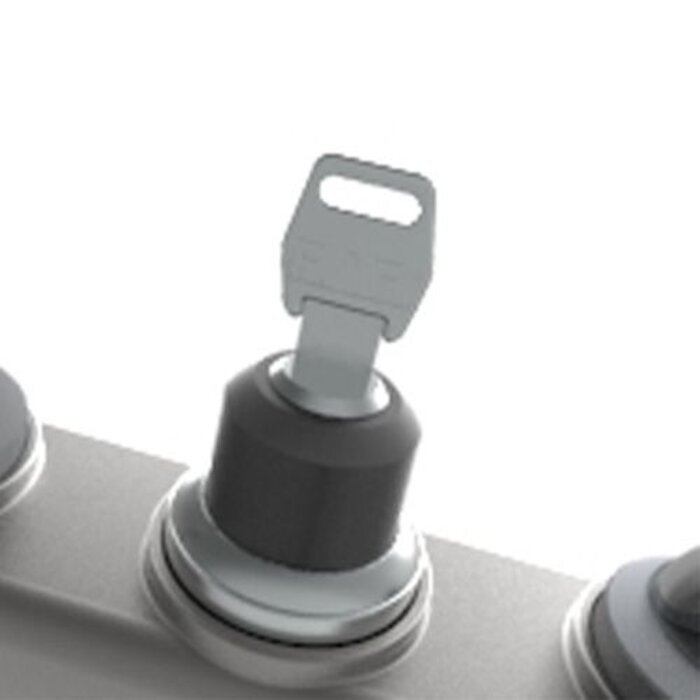

Other control elements available on request.

8pin M12 quick disconnector.

Ergonomic 40mm aluminium enclosure.

Fully sealed to IP65.

Specifications

Type:	Gate box
E-stop:	-
Series:	tGard
CE-mark:	Machinery Directive 2006/95/EG
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC
Housing:	Painted die-cast aluminium
Color:	Dark grey
Operating temperature:	-5°C to +40 °C
IP rating:	IP65 (IEC/EN 60529)
Connection:	8pin M12 quick disconnector

Add your review
0 stars based on 0 reviews

Aluminium Gate box with 2 control elements

Choose from 5 different colours illuminated push buttons.

Other control elements available on request.

8pin M12 quick disconnector.

Ergonomic 40mm aluminium enclosure.

Fully sealed to IP65.

Type:	Gate box
E-stop:	-
Series:	tGard
CE-mark:	Machinery Directive 2006/95/EG
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC
Housing:	Painted die-cast aluminium
Color:	Dark grey
Operating temperature:	-5°C to +40 °C
IP rating:	IP65 (IEC/EN 60529)
Connection:	8pin M12 quick disconnector
