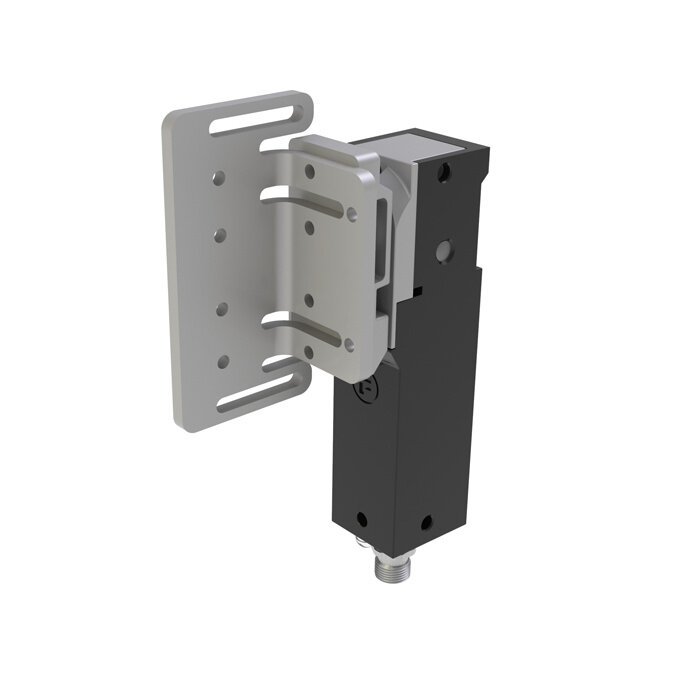

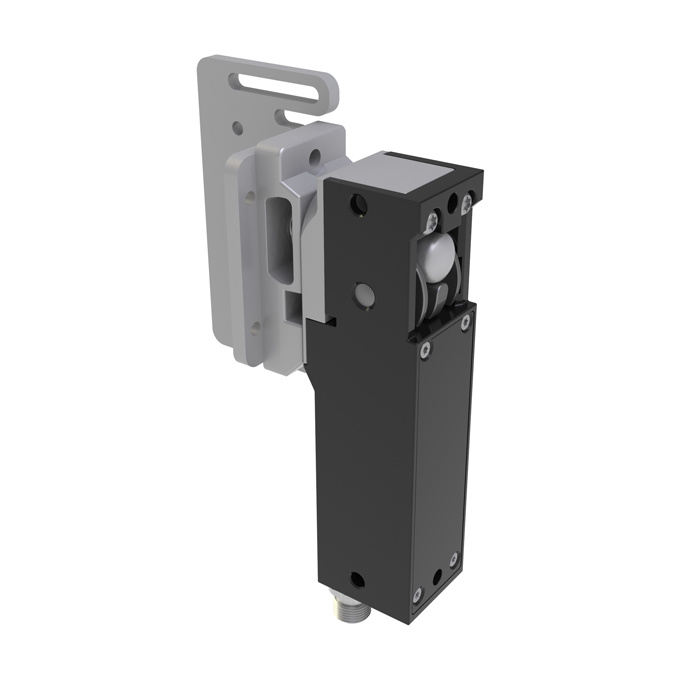

Art: ATM-100A1-A ATM-KB
- Actuator operated solenoid safety interlock switch for use in machine guarding applications.
- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is required (e.g. run-on movements).

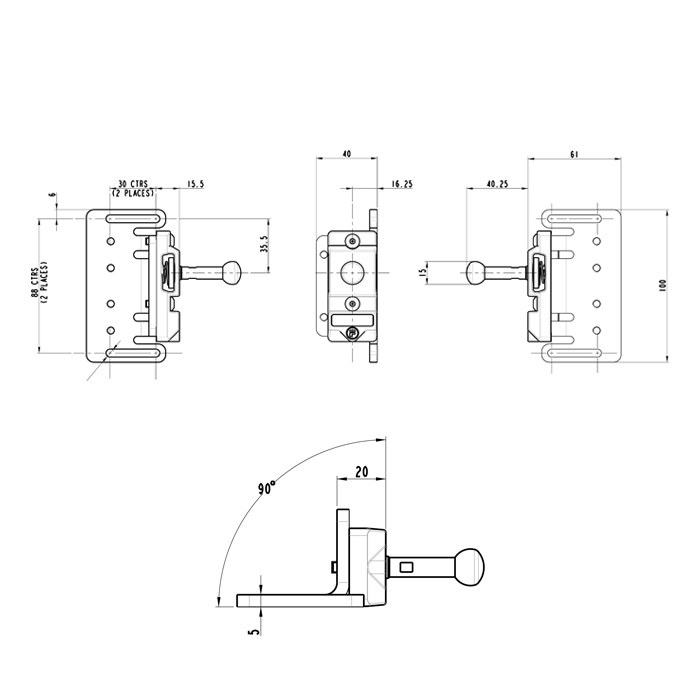

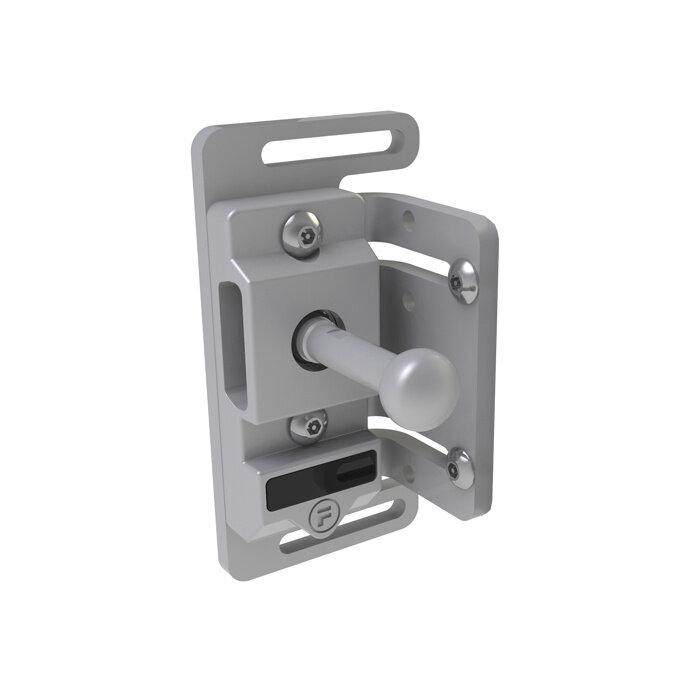

- Angled actuator designed for mounting on sliding doors.

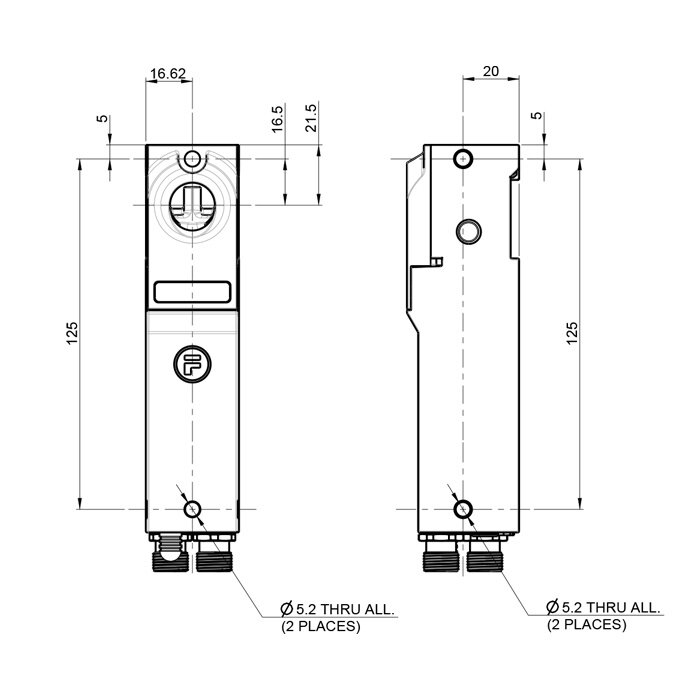

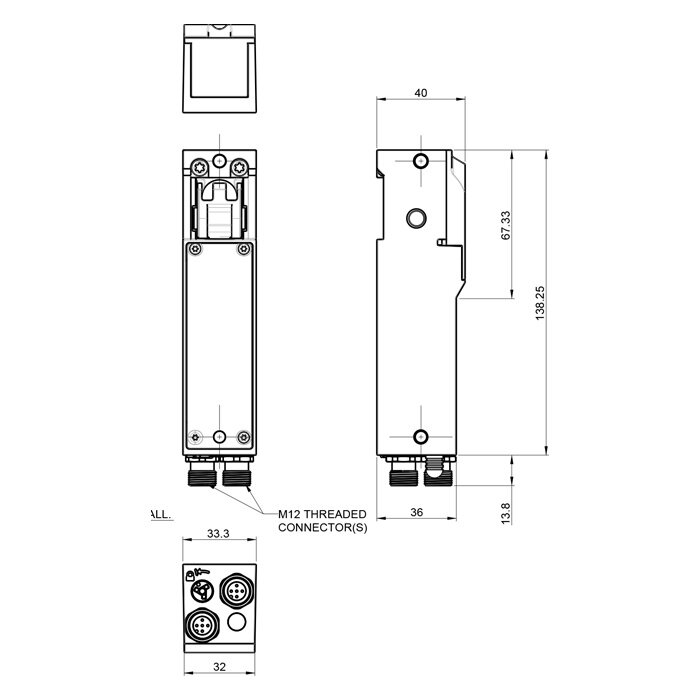

- Compact housing (33 x 40 x 139mm).
- c.w. high-coded RFID safety switch.
- Supplied with OSSD contacts as standard.

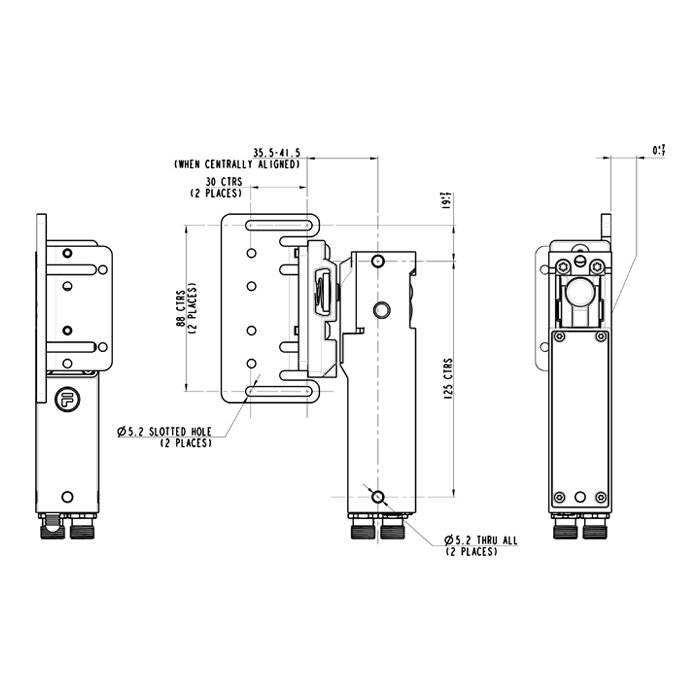

- Allows for guard misalignment (7.5mm in all directions).
- Robust, max. retention force 7,500 N.
- Suitable for environments with dust, vibration and debris.
- Fully sealed to IP67.
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- Only one unit needed to comply with PLe per EN ISO 13849-1.
|ATM-100A1-A ATM-KB||Power to unlock||1x 5pin M12|
|ATM-100A2-A ATM-KB||Power to unlock||2x 5pin M12 (daisy-chain)|
|ATM-100A3-A ATM-KB||Power to unlock||1x 8pin M12|
|ATM-100A4-A ATM-KB||Power to unlock||2x 5pin M12|
|ATM-610A1-A ATM-KB||Power to lock||1x 5pin M12|
|ATM-610A2-A ATM-KB||Power to lock||2x 5pin M12 (daisy-chain)|
|ATM-610A3-A ATM-KB||Power to lock||1x 8pin M12|
|ATM-610A4-A ATM-KB||Power to lock||2x 5pin M12|
- Brand: Fortress Interlocks
- Article number: ATM-100A1-A ATM-KB
- Type: Solenoid interlocked
- Series: amGard Pro
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC (+10% -15%)
- Solenoid voltage: 24V AC/DC (+10% -15%)
- Contact options: -
- Housing: Powdercoated steel and stainless steel
- Color: Red, black and silver
- Status LED: Yes (2)
- Operating temperature: -20°C to +55 °C
- IP rating: IP65 and IP67 (IEC/EN 60529)
- MTTFd: > 100 years
- B10d: 5,000,000
- Explosion proof: No
- Connection: Quick disconnector M12
- Operation: Power to lock or Power to unlock
- Retention force: 7,500N
- Mech life cycle: 1,000,000
- Max. switch current: 400mA
- Override key: Yes
