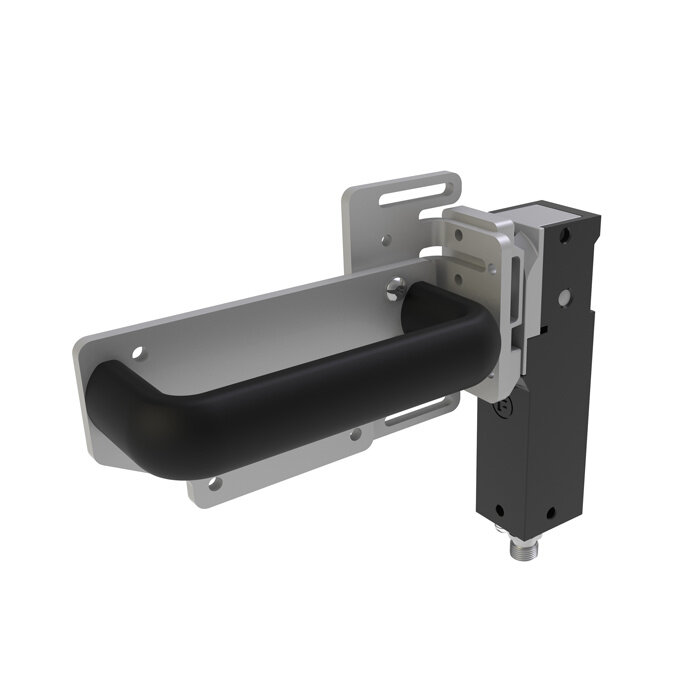

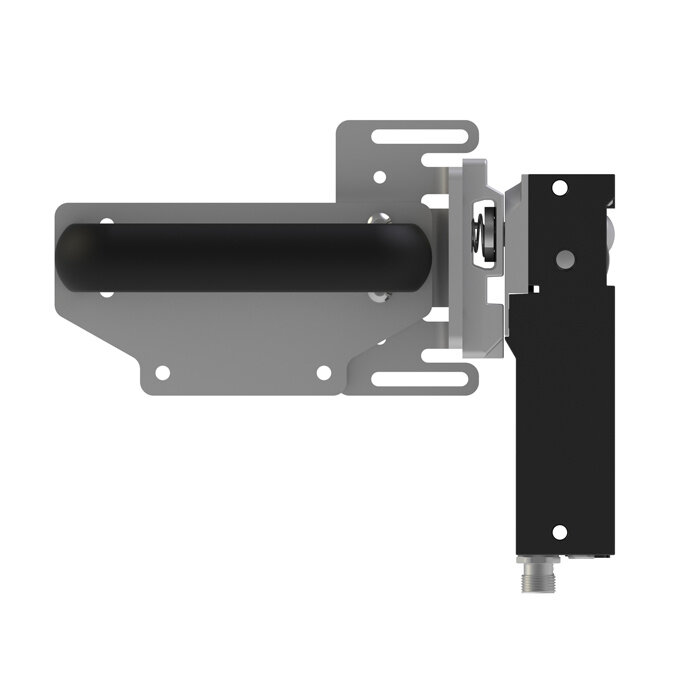

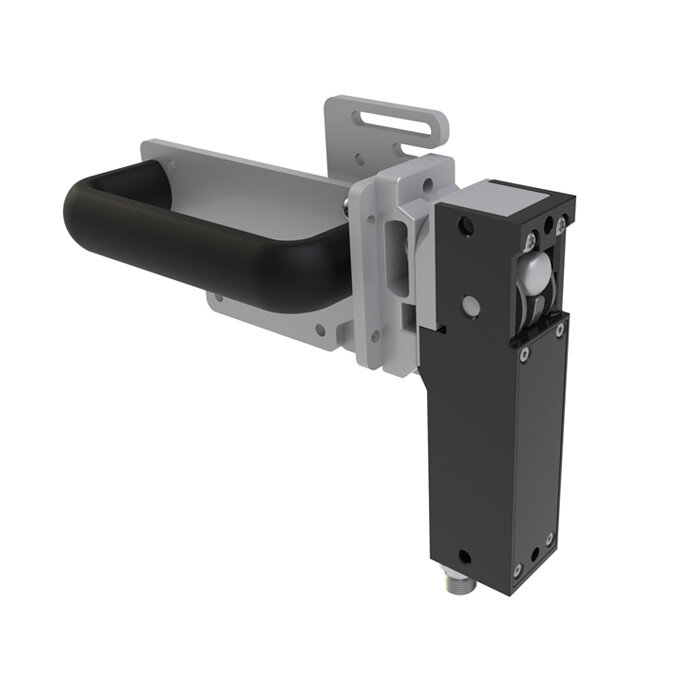

Fortress InterlocksRobust RIFD steel safety interlocks switch with ball and handle operated actuator PLe

• Actuator operated solenoid safety interlock switch for use in machine guarding applications.
• For monitoring the position of sliding, hinged and removable protective doors.
• Suitable for applications where door locking is required (e.g. run-on movements).

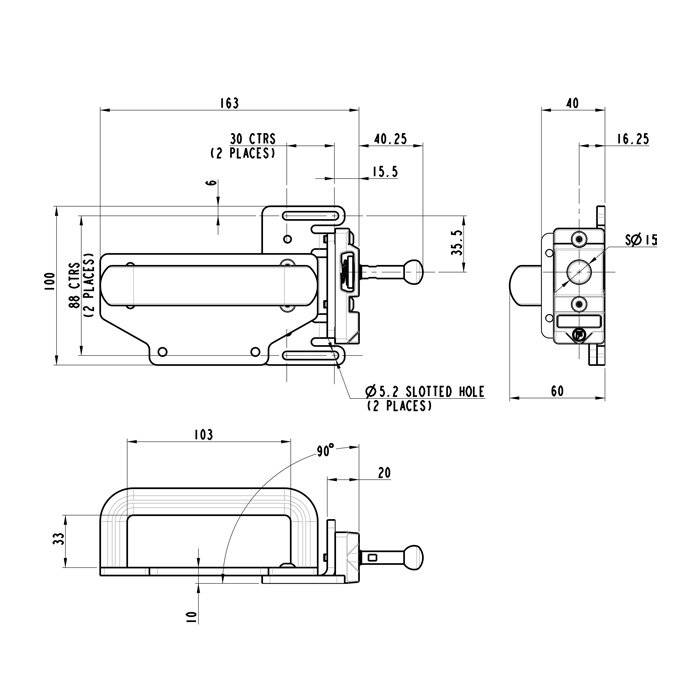

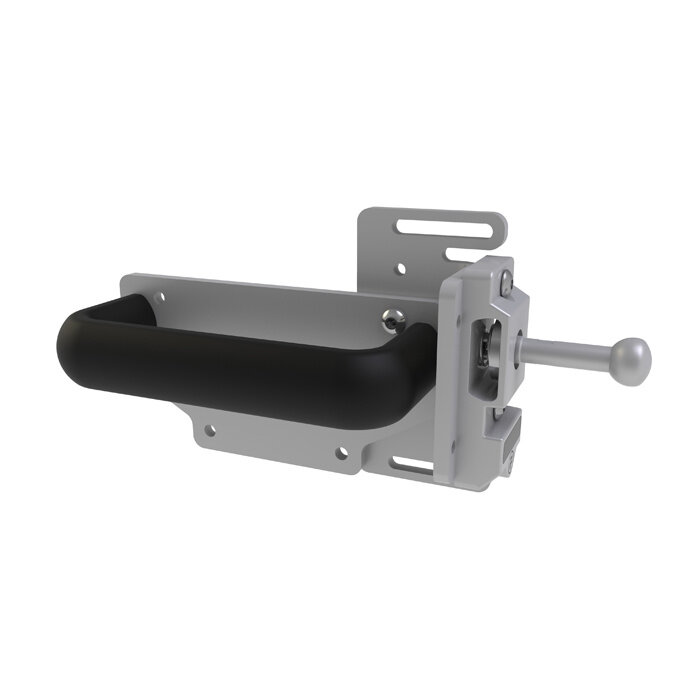

• Handle operated actuator designed for mounting on sliding doors.

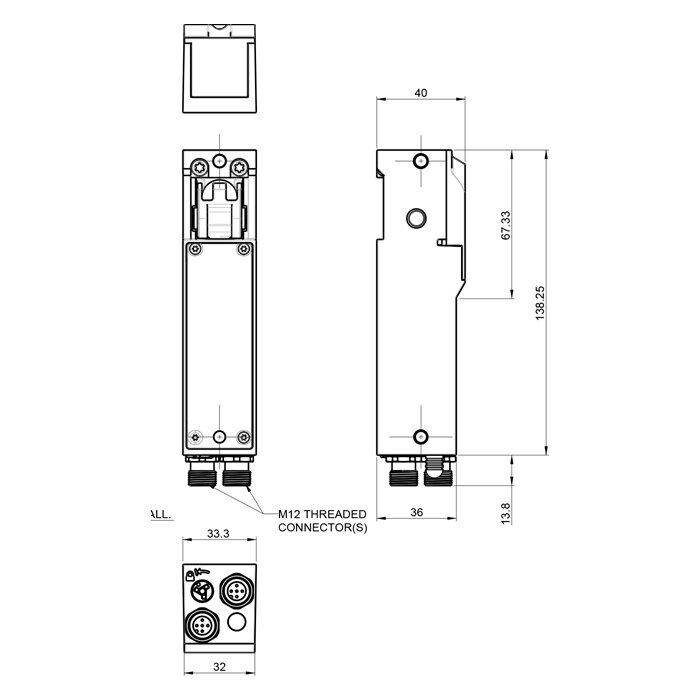

• Compact housing (33 x 40 x 139mm).
• c.w. high-coded RFID safety switch.
• Supplied with OSSD contacts as standard.
• Allows for guard misalignment (7.5mm in all directions).
• Robust, max. retention force 7,500 N.
• Suitable for environments with dust, vibration and debris.
• Fully sealed to IP67.
• In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
• Only one unit needed to comply with PLe per EN ISO 13849-1.
