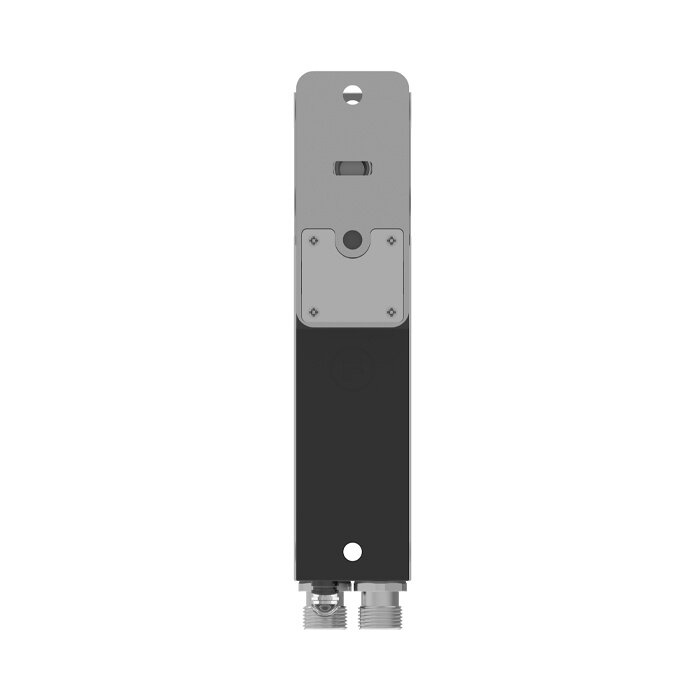

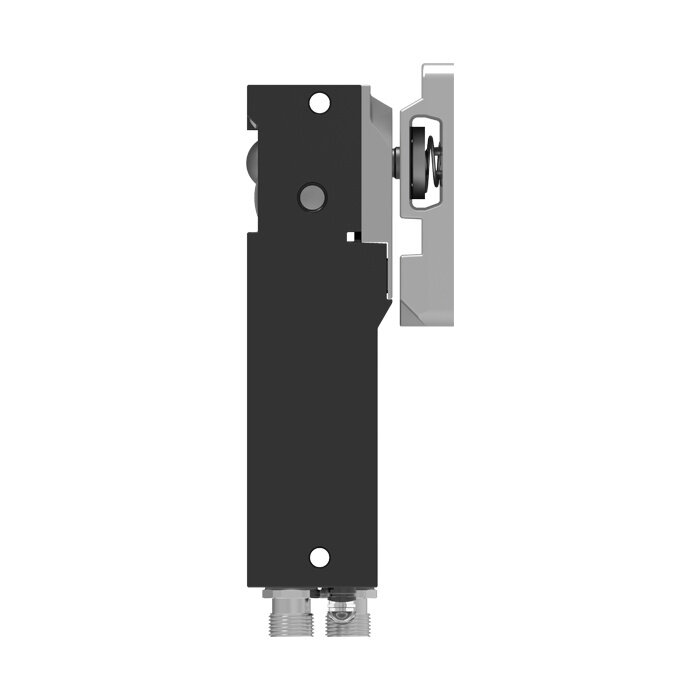

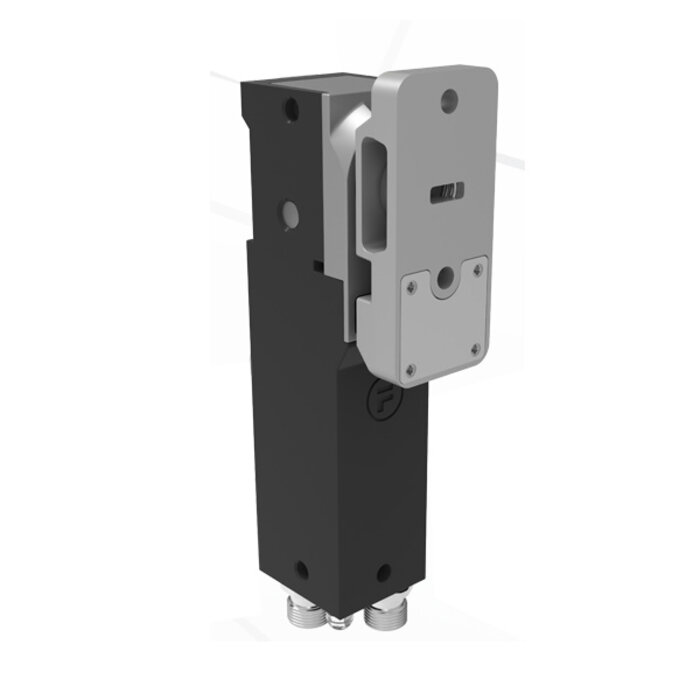

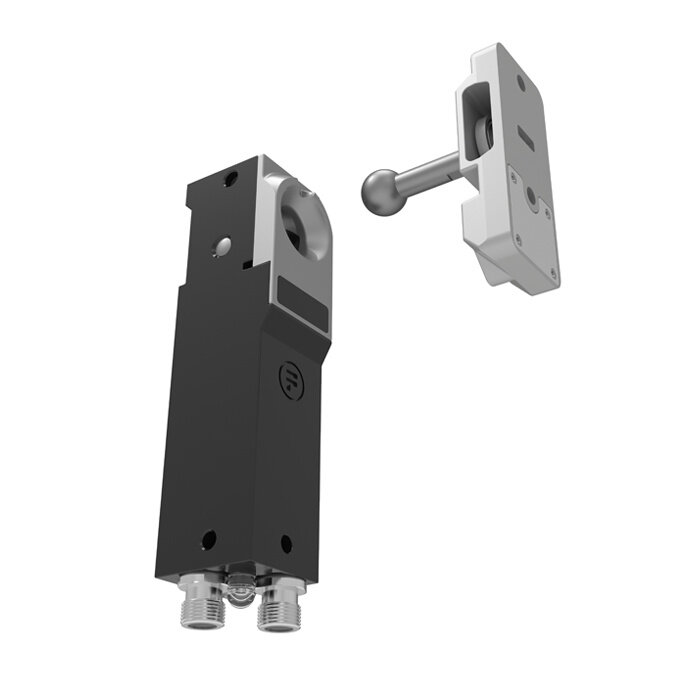

Robust RIFD ball actuator operated steel safety interlock switch PLe
Operation: Power to unlock, Connection: 1x 5pin M12
€300,00
(€363,00 Incl. btw)
Prefer a quote first? Click on "request quote" in your shopping cart
Robust RIFD ball actuator operated steel safety interlock switch PLe
Image 1 / 10
€300,00
(€363,00 Incl. tax)
- Article code ATM-100A1-A
-
Description
- Actuator operated solenoid safety interlock switch for use in machine guarding applications.

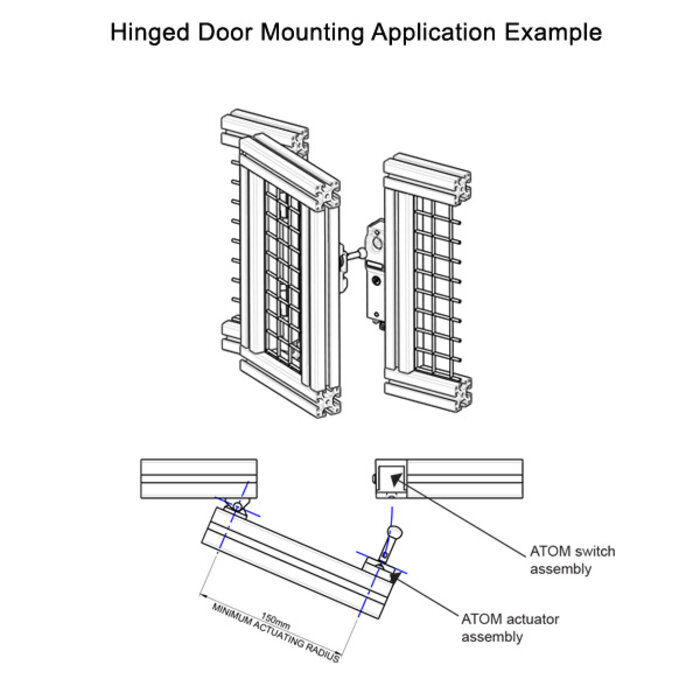

- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is required (e.g. run-on movements).

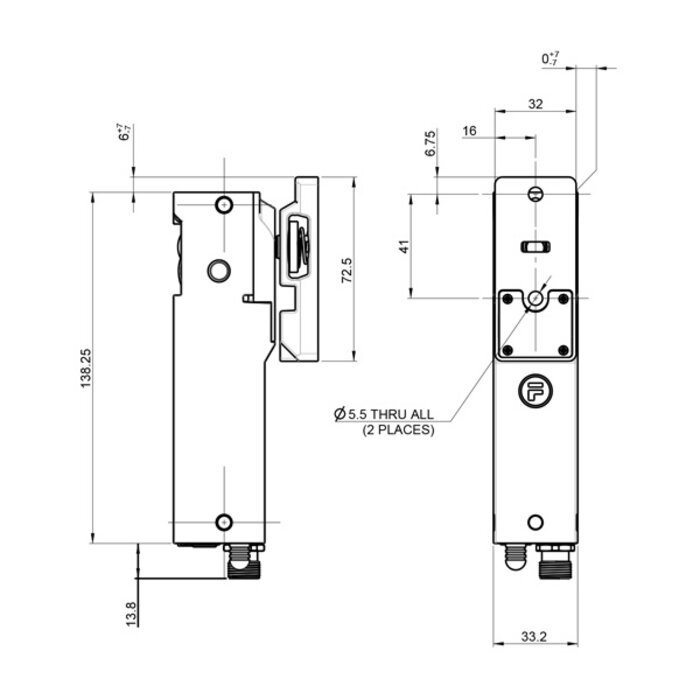

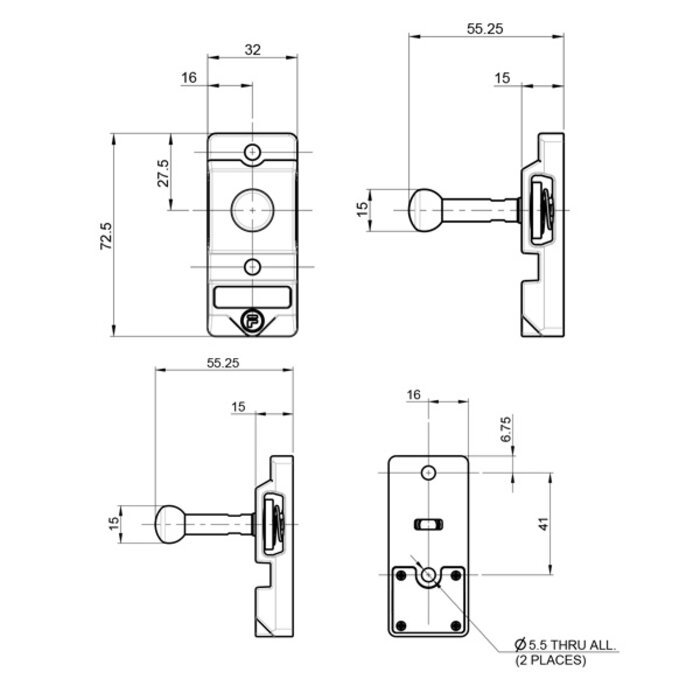

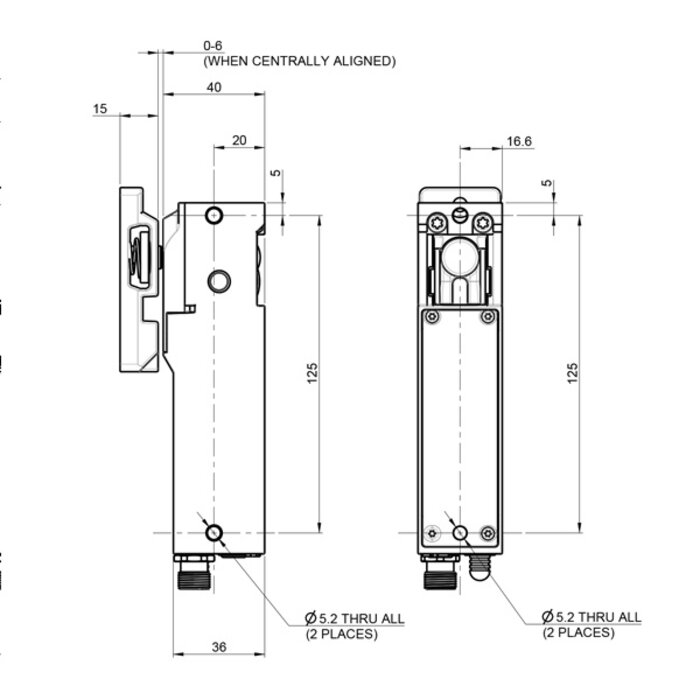

- Compact housing (33 x 40 x 139mm).
- c.w. high-coded RFID safety switch.
- Supplied with OSSD contacts as standard.

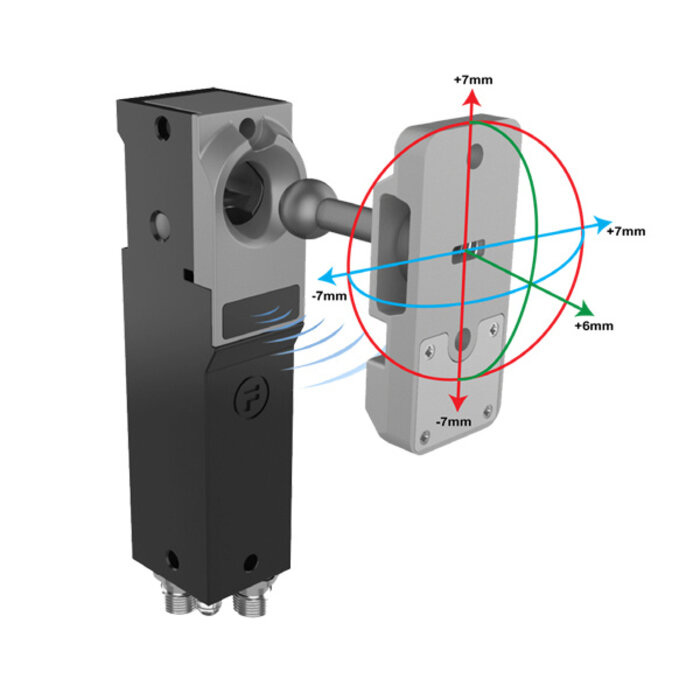

- Allows for guard misalignment (7.5mm in all directions).
- Robust, max. retention force 7,500 N.
- Suitable for environments with dust, vibration and debris.
- Fully sealed to IP67.
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- Only one unit needed to comply with PLe per EN ISO 13849-1.
Quick disconnector
ATM-100A1-A Power to unlock 1x 5pin M12 ATM-100A2-A Power to unlock 2x 5pin M12 (daisy-chain) ATM-100A3-A Power to unlock 1x 8pin M12 ATM-100A4-A Power to unlock 2x 5pin M12 ATM-610A1-A Power to lock 1x 5pin M12 ATM-610A2-A Power to lock 2x 5pin M12 (daisy-chain) ATM-610A3-A Power to lock 1x 8pin M12 ATM-610A4-A Power to lock 2x 5pin M12
-
Specifications
Type: Solenoid interlocked Series: amGard Pro CE-mark: Machinery Directive 2006/42/EC UL: UL 508 Industrial control equipment Operating voltage: 24V AC/DC (+10% -15%) Solenoid voltage: 24V AC/DC (+10% -15%) Contact options: - Housing: Powdercoated steel and stainless steel Color: Red, black and silver Status LED: Yes (2) Operating temperature: -20°C to +55 °C IP rating: IP65 and IP67 (IEC/EN 60529) MTTFd: > 100 years B10d: 5,000,000 Explosion proof: No Connection: Quick disconnector M12 Operation: Power to lock or Power to unlock Retention force: 7,500N Mech life cycle: 1,000,000 Max. switch current: 400mA Override key: Yes -
