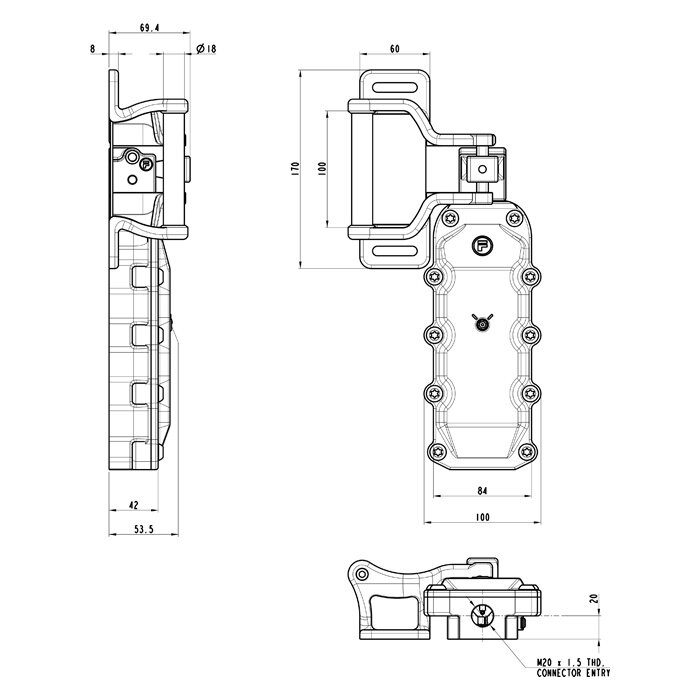

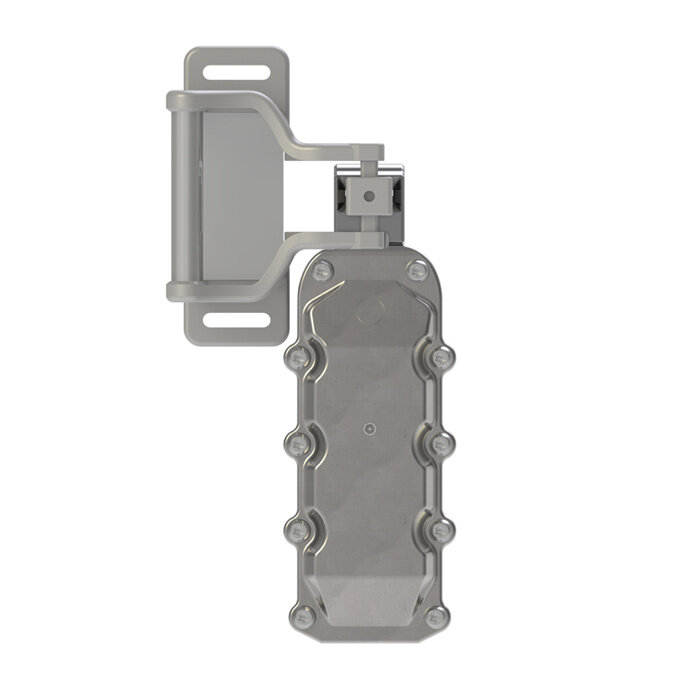

BackHomeExtreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Art: EXPHL1S6XL411

Fortress InterlocksExtreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe

Show all: Safety Interlocks,Explosion proof safety interlocks
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
Fortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLeFortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLeFortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLeFortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLeFortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLeFortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLeFortress Interlocks Extreme robust explosion proof handle actuator operated stainless steel 316 safety interlock switch PLe
€1.235,00 (€1.494,35Incl. tax)
2 - 4 weeks
Required fields:
    -+
    Bulk discount
    • QuantityDiscountPer pieceAdd
    • -2,5%€1.204,13-5%€1.173,25-7,5%€1.142,38
    Fortress Interlocks Alfred handle actuator operated Stainless Steel 316 safety switch with guard locking, designed for use in Ex Zones 1, 2, 21 und 22.Read more
    Payment on account or safely online
    Original products with full warranty
    Direct technical support
    All our products are TüV certified
    Description
    • Actuator operated solenoid safety interlock switch for use in Ex machine guarding applications.
    • Suitable for Ex Zone 1 / 21 / 2 / 22 (Ex II 2 G/D)
    • Kan gebruikt worden tot T6 temperatuurclassificatie (NEC 505 CEC 18
      ATEX / IECEx).
    • For monitoring the position of sliding, hinged and removable protective doors.
    • Suitable for applications where door locking is required (e.g. run-on movements).
    • Allows for guard misalignment ( +/- 12mm).
    • Extremely robust, max. retention force 10,000 N.
    • Suitable for environments with dust, vibration and debris.
    • Fully sealed to IP67 and IP69K.
    • Ambient temperature (tamb) -20ºC tot +60ºC.
    • In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
    • Only one unit needed to comply with PLe per EN ISO 13849-1.
    • 4 position fixing at 90º increments.
    • Wiring compartment.
    Specifications
    • Brand: Fortress Interlocks
    • Article number: EXPHL1S6XL411
    • Type: Solenoid safety interlock Ex
    • Series: Fortress Interlocks Alfred
    • CE-mark: Machinery Directive 2006/42/EC
    • UL: UL 508 Industrial control equipment
    • Operating voltage: 24V AC/DC, 110V AC or 230V AC
    • Solenoid voltage: 24V AC/DC, 110V AC or 230V AC
    • Contact options: 4 N/C + 2 N/O (PTU) - 2 N/C + 2 N/O (PTL)
    • Housing: Full stainless steel 316
    • Cable Colour: Silver
    • Status LED: No
    • Operating temperature: (tamb) -20ºC to +60ºC.
    • IP rating: IP67 and IP69K (IEC/EN 60529)
    • MTTFd: > 100 years
    • B10d: 5,000,000
    • Explosion proof: Ex-Zone 1 / 21 / 2 / 22 (Ex II 2 G/D)
    • Connection: Self wireable
    • Operation: Power to lock or Power to unlock
    • Retention force: 10,000N
    • Mech life cycle: 1,000,000
    • Max. switch current: 3A
    • Override key: Yes
