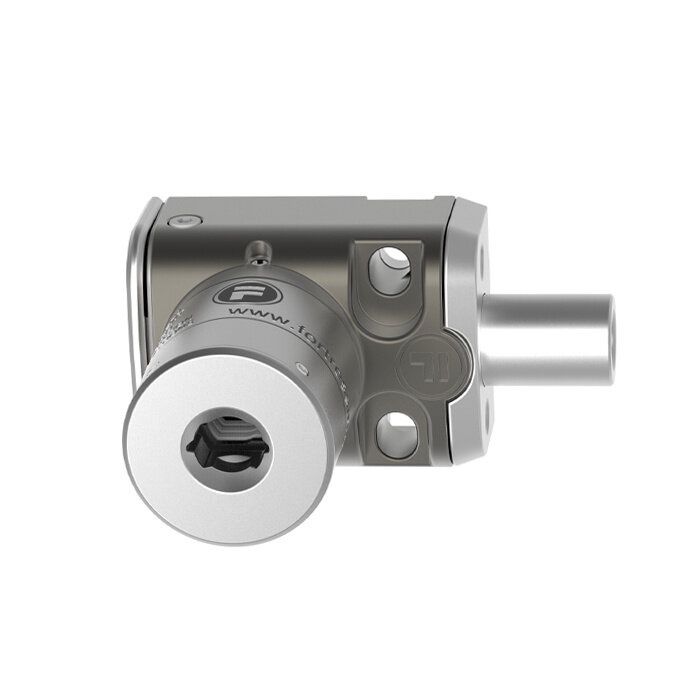

Coded bolt lock
Image 1 / 3
€321,00
(€388,41 Incl. tax)
- Article code BM1-1-0-CLIN-A-006-022
-
Description
- Suitable for locking isolation switches or valves in open or closed position.
- The standard sequence is: Bolt shot = Key free.
- Zamac (zinc aluminium alloy) body with stainless steel head and bolt.

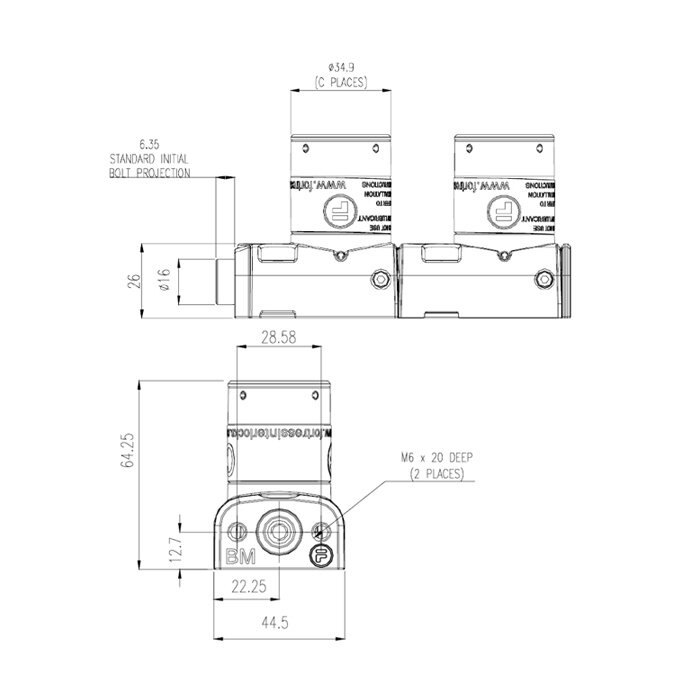

- Bolt diameter: 16mm.
- Bolt c/w threaded wire.
- Door lock is suitable for use in Ex zones 1, 2, 21 and 22 (Ex II GD d IIB T6/5/4).
- RVS veerbelaste stofkappen optioneel verkrijgbaar.
- 200,000 unique key codes available.
* Free of charge laser engraving on key and lock.
Matching engravings result in identical key code.These products have new article numbers, previously these products had the following article numbers:
BM1-CLIN-A
BM1-CLIS-A
BM1-CLIN-A-CLK-SUS
BM1-CLIS-A-CLK-SUS
-
Specifications
Type: Bolt lock Series: mGard CE-mark: Machinery Directive 2006/95/EG UL: UL 508 Industrial control equipment Operating voltage: - Solenoid voltage: - Contact options: - Housing: Zamac and Stainless Steel Color: Dark grey Status LED: - Operating temperature: -10°C to +80 °C IP rating: - MTTFd: > 100 years B10d: 5.000.000 Explosion proof: Ex zones 1, 2, 21 and 22 (Ex II GD d IIB T6/5/4) Connection: - Operation: Bolt shot - Key free Retention force: - Mech life cycle: 1,000,000 Max. switch current: - Override key: - -
