Art: DMSK1-0-1-LCSS-H-LE

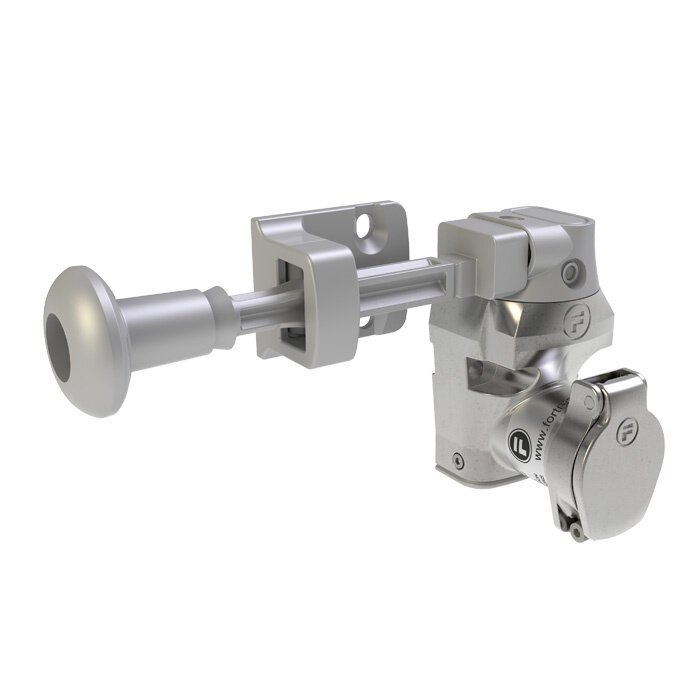

Fortress InterlocksCoded stainless steel door interlock with handle actuator PLe
Show all:
Trapped Key Interlocks,Door Locks
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Actuator operated safety interlock switch for use in machine guarding applications.

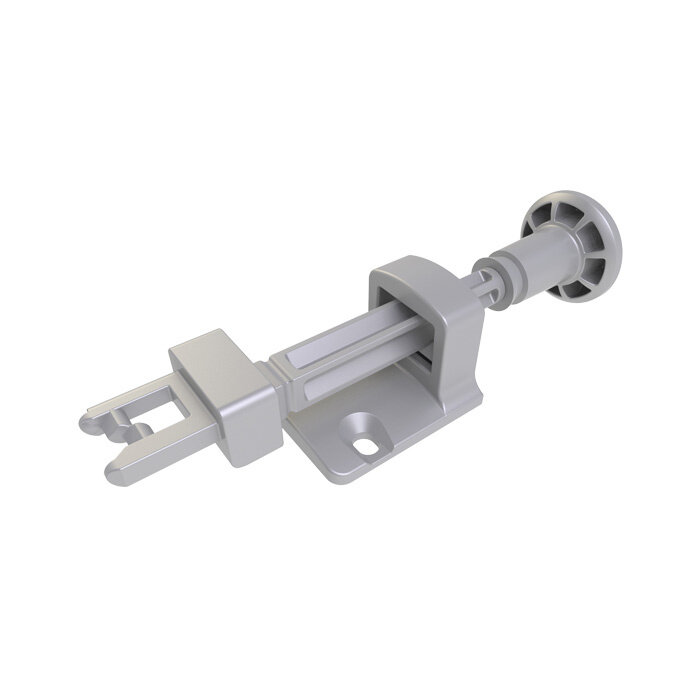

- Handle operated stainless steel actuator.
- In combination with a safety guard monitor and key switch for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061 (TüV certified).
- The standard sequence is: Key trapped - Door unlocked.
- Head can be rotated in position of 90°.
- Door lock is suitable for use in Ex zones 1, 2, 21 and 22 (Ex II GD d IIB T6/5/4).
- DM-H actuator with +/- 6mm vertical missalignment.
- 7,500N retention force (Fmax.)
- Full stainless steel 316 body, actuator and head.
- Including stainless steel spring loaded dustcover.
- 200,000 unique key codes available.
* Free of charge laser engraving on key and lock.
Matching engravings result in identical key code.
![]() | ![]() | ![]() |
Specifications
- Brand: Fortress Interlocks
- Article number: DMSK1-0-1-LCSS-H-LE
- Type: Door Interlock
- Series: mGard
- CE-mark: Machinery Directive 2006/95/EG
- UL: UL 508 Industrial control equipment
- Operating voltage: -
- Solenoid voltage: -
- Contact options: -
- Housing: Stainless Steel 316
- Cable Colour: Silver
- Status LED: -
- Operating temperature: -10°C to +80 °C
- IP rating: -
- MTTFd: > 100 years
- B10d: 5.000.000
- Explosion proof: Ex II GD d IIB T6/5/4
- Connection: -
- Operation: Key Trapped - Power on
- Retention force: 7,500N
- Mech life cycle: 1,000,000
- Max. switch current: -
- Override key: -
