Door handle EH

0 reviews

in stock

Delivery time 2 weeks

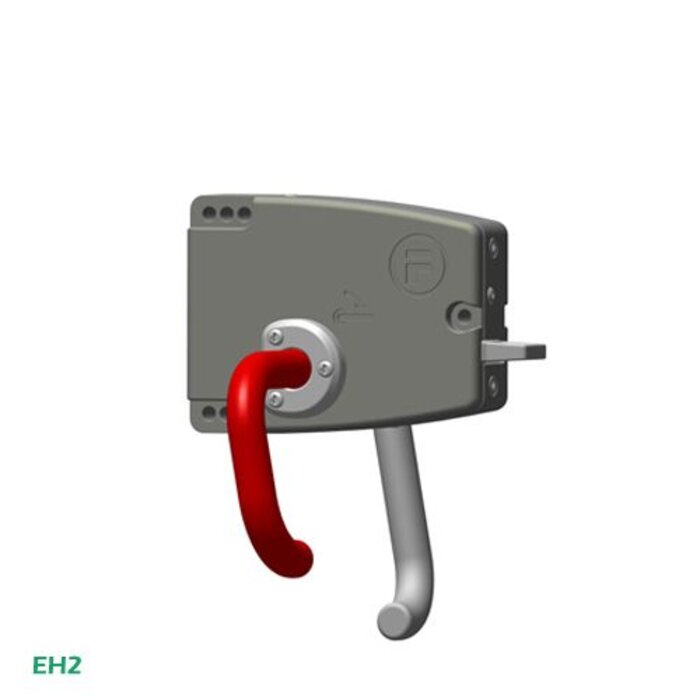

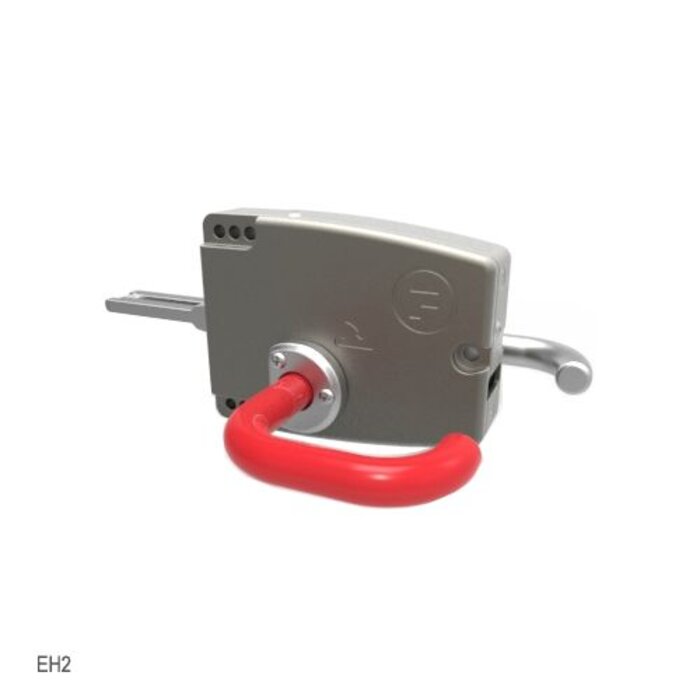

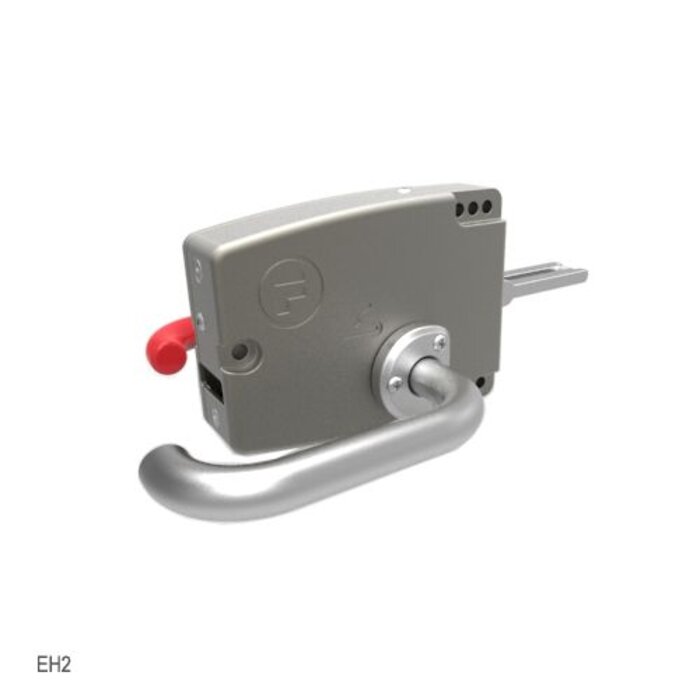

Door handle with internal release for T6 head module.

Article code EH2

€227,00

(€274,67 Incl. tax)

Article code EH2

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description

For use with amGardpro and amGard series switches.

Allows for guard misalignment ( +/- 12mm).

Built in lock-out facility to accomodate max. 4 padlocks (max. 8mm diameter).

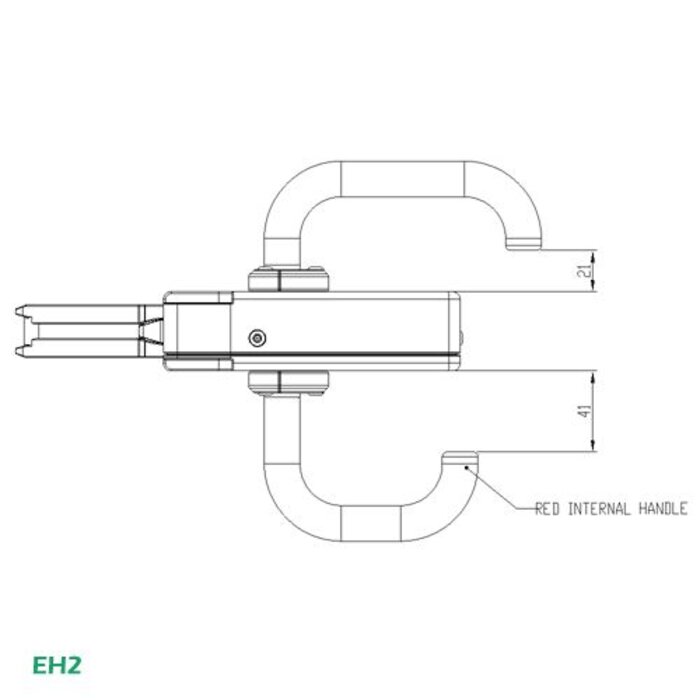

With red internal release handle which only allows you to open the door (not close it).

Extremely robust, max. retention force 10,000 N.

Article code amGard Classic: EHML / EHMR

Specifications

Type:	-
Series:	amGard Pro
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	-
Solenoid voltage:	-
Contact options:	-
Housing:	Stainless steel and Zinc alloy
Color:	Silver
Status LED:	-
Operating temperature:	-5°C to +80 °C
IP rating:	-
MTTFd:	-
B10d:	-
Explosion proof:	Yes
Connection:	-
Operation:	-
Retention force:	10,000N
Mech life cycle:	1,000,000
Max. switch current:	-
Override key:	-
