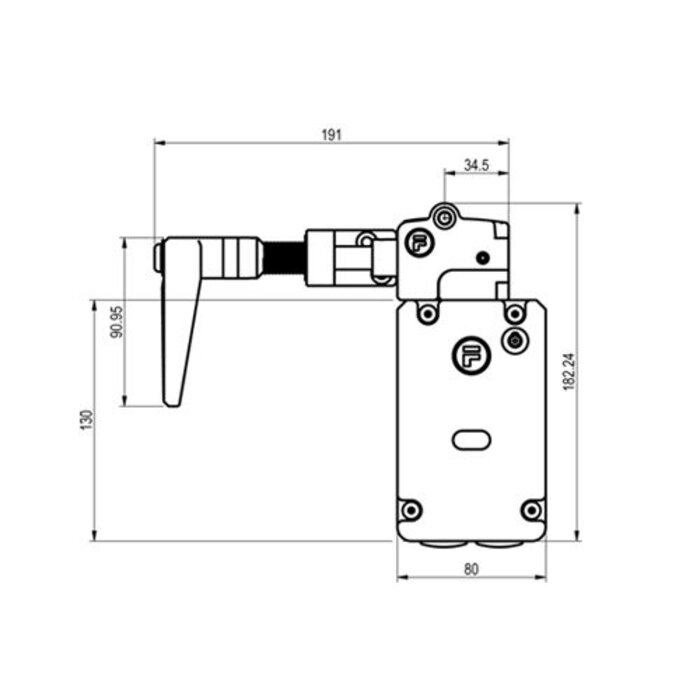

Fortress InterlocksExtreme robust handle operated aluminium safety interlock switch PLe
Handle operated solenoid safety interlock switch for use in machine guarding applications.
For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is required (e.g. run-on movements).
Allows for guard misalignment.
Operating handle can be rotated in 45º increments.
Extremely robust, max. retention force 10,000 N.
Suitable for environments with dust, vibration and debris.
Fully sealed to IP67.
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Only one safety switch needed to comply with PLe per EN ISO 13849-1.
4 position fixing at 90º increments.
Wiring compartment.
Article code amGard Classic: AMLOK024024 / AMLOK110110 / AMLOK230230
| MA2M6SL411 | power to unlock | left hinged door |
| MA4M6SL411 | power to unlock | right hinged door |
| MA2M6SL461 | power to lock | left hinged door |
| MA2M6SL461 | power to lock | right hinged door |
- Brand: Fortress Interlocks
- Article number: MA2M6SL411
- Type: Solenoid interlocked
- Series: amGard Pro
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC, 110V AC or 230V AC
- Solenoid voltage: 24V AC/DC, 110V AC or 230V AC
- Contact options: 4 N/C + 2 N/O (PTU) - 2 N/C + 2 N/O (PTL)
- Housing: Powdercoated steel and stainless steel
- Cable Colour: Red, black and silver
- Status LED: Yes (2)
- Operating temperature: -5°C to +40 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 years
- B10d: 5,000,000
- Explosion proof: No
- Connection: Self wireable
- Operation: Power to lock or Power to unlock
- Retention force: 10,000N
- Mech life cycle: 1,000,000
- Max. switch current: 3A
- Override key: Yes
