Fortress InterlocksNon-contact magnetically coded safety switch NCS

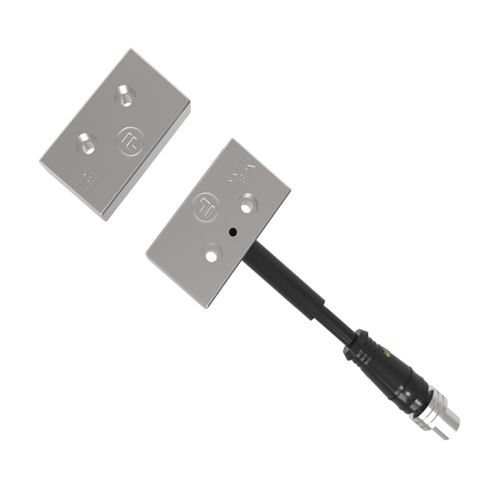

Non-contact magnetically coded stainless steel safety switch for use in machine guarding applications.
For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is not required.
Tamper resistant coded magnet.
Can be used as a coded interlock in accordance with EN14119
Status LED for simple diagnostics.
Tolerant to shock and vibration,
Easy to mount.

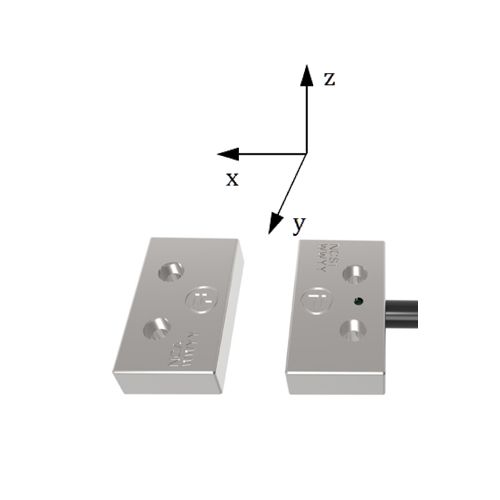

Tolerant to misalignment.
Full 316 grade stainless steel.
Both switch and actuator are fully sealed to IP69K.
Suitable for use in harsh environments (easy to clean).
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
This product has new item numbers, previously known as:
NCS21A > NCS-21SSR-A
NCS51A > NCS-51SSR-A
NCS01A > NCS-01SSR-A
NCS11A > NCS-11SSR-A
- Brand: Fortress Interlocks
- Article number: NCS-21SSR-A
- Type: Non-contact magnetically coded
- Series: AmGard Non-contact
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V DC

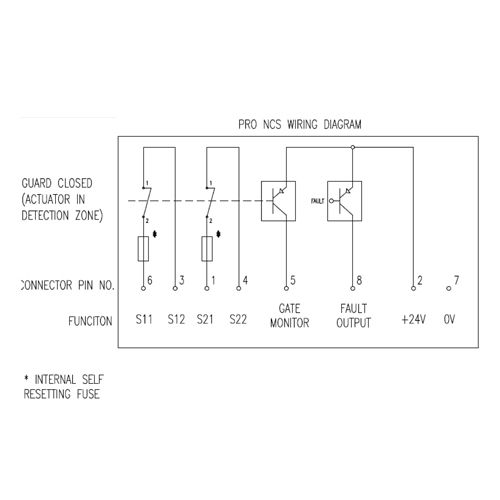

- Contact options: 2NO -1 NC , 2NO or 1NO - 1NC
- Housing: 316 grade stainless steel

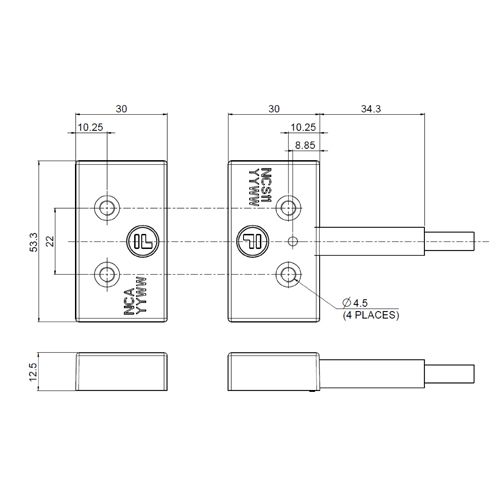

- Dimensions: 53 x 30 x 12.5mm
- Cable Colour: Silver
- Operating distance: 20mm ON - 24mm OFF
- Status LED: Yes
- Operating temperature: -5°C to +60 °C
- IP rating: IP69K (IEC/EN 60529)
- MTTFd: > 100 Years
- B10d: 2,000,000
- Explosion proof: No
- Connection: Pre-wired cable or QD
