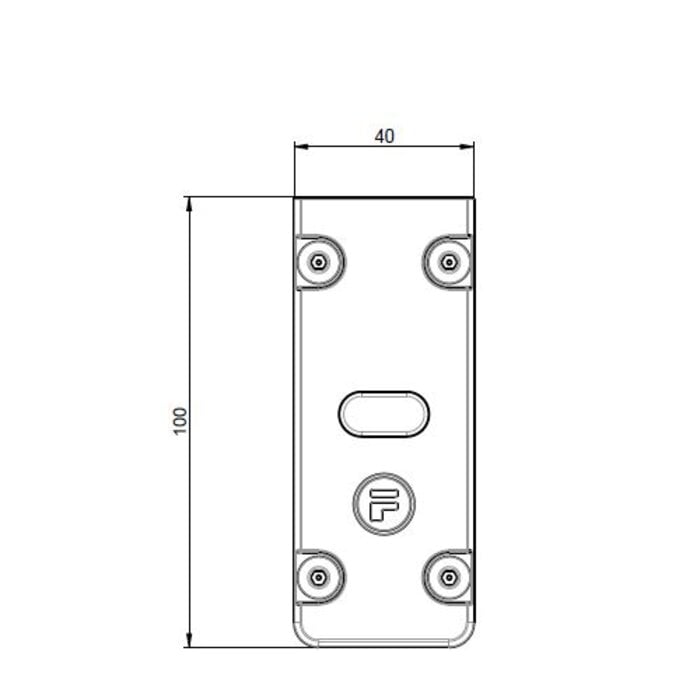

Safety interlock switch

0 reviews

in stock

Delivery time 2 weeks

Safety interlock switch (just the switch body).

Article code ST401

€186,00

(€225,06 Incl. tax)

Article code ST401

Operating voltage:

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description

Safety interlock switch for use in machine guarding applications.

For monitoring the position of sliding, hinged and removable protective doors.

Suitable for applications where door locking is not required (e.g. without run-on movements).

To be combined with head module M6 or T6.

Fully sealed to IP67.

In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Only one unit needed to comply with PLe per EN ISO 13849-1.

Article code amGard Classic: STOP024 / STOP110 / STOP230

Specifications

Type:	Safety interlock switch
Series:	amGard Pro
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC, 110V AC or 230V AC
Solenoid voltage:	-
Contact options:	2 N/C + 1 N/O
Housing:	Powdercoated steel
Color:	Red and black
Status LED:	Yes (2)
Operating temperature:	-5°C to +40 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 years
B10d:	5,000,000
Explosion proof:	No
Connection:	Self wireable
Operation:	-
Retention force:	-
Mech life cycle:	1,000,000
Max. switch current:	3A
Override key:	No
