Fortress Interlocks amGard Pro actuator operated steel safety switch and personal safety key (compulsory key removal) for very harsh environments and suitable for PLe / SIL3 applications.

Article code TA2T6EKL1ST401

€647,00

(€782,87 Incl. tax)

Article code TA2T6EKL1ST401

Door handing:

Stainless steel dustcover:

Key:

Buy 2 for €614,65 each and save 5%
Buy 5 for €582,30 each and save 10%

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description

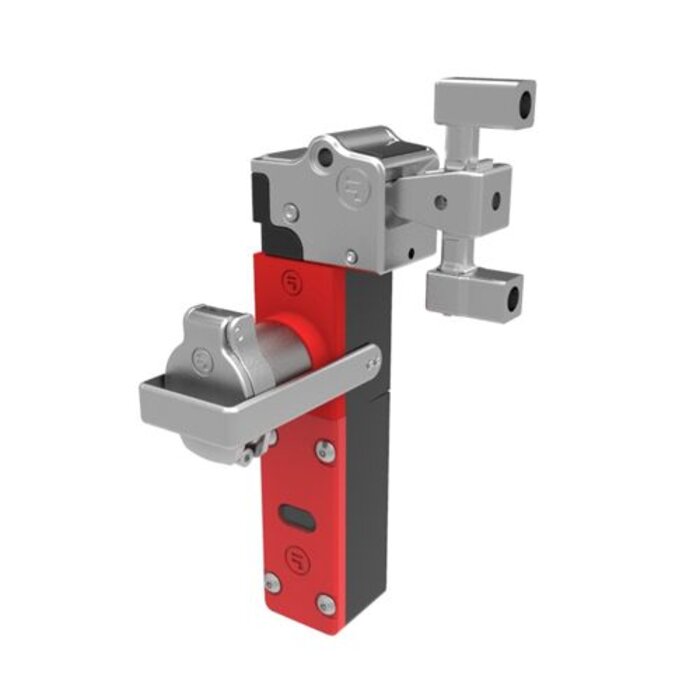

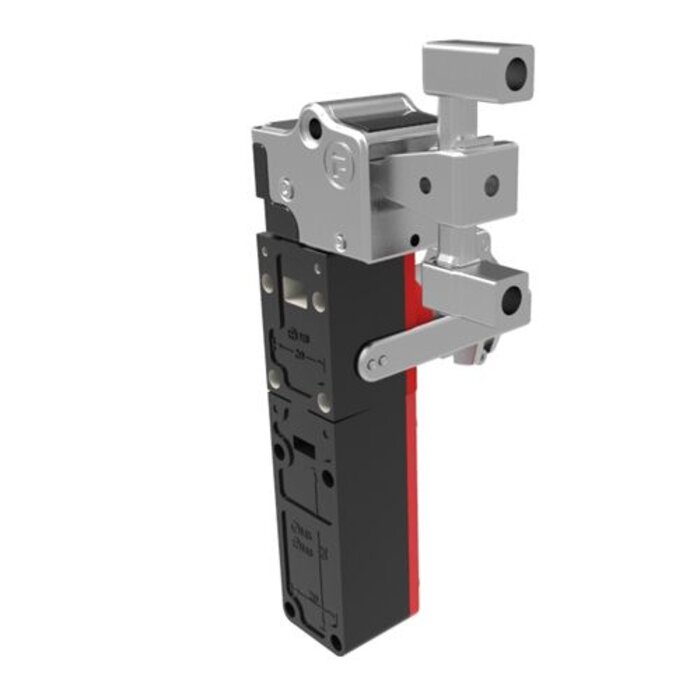

Actuator operated safety interlock switch for use in machine guarding applications.

For monitoring the position of sliding, hinged and removable protective doors.

Suitable for applications where door locking is not required (e.g. without run-on movements).

Allows for guard misalignment ( +/- 12mm).

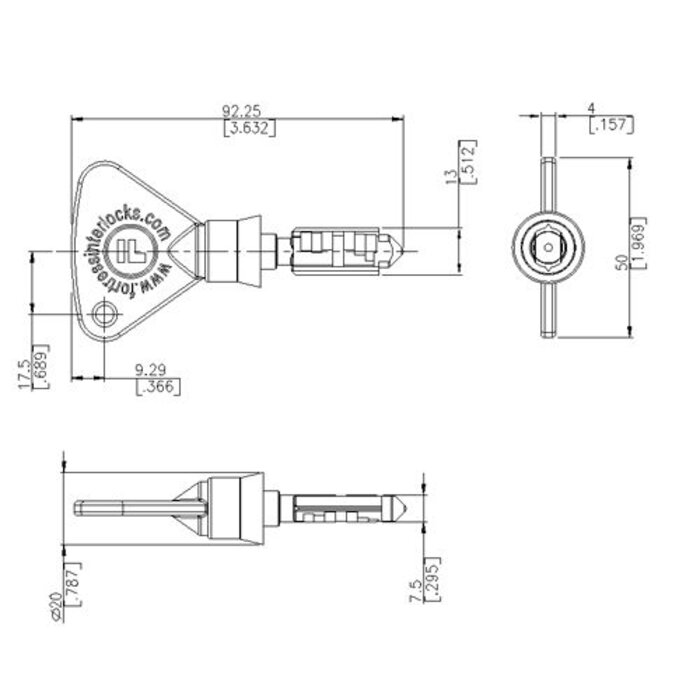

Switch is provided with a key adaptor with compulsory key removal to prevent employees getting trapped inside a guarded area / machine.

Extremely robust, max. retention force 10,000 N.

Fully sealed to IP67.

In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Only one unit needed to comply with PLe per EN ISO 13849-1.

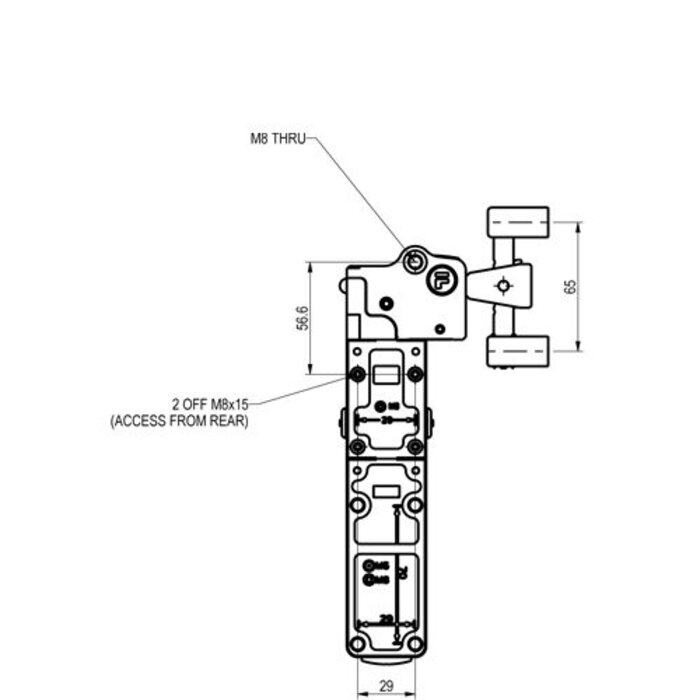

4 position fixing at 90º increments.

Wiring compartment.

Article code amGard Classic: ATE1STOP024CLIS / ATE1STOP110CLIS / ATE1STOP230CLIS

Specifications

Type:	Safety interlock switch
Series:	amGard Pro
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC, 110V AC or 230V AC
Solenoid voltage:	-

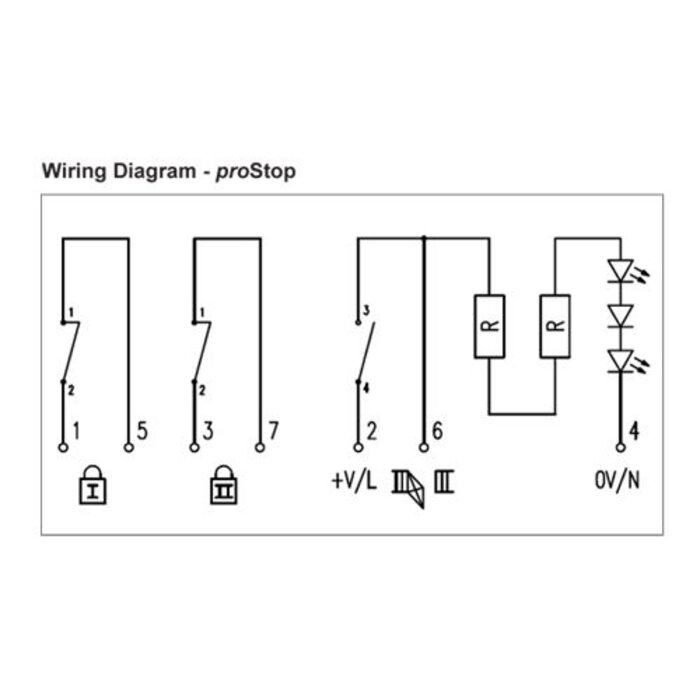

Contact options:	2 N/C + 1 N/O
Housing:	Powdercoated steel and stainless steel
Color:	Red, black and silver
Status LED:	Yes (2)
Operating temperature:	-5°C to +40 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 years
B10d:	5,000,000
Explosion proof:	No
Connection:	Self wireable
Operation:	-
Retention force:	10,000N
Mech life cycle:	1,000,000
Max. switch current:	3A
Override key:	No
