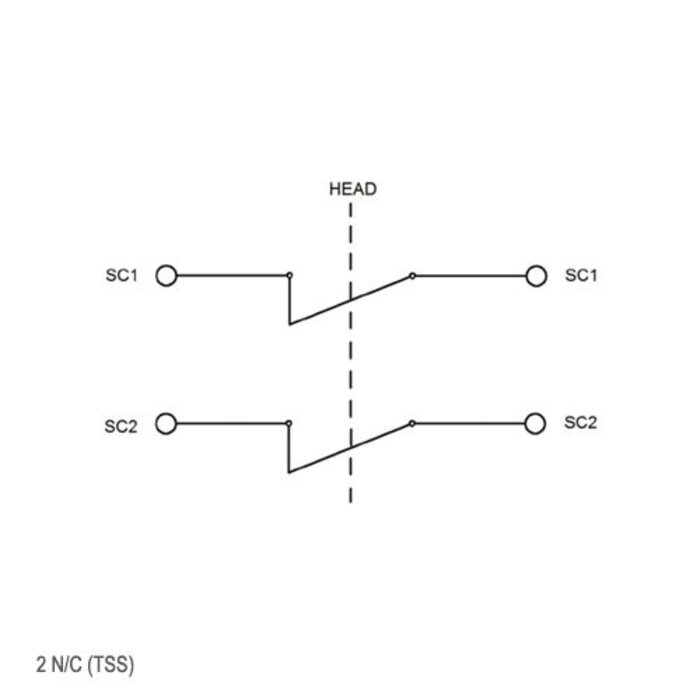

Contact options: 2 N/C, Cable: No
- Safety Switches
- Safety Interlocks
- Safety Sensors
- Safety Monitors
- Trapped Key Interlocks
- Machine Guarding
- Interlock Blocking Device
- Laser Scanners
- Radar Safety Systems
- Light Curtains
- Process Interlocks
- Enabling Switches
- GateBoxes
- Spare Parts
- Cables
- Brands
- Contact
Machinesafety-shop benefits
-
-
All our products are TüV certified
-
Worldwide shipment with UPS
-
Free shipping from €250
Recently viewed
![]() |
Safety switch aluminium PLd with standard actuator THFSSQ1
View product
|
Actuator operated aluminium safety switch PLd




Actuator operated aluminium safety switch PLd

-
Description
Actuator operated safety interlock switch for use in machine guarding applications.
For monitoring the position of sliding, hinged and removable protective doors.
4 position fixing at 90º increments.
Suitable for applications where door locking is not required (e.g. without run-on movements).
Fully sealed to IP65.
In combination with a safety guard monitor for protection up to safety level PLd per EN ISO 13849-1 or up to SIL 2 per EN 62061.
Painted die-cast aluminium enclosure.
Available with M12 (5 pin or 8 pin) quick disconnector. -
Specifications
Type: Safety interlock switch Series: tGard CE-mark: Machinery Directive 2006/42/EC UL: UL 508 Industrial control equipment Operating voltage: 24V DC Solenoid voltage: - Contact options: 2 N/C or 2 N/C + 1 N/O Housing: Painted die-cast aluminium Color: Dark grey Status LED: Yes (only on 2 N/C + 1 N/O) Operating temperature: -5°C to +40°C IP rating: IP65 MTTFd: - B10d: 5,000,000 Explosion proof: No Connection: Wiring compartment or quick disconnector Operation: - Retention force: 2,500N Mech life cycle: 1,000,000 Max. switch current: 0.5A Override key: - -
Actuator operated safety interlock switch for use in machine guarding applications.
For monitoring the position of sliding, hinged and removable protective doors.
4 position fixing at 90º increments.
Suitable for applications where door locking is not required (e.g. without run-on movements).
Fully sealed to IP65.
In combination with a safety guard monitor for protection up to safety level PLd per EN ISO 13849-1 or up to SIL 2 per EN 62061.
Painted die-cast aluminium enclosure.
Available with M12 (5 pin or 8 pin) quick disconnector.
Type: | Safety interlock switch |
Series: | tGard |
CE-mark: | Machinery Directive 2006/42/EC |
UL: | UL 508 Industrial control equipment |
Operating voltage: | 24V DC |
Solenoid voltage: | - |

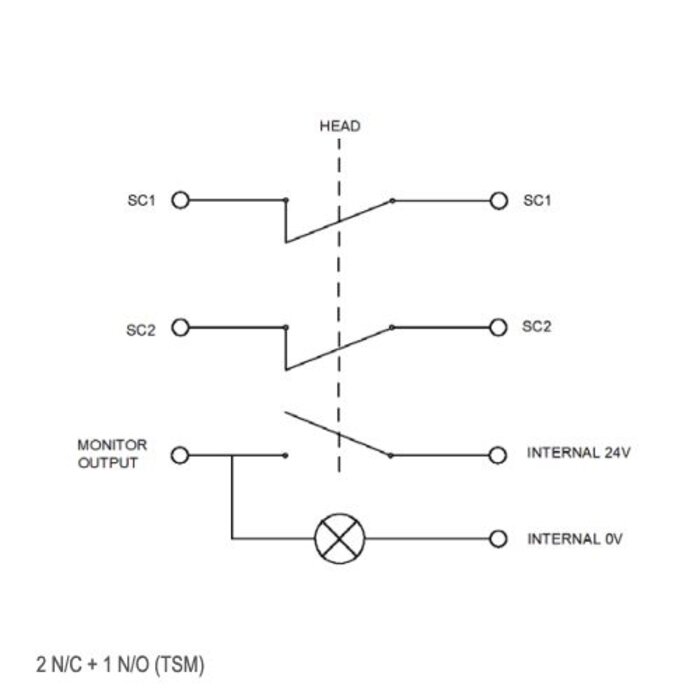

Contact options: | 2 N/C or 2 N/C + 1 N/O |
Housing: | Painted die-cast aluminium |
Color: | Dark grey |
Status LED: | Yes (only on 2 N/C + 1 N/O) |
Operating temperature: | -5°C to +40°C |
IP rating: | IP65 |
MTTFd: | - |
B10d: | 5,000,000 |
Explosion proof: | No |
Connection: | Wiring compartment or quick disconnector |
Operation: | - |
Retention force: | 2,500N |
Mech life cycle: | 1,000,000 |
Max. switch current: | 0.5A |
Override key: | - |
