Safety interlock aluminium PLd with request and reset THHSMEUP7P6Q8
View product
|

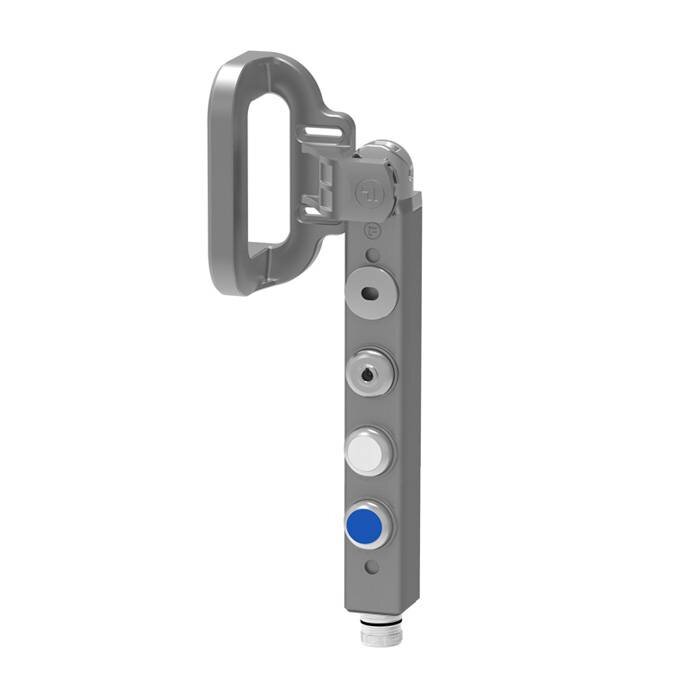

Handle operated aluminium safety interlock switch PLd and request + reset
Handle operated aluminium safety interlock switch PLd and request + reset

-
Description
Handle operated solenoid controlled safety interlock switch for use in machine guarding applications.
Including 2 illuminated push buttons (white and blue) for access request and reset.
For monitoring the position of sliding, hinged and removable protective doors.
4 position fixing at 90º increments.
Suitable for applications where door locking is required (e.g. run-on movements).
Fully sealed to IP65.
2NC (safety contacts) and 2NO (monitoring contacts).
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Painted die-cast aluminium enclosure.
19pin M23 quick disconnector.
Also other actuators available (TAS, TAH, TAF) -
Specifications
Type: Solenoid interlock Series: tGard CE-mark: Machinery Directive 2006/42/EC UL: UL 508 Industrial control equipment Operating voltage: 24V DC Solenoid voltage: 24V DC Contact options: 2 N/C + 2 N/O Housing: Painted die-cast aluminium Color: Dark grey Status LED: Yes (2) Operating temperature: -5°C to +40°C IP rating: IP65 MTTFd: - B10d: 5,000,000 Explosion proof: No Connection: 19 pin M23 Operation: Power to lock or Power to unlock Retention force: 2,500N Mech life cycle: 1,000,000 Max. switch current: 0.5A Override key: Yes (power to unlock) -
Handle operated solenoid controlled safety interlock switch for use in machine guarding applications.
Including 2 illuminated push buttons (white and blue) for access request and reset.
For monitoring the position of sliding, hinged and removable protective doors.
4 position fixing at 90º increments.
Suitable for applications where door locking is required (e.g. run-on movements).
Fully sealed to IP65.
2NC (safety contacts) and 2NO (monitoring contacts).
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Painted die-cast aluminium enclosure.
19pin M23 quick disconnector.
Also other actuators available (TAS, TAH, TAF)
Type: | Solenoid interlock |
Series: | tGard |
CE-mark: | Machinery Directive 2006/42/EC |
UL: | UL 508 Industrial control equipment |
Operating voltage: | 24V DC |
Solenoid voltage: | 24V DC |
Contact options: | 2 N/C + 2 N/O |
Housing: | Painted die-cast aluminium |
Color: | Dark grey |
Status LED: | Yes (2) |
Operating temperature: | -5°C to +40°C |
IP rating: | IP65 |
MTTFd: | - |
B10d: | 5,000,000 |
Explosion proof: | No |
Connection: | 19 pin M23 |
Operation: | Power to lock or Power to unlock |
Retention force: | 2,500N |
Mech life cycle: | 1,000,000 |
Max. switch current: | 0.5A |
Override key: | Yes (power to unlock) |
