Handle operated aluminium safety interlock switch and personal safety key PLd

0 reviews

Delivery time 2 weeks

Handle operated aluminium safety interlock switch and personal safety key PLd

Enlarge image

Image 1 / 3

Handle operated aluminium safety interlock switch and personal safety key PLd

0 reviews

in stock

Delivery time 2 weeks

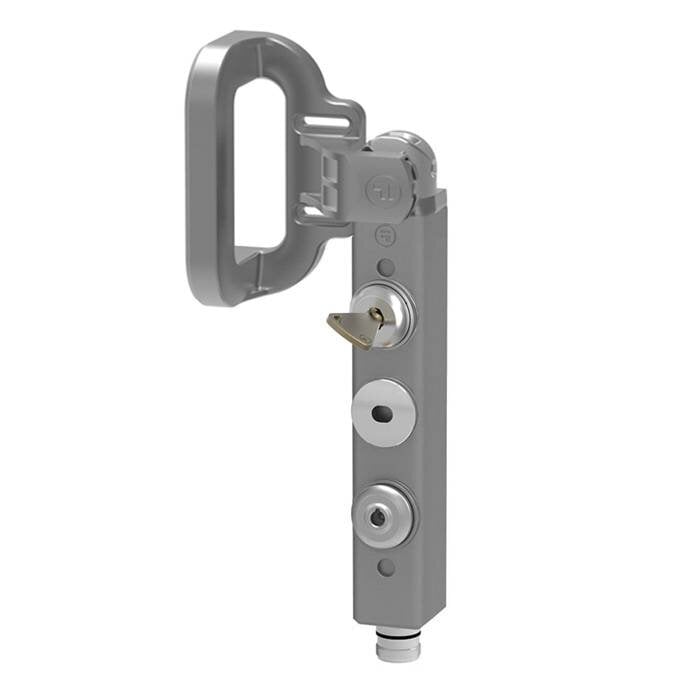

Fortress Interlocks tGard handle operated aluminium safety switch with guard locking and safety key suitable for PLd / SIL2 applications.

Article code THHSNSMEUQ5

€480,00

(€580,80 Incl. tax)

Article code THHSNSMEUQ5

Cable:

Operation:

Key:

Door type:

Buy 2 for €456,00 each and save 5%
Buy 5 for €432,00 each and save 10%

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description
- Handle operated solenoid controlled safety interlock switch for use in machine guarding applications.
- Switch is provided with a safety key adaptor to prevent employees getting trapped inside a guarded area / machine.
- For monitoring the position of sliding, hinged and removable protective doors.

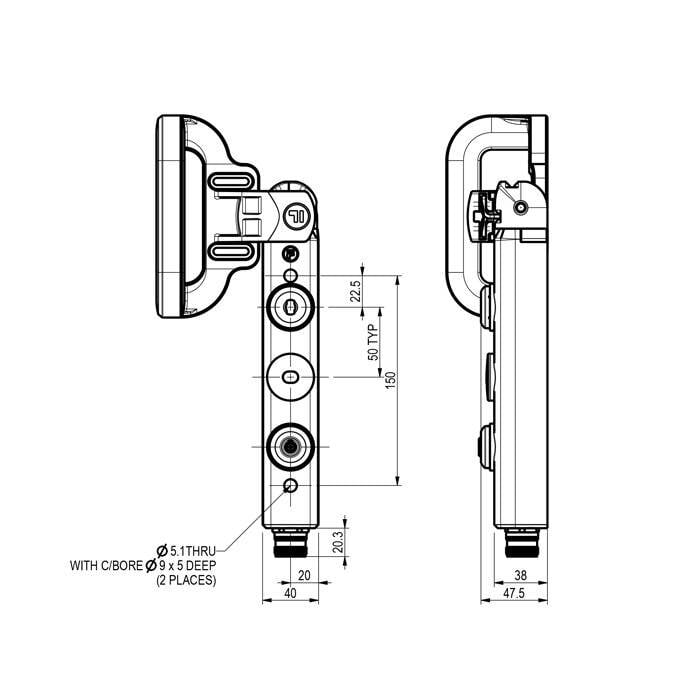

- 4 position fixing at 90º increments.
- Suitable for applications where door locking is required (e.g. run-on movements).
- Fully sealed to IP65.

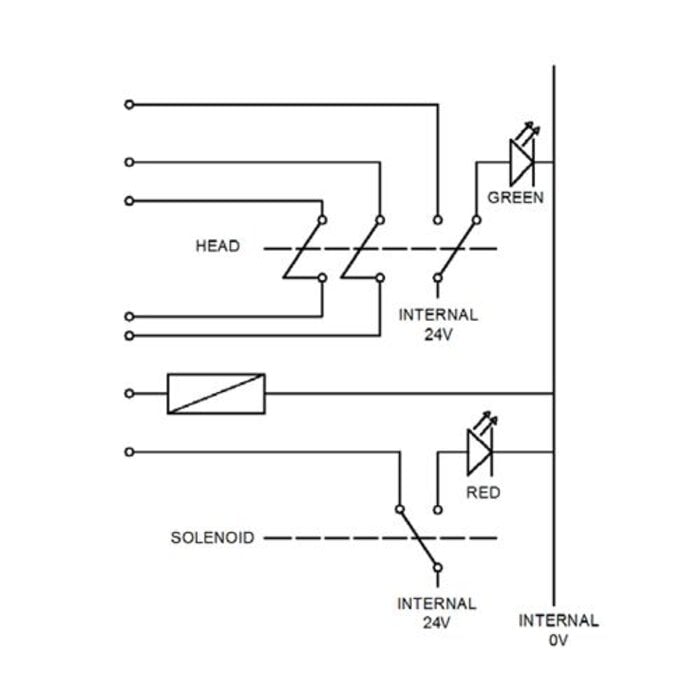

- 2NC (safety contacts) and 2NO (monitoring contacts).
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- Painted die-cast aluminium enclosure.
- 12pin M23 quick disconnector.
- Also other actuators available (TAS, TAH, TEN).

Specifications

Type:	Solenoid interlock
Series:	tGard
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V DC
Solenoid voltage:	24V DC
Contact options:	2 N/C + 2 N/O
Housing:	Painted die-cast aluminium
Color:	Dark grey
Status LED:	Yes (2)
Operating temperature:	-5°C to +40°C
IP rating:	IP65
MTTFd:	-
B10d:	5,000,000
Explosion proof:	No
Connection:	Wiring compartment or quick disconnector
Operation:	Power to lock or Power to unlock
Retention force:	2,500N
Mech life cycle:	1,000,000
Max. switch current:	0.5A
Override key:	Yes (power to unlock)
