Coded key exchang box with 6 locks
Dustcover: No, Key: No
€1.346,00
(€1.628,66 Incl. btw)
Prefer a quote first? Click on "request quote" in your shopping cart
Coded key exchang box with 6 locks
Image 1 / 3
€1.346,00
(€1.628,66 Incl. tax)
- Article code XM6-1-5-CLIN
-
Description

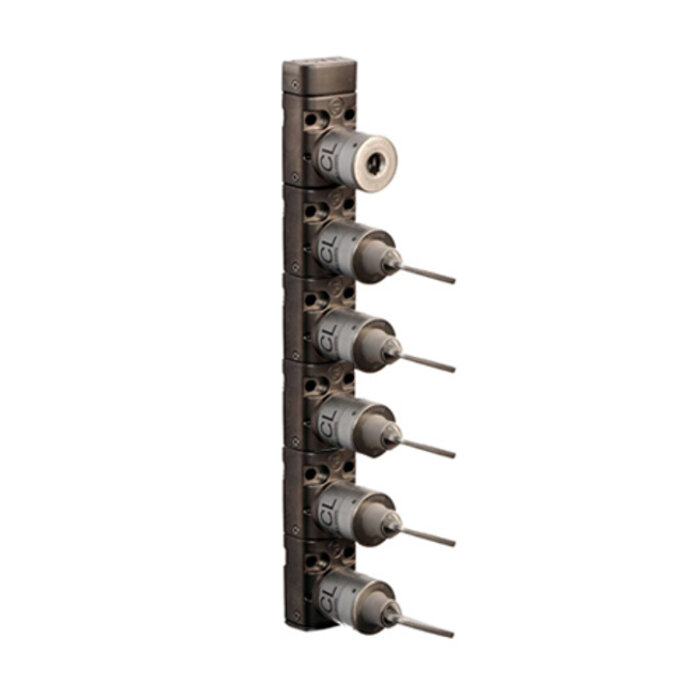

- Metal key exchange box with 6 locks.
- Extend up to maximum 10 lock portions into one unit, for safely accessing 9 doors or hatches simultaneously (>6 lock portions not available on webshop).
- Modular arrangement.
- The standard sequence is: 1st key trapped = 2nd + 3rd + 4th + 5th + 6th key released.
- Different sequences available.
- Door lock is suitable for use in Ex zones 1, 2, 21 and 22 (Ex II GD d IIB T6/5/4).
- Stainless steel spring loaded dustcover available as option.
- 200,000 unique key codes available.
* Free of charge laser engraving on key and lock.
Matching engravings result in identical key code.
These products have new article numbers, previously these products had the following article numbers:
XM6-CLIN
XM6-CLIN-5CLK-SUS
XM6-CLIS
XM6-CLIS-5CLK-SUS
-
Specifications
Type: Key Exchange Box Series: mGard CE-mark: Machinery Directive 2006/95/EG UL: UL 508 Industrial control equipment Operating voltage: - Solenoid voltage: - Contact options: - Housing: - Color: Dark grey Status LED: - Operating temperature: -10°C to +80 °C IP rating: IP65 (IEC/EN 60529) MTTFd: > 100 years B10d: 5.000.000 Explosion proof: Ex zones 1, 2, 21 and 22 (Ex II GD d IIB T6/5/4) Connection: - Operation: Key Trapped - Power on Retention force: - Mech life cycle: 1,000,000 Max. switch current: - Override key: Yes -
Metal key exchange box with 3 locks XM3
Coded steel key exchange box with 3 locks (1st key trapped = 2nd + 3rd key released).
More info
€0,00
(€822,80 Incl. tax)
