Digital I/O control unit C203A safety radar system
View product
|
Digital I/O control unit C203A safety radar system
in stock
Image 1 / 4




Digital I/O control unit C203A safety radar system

in stock
Control Unit for up to 6 Inxpect S101A or S201A radar sensor units.
-
Description

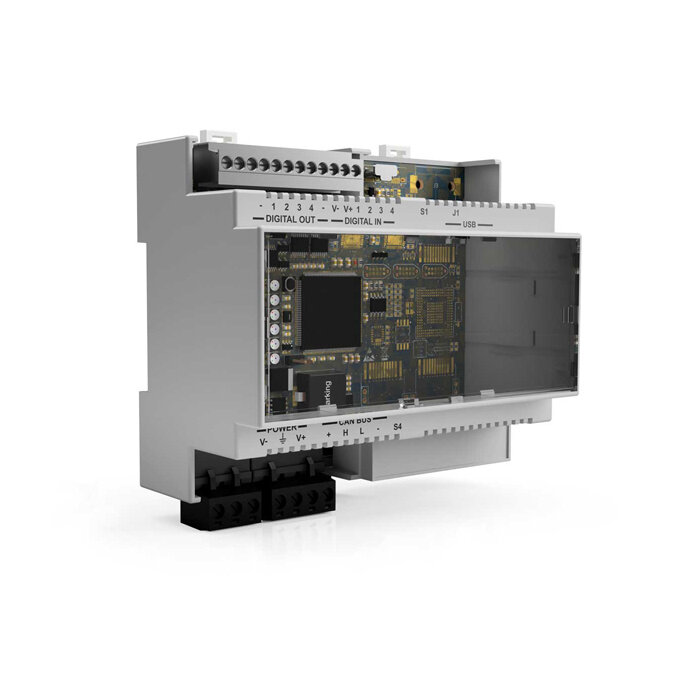

- Digital I/O Control unit for S101A and S201A radar sensors.
- The C203A was formerly known as the ISC-B02 controller
- The controller can connect up to six S101A or S201A sensors.
- Configure up to 32 separate zones.

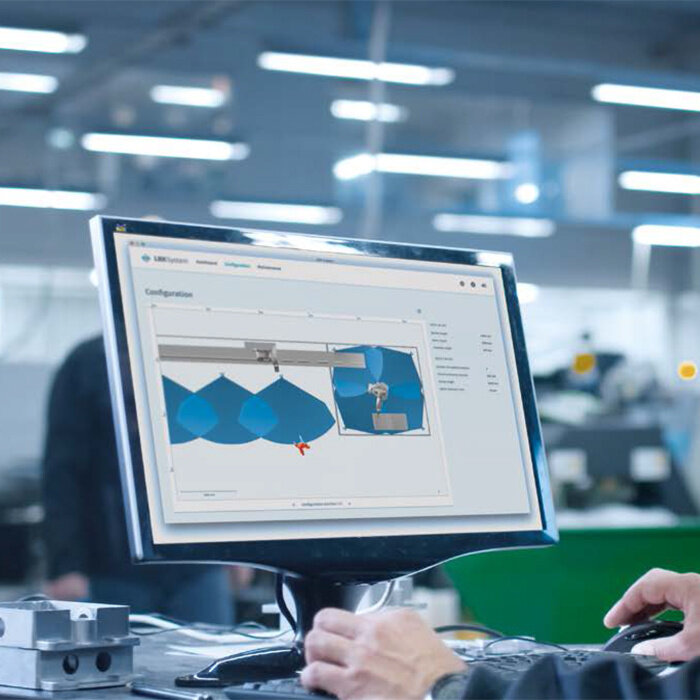

- Easy configuration with the Inxpect Safety PC application through USB cable connection or emote configuration and management protected by industry standard cyber-security protocols.
- Muting of max 2 groups of sensors possible
- Configure up to 4 safety zones from 0.5m up to 5m (depending ons sensor type).
- Configuration of sensitivity levels, safety functions, size of warning and dangerous areas, and the functionality of the controller’s I/O ports.
-

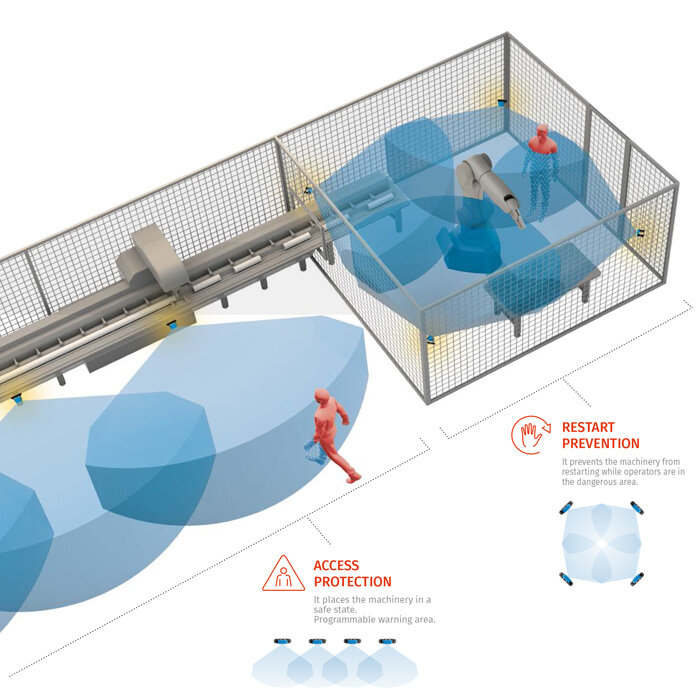

Muting Function allows to be configured to temporarily deactivate some sensors when they are not required to detect motion in the area.
- Including industrial housing for controller.

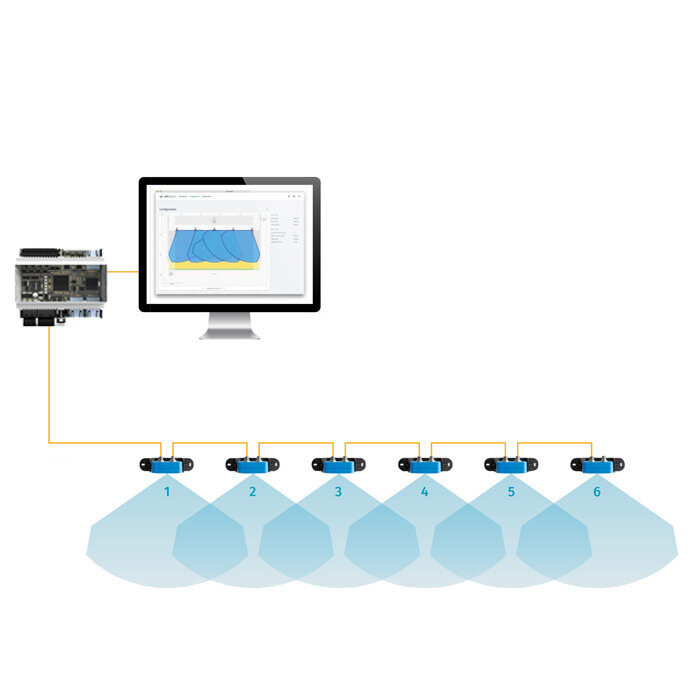

- The digital I/O radar system consists of the C203A control unit and up to six S101A or S201A sensors.
- The digital I/O radar system is suitable for protection up to safety level PLd Cat. 3 per EN ISO 13849-1 or up to SIL 2 per EN 62061.
-
Specifications
Type: Control unit radar system with digital I/O IP rating: IP20 (IEC/EN 60529) Housing: Optianl (composite) Color: - Detection angle: LBK-S01: Width 50° of 110°, height 15° of 30°, SBV-01: Wifth: 10-100°, Hieght 20° Dimensions: 90 x 106 x 58mm Protection range: SBV-01: min. 0.5 m - max. 5 m, LBK-S01 min. 1 m - max. 4m Operating temperature: -5°C to +40 °C Fixing: - Connection: CANopen Bandwith operational frequency: 60 GHz Operating voltage: 24 V dc (+10/-15%) Outputs: 2 dual channel OSSD-safety inputs en 4 auxillary outputs Inputs: 2 dual channel inputs -
- Digital I/O Control unit for S101A and S201A radar sensors.
- The C203A was formerly known as the ISC-B02 controller
- The controller can connect up to six S101A or S201A sensors.
- Configure up to 32 separate zones.
- Easy configuration with the Inxpect Safety PC application through USB cable connection or emote configuration and management protected by industry standard cyber-security protocols.
- Muting of max 2 groups of sensors possible
- Configure up to 4 safety zones from 0.5m up to 5m (depending ons sensor type).
- Configuration of sensitivity levels, safety functions, size of warning and dangerous areas, and the functionality of the controller’s I/O ports.
-
Muting Function allows to be configured to temporarily deactivate some sensors when they are not required to detect motion in the area.
- Including industrial housing for controller.
- The digital I/O radar system consists of the C203A control unit and up to six S101A or S201A sensors.
- The digital I/O radar system is suitable for protection up to safety level PLd Cat. 3 per EN ISO 13849-1 or up to SIL 2 per EN 62061.
Type: | Control unit radar system with digital I/O |
IP rating: | IP20 (IEC/EN 60529) |
Housing: | Optianl (composite) |
Color: | - |
Detection angle: | LBK-S01: Width 50° of 110°, height 15° of 30°, SBV-01: Wifth: 10-100°, Hieght 20° |
Dimensions: | 90 x 106 x 58mm |
Protection range: | SBV-01: min. 0.5 m - max. 5 m, LBK-S01 min. 1 m - max. 4m |
Operating temperature: | -5°C to +40 °C |
Fixing: | - |
Connection: | CANopen |
Bandwith operational frequency: | 60 GHz |
Operating voltage: | 24 V dc (+10/-15%) |
Outputs: | 2 dual channel OSSD-safety inputs en 4 auxillary outputs |
Inputs: | 2 dual channel inputs |
