Art: USP-08PVC25-12FAS-X-05M
Description

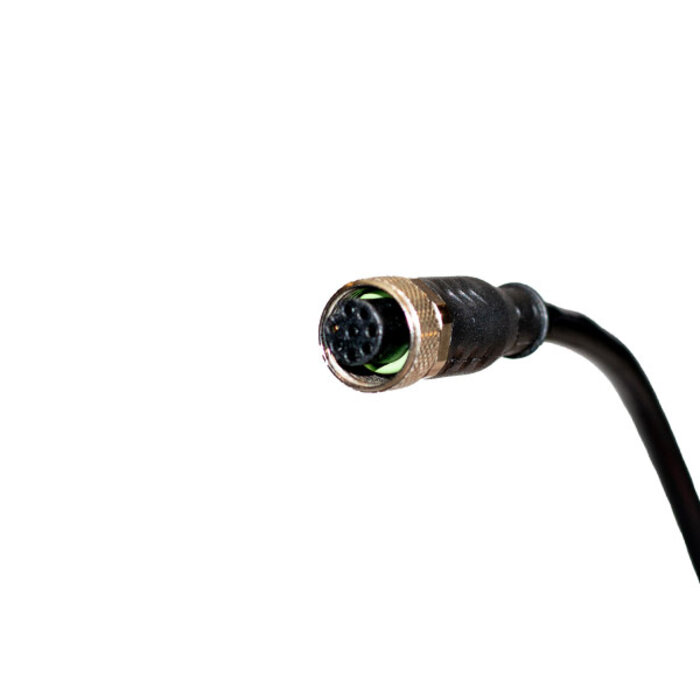

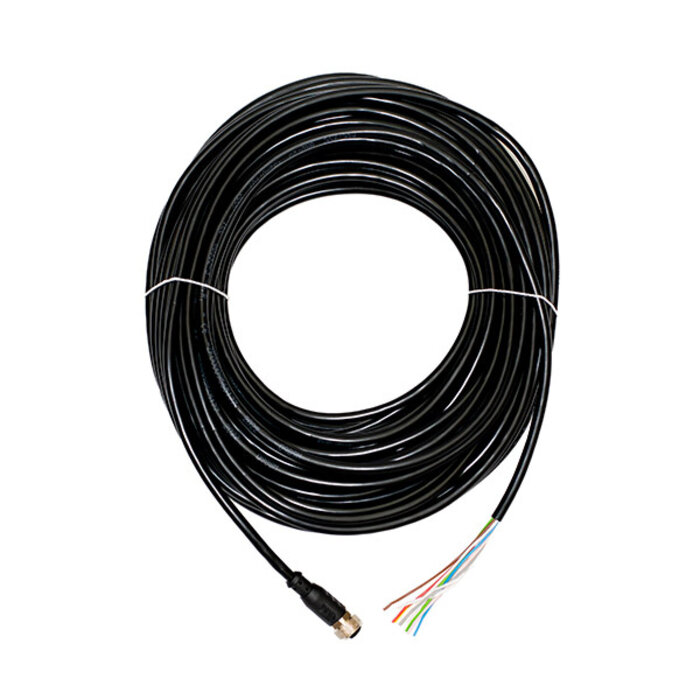

M12 8-pin straight female connector with PVC Cable
Cable
- 8-core
- 0,25mm2
- Cable material: PVC
- Colour: Black
- Length: available in 5 and 10 metres
Side 1
- M12
- 8-pin
- Female
- Straight (0°)
- A-Coded

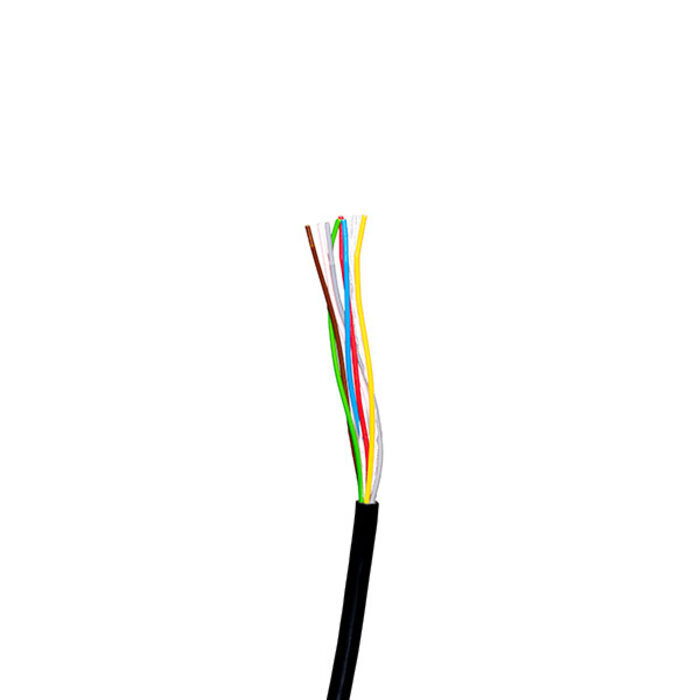

Side 2
- Open end
Specifications
- Brand: Unique Safety Products
- Article number: USP-08PVC25-12FAS-X-05M
- Connector side 1: M12, 8-pole
- Type Side 1: Straight (0°)
- Werkstoff der Kupplungsmutter: CuZn nikel plated
- Coding: A-coded
- Cable Material: PVC
- Cable length: 5m, 10m or 20m
- Cable Colour: Black
- identification cores: White, brown, green, yellow, grey, pink, blue, red
- Cross section: 0.25mm2
- IP value: IP67
- Minimum Service Temperature ° C: -25 °C
- Maximum Service Temperature ° C: +80 °C
- Rated Voltage: 30 V
- Rated Current: 2 A
- Insulation: ≥100MΩ (IEC60512)
- Contact resistance: ≤10mΩ
