Art: USP-12PVCAWG20-23F0S-X-05M
Description

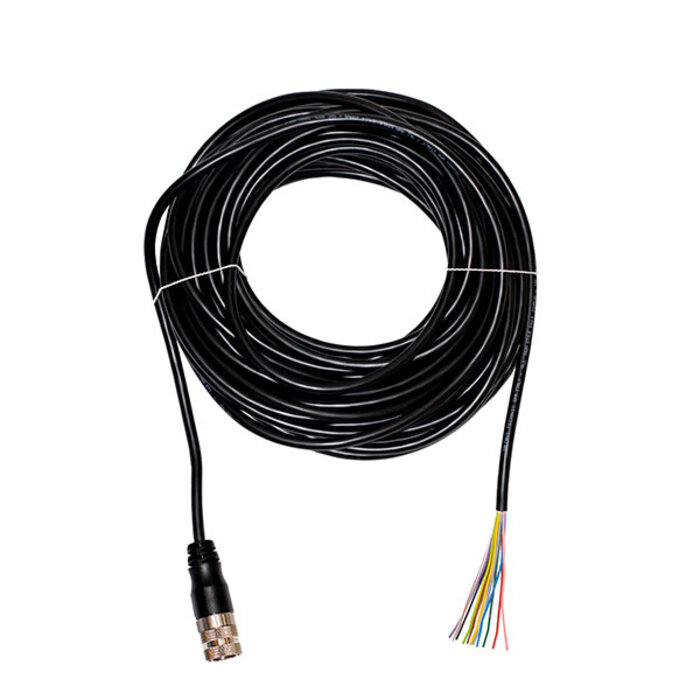

M23 12-pin straight female connector with PVC Cable

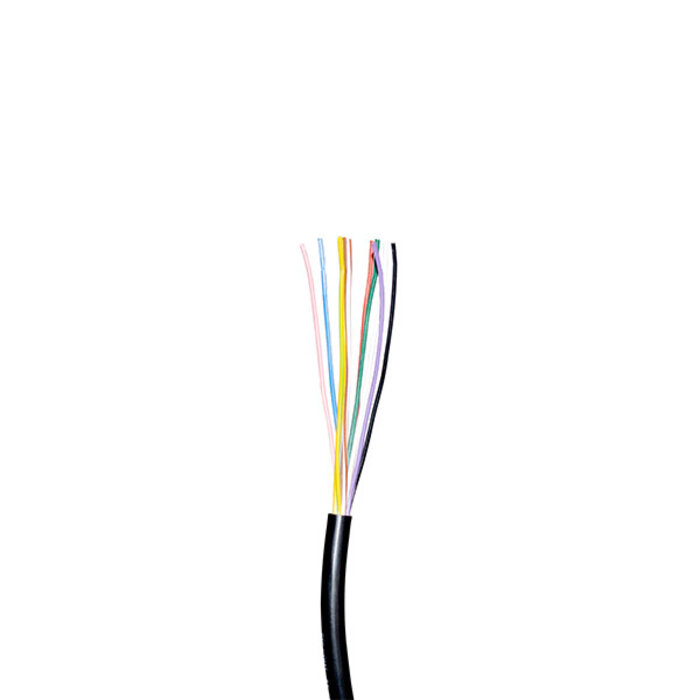

Cable
- 12-core
- awg20
- Cable material: PVC
- Colour: Black
- Length: available in 5, 10 and 20 metres

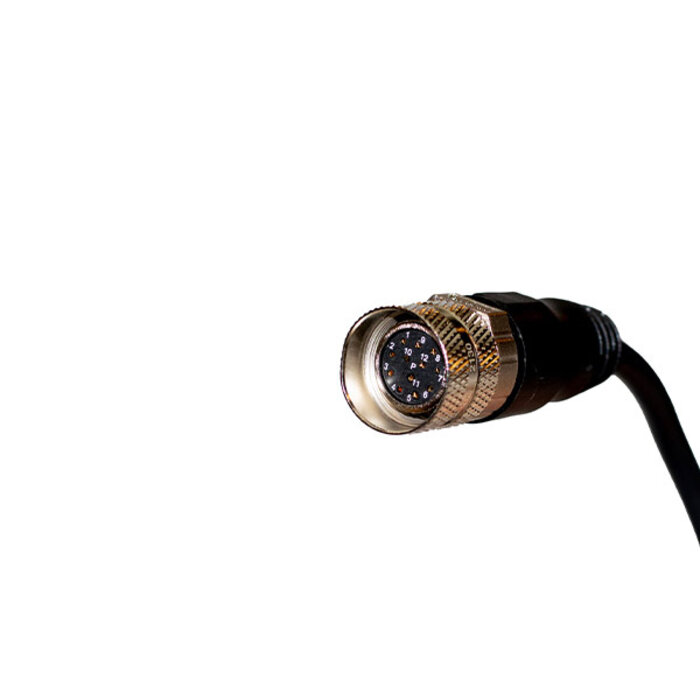

Side 1
- M23
- 12-pin
- Female
- Straight (0°)
- A-Coded
Side 2
- Open end
Specifications
- Brand: Unique Safety Products
- Article number: USP-12PVCAWG20-23F0S-X-05M

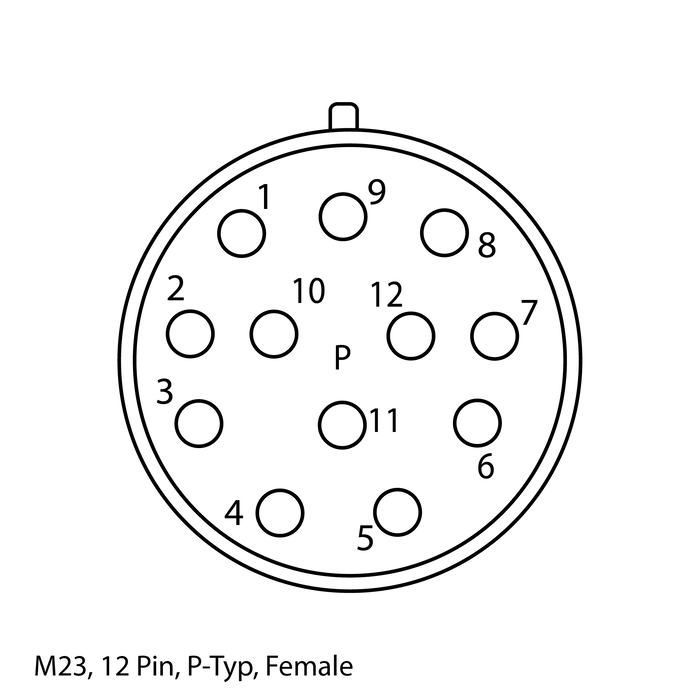

- Connector side 1: M23, 12-pole
- Type Side 1: Straight (0°)
- Werkstoff der Kupplungsmutter: Nickel-plated brass
- Coding: P type
- Cable Material: PVC
- Cable length: 5m, 10m of 20m
- Cable Colour: Black
- identification cores: Brown, brown-white, blue, white, green, yellow, grey, pink, red, black, violet, green/yellow
- Cross section: 0,25mm2
- IP value: IP67
- Minimum Service Temperature ° C: -20 °C
- Maximum Service Temperature ° C: +80 °C
- Rated Voltage: 160V AC/DC
- Rated Current: 10 A
- Insulation: ≥100MΩ (IEC60512)
- Contact resistance: ≤5mΩ
