Mechan ControlsNon-contact coded electronic safety switch DNK1
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Non-contact coded electronic safety switch for use in machine guarding applications.

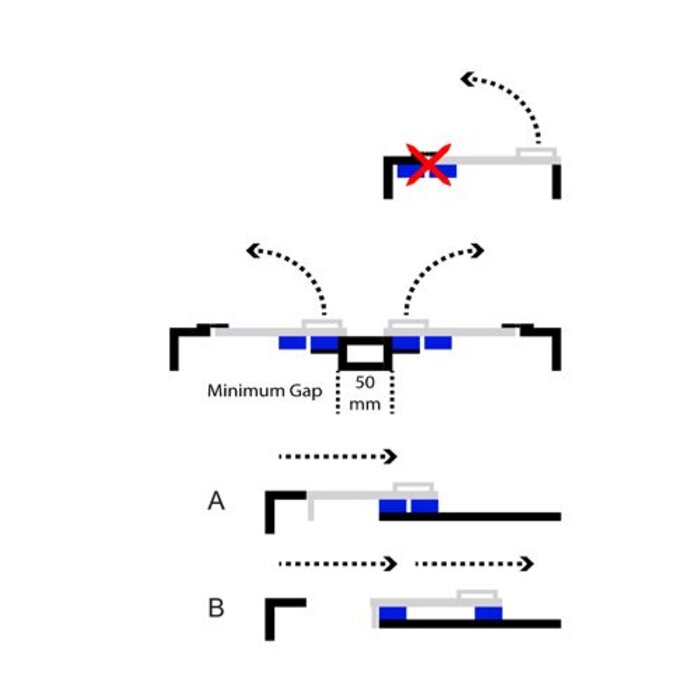

- For monitoring the position of sliding, hinged and removable protective doors.

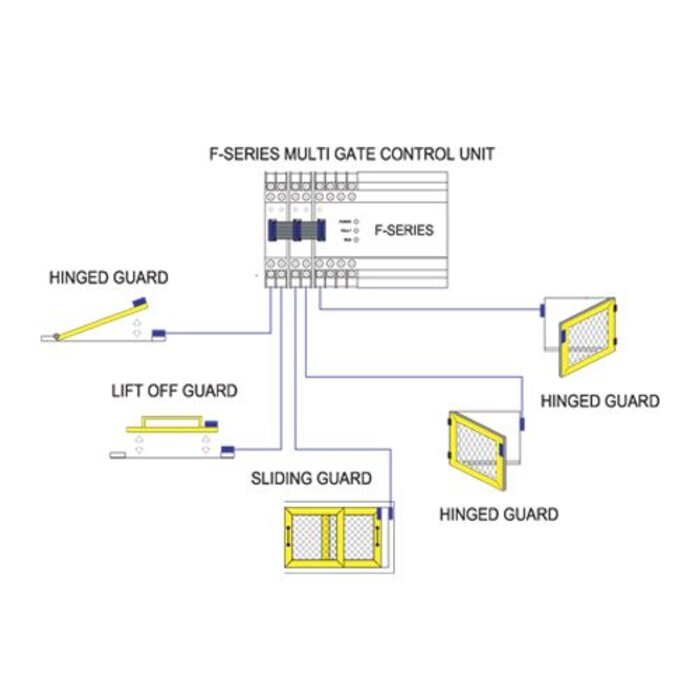

- Designed to connect with FM1 safety control unit.
- Suitable for applications where door locking is not required.
- Safety switches are continuously monitored whether the guard is opened or not.
- Tamper-resistant radio frequency operated electronic system.
- Easy to mount.
- Manufactured from robust ABS.
- Both switch and actuator are fully sealed to IP67.
- Suitable for use in harsh environments (easy to clean).
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Specifications
- Brand: Mechan Controls
- Article number: DKN1-05M
- Type: Non-contact electronic
- Series: SSS, stand alone
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC - 110V AC/DC
- Contact options: 1 N/O
- Housing: ABS

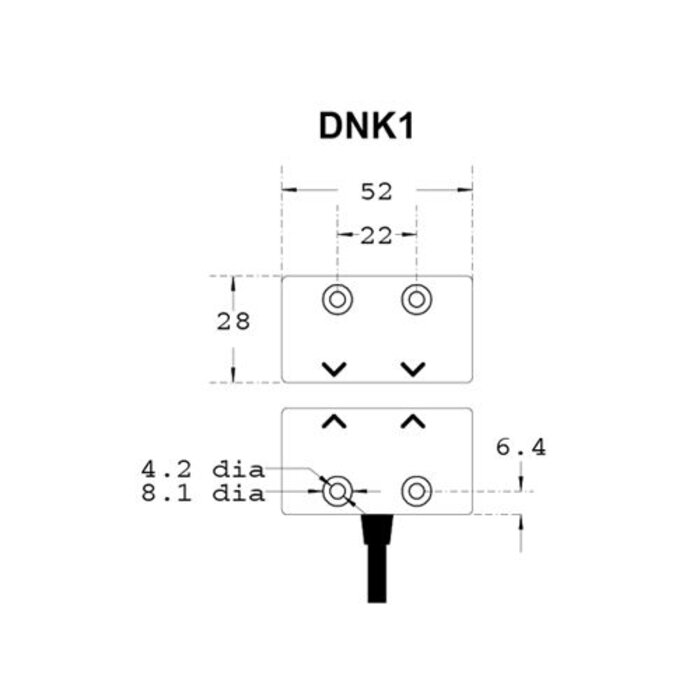

- Dimensions: 52 x 28 x 14mm
- Cable Colour: Blue
- Operating distance: 7mm - 10mm
- Status LED: No
- Operating temperature: -20°C to +50 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 Years
- B10d: 2,000,000
- Explosion proof: No
- Connection: Pre-wired cable or QD
