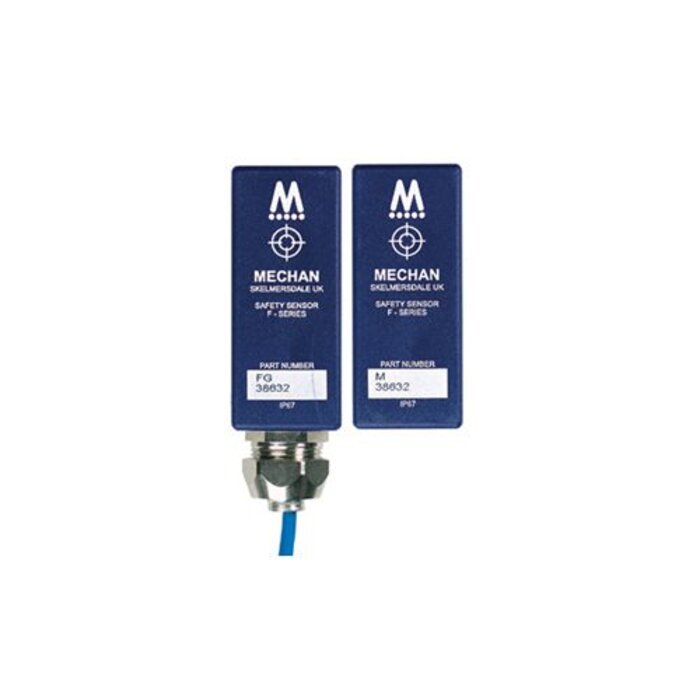

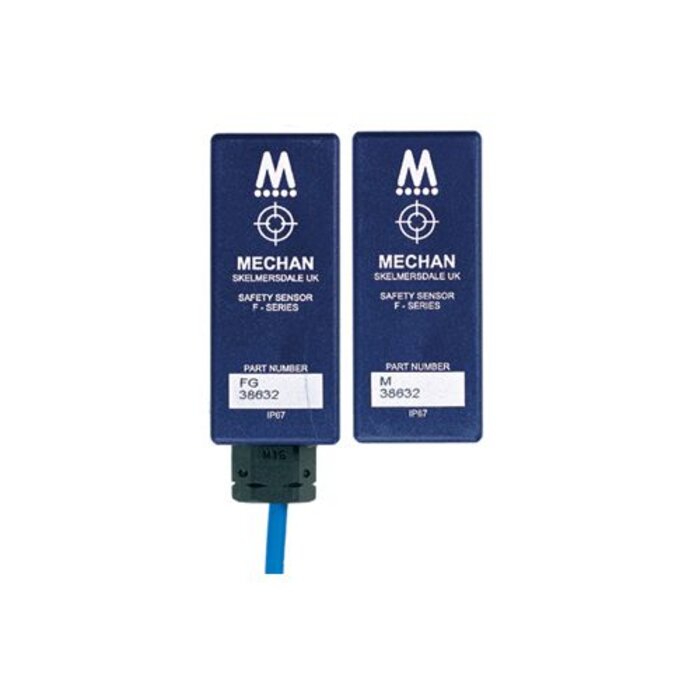

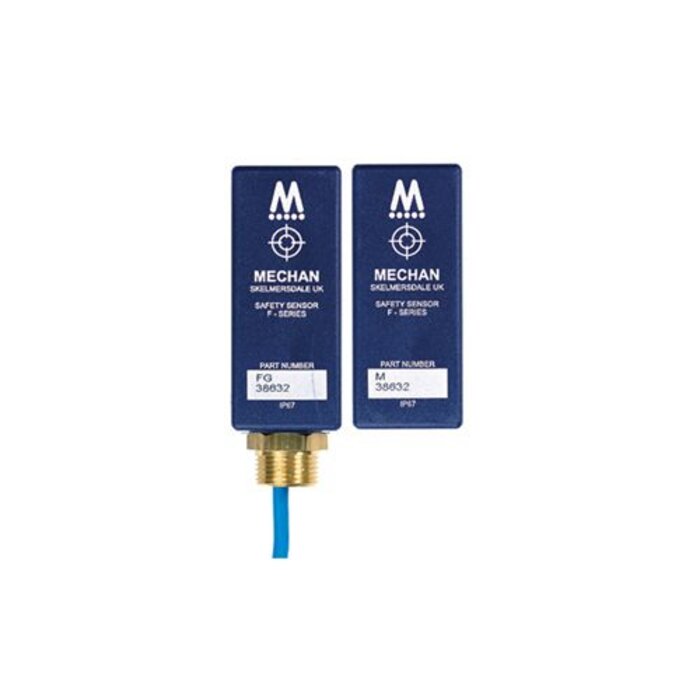

Electronically coded non-contact safety switch F-TYP

Contact options: 1 N/O, Operating voltage: 24V AC/DC, Connection: 5m pre-wired cable, Cable adapter: 16mm conduit adapter

€123,00
(€148,83 Incl. btw)
Continue shopping Checkout
Prefer a quote first? Click on "request quote" in your shopping cart

Electronically coded non-contact safety switch F-TYP
Image 1 / 9
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
Electronically coded non-contact safety switch F-TYP
€123,00
(€148,83 Incl. tax)
  • Article code FMA-05M
- +
Add to cart
Prefer a quote first? Click on "request quote" in your shopping cart
Ordered before [time], delivered tomorrow! You got 03:39 hours
Request for quotation
Full warranty on all our products
  • Description
    • Non-contact coded electronic safety switch for use in machine guarding applications.

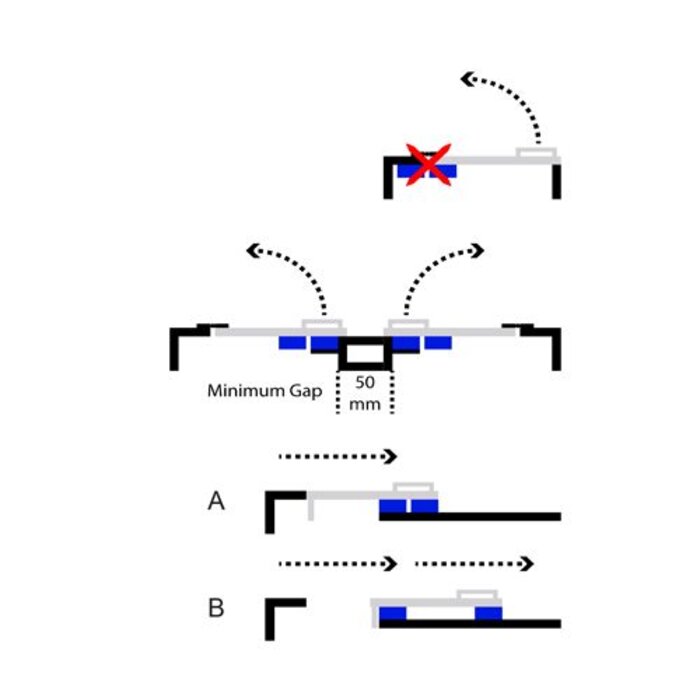

    • For monitoring the position of sliding, hinged and removable protective doors.

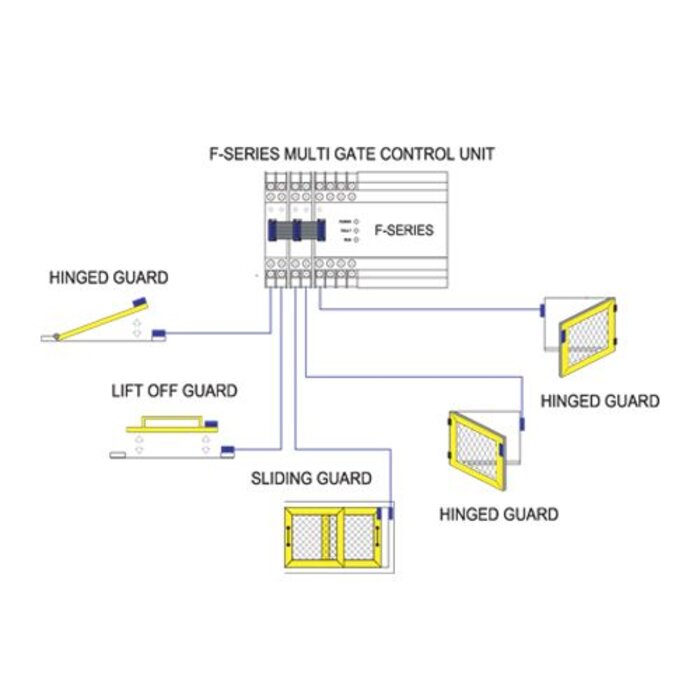

    • Designed to connect with FM1 safety control unit.
    • Suitable for applications where door locking is not required.
    • Safety switches are continuously monitored whether the guard is opened or not.
    • Tamper-resistant frequency operated electronic system.
    • Easy to mount.
    • Manufactured from robust ABS.
    • Both switch and actuator are fully sealed to IP67
    • Suitable for use in harsh environments (easy to clean).
    • In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
  • Specifications
    Type: Non-contact electronic
    Series: SSS, stand alone
    CE-mark: Machinery Directive 2006/42/EC
    UL: UL 508 Industrial control equipment
    Operating voltage: 24V AC/DC - 110V AC/DC
    Contact options: 1 N/O
    Housing: ABS

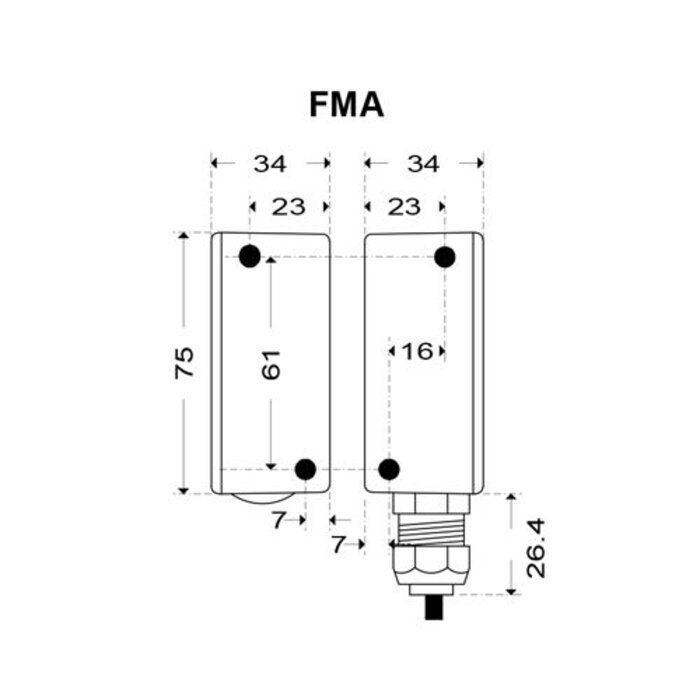

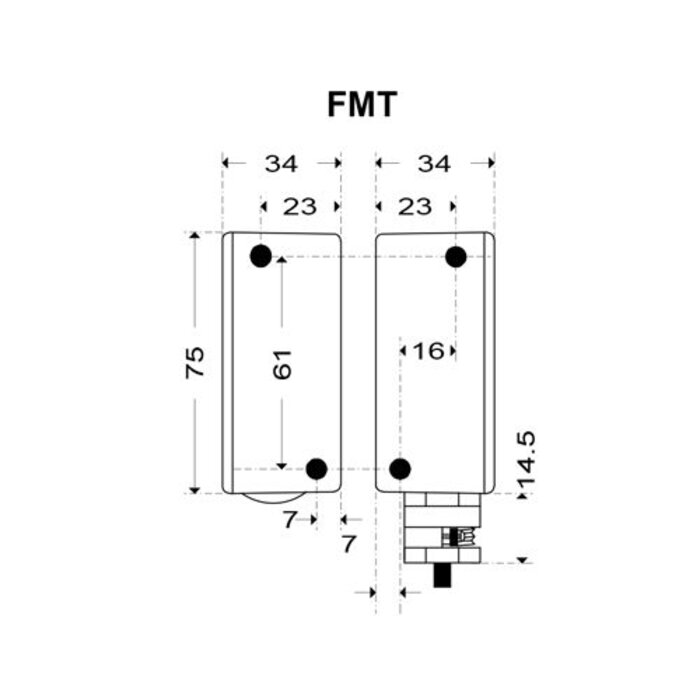

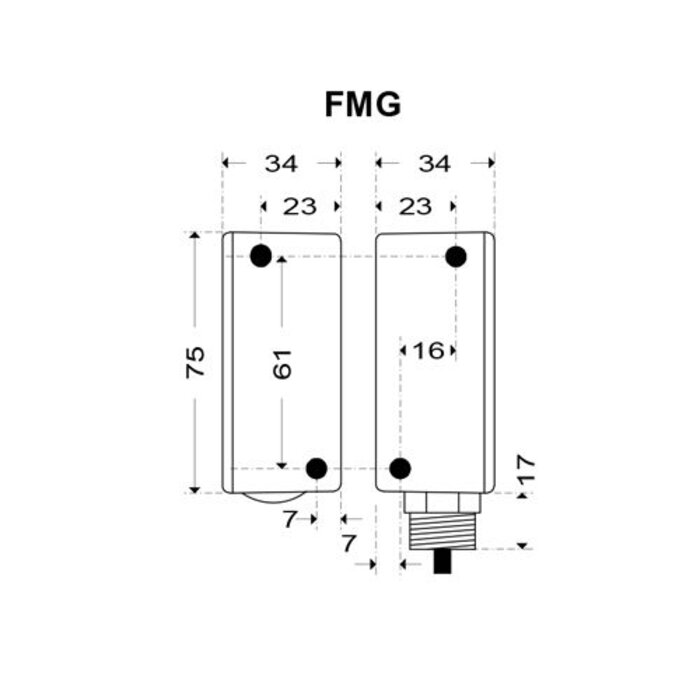

    Dimensions: 75 x 34 x 34mm
    Color: Blue

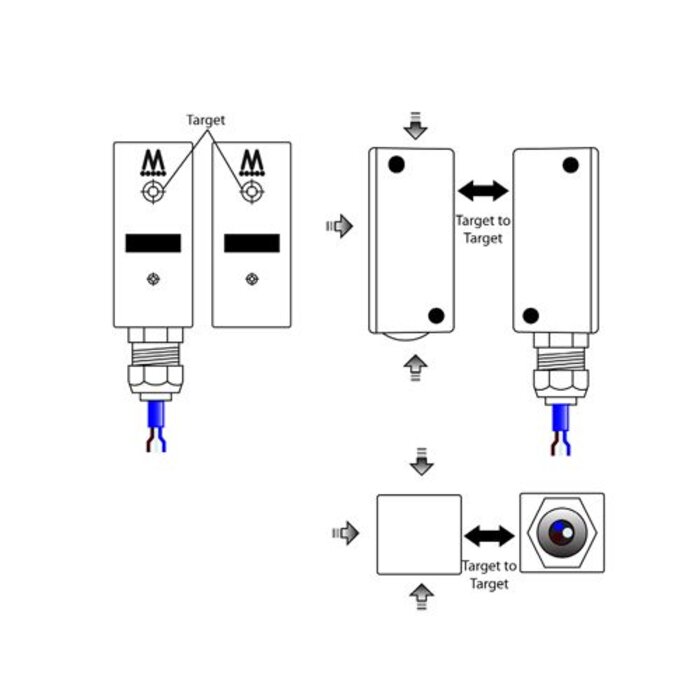

    Operating distance: 7mm - 10mm
    Status LED: No
    Operating temperature: -20°C to +50 °C
    IP rating: IP67 (IEC/EN 60529)
    MTTFd: > 100 Years
    B10d: 2,000,000
    Explosion proof: No
    Connection: Pre-wired cable
