Art: SS-C-11-DC-05M

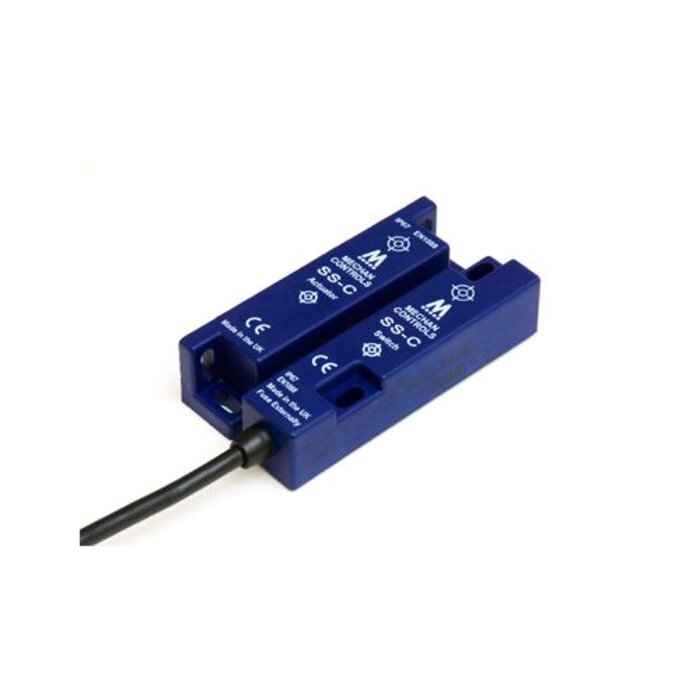

Mechan ControlsNon-contact coded electronic safety sensor SS-C
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Non-contact coded electronic safety sensor for use in machine guarding applications.

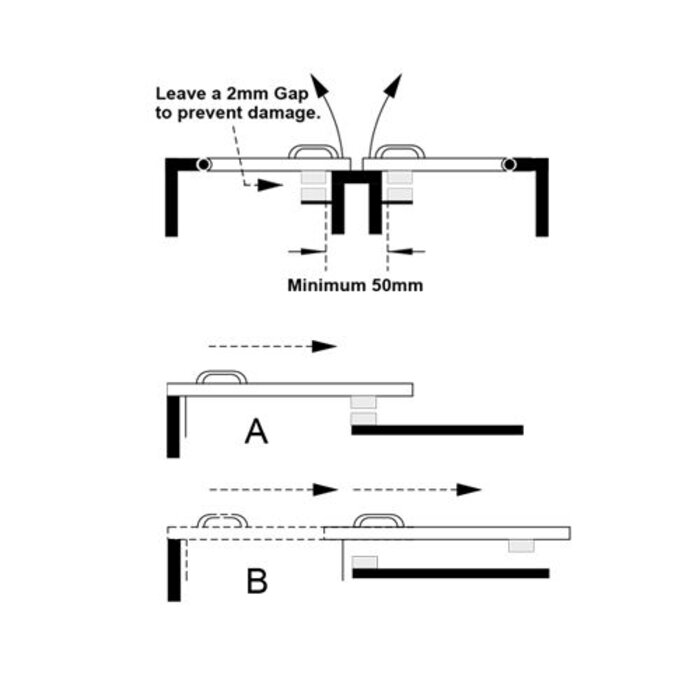

- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is not required.

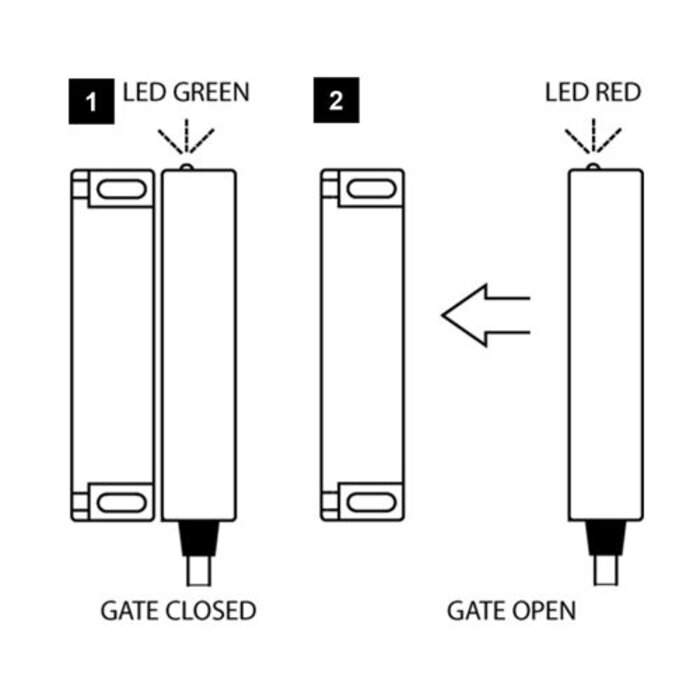

- Dual colour sLED for simple diagnostics.

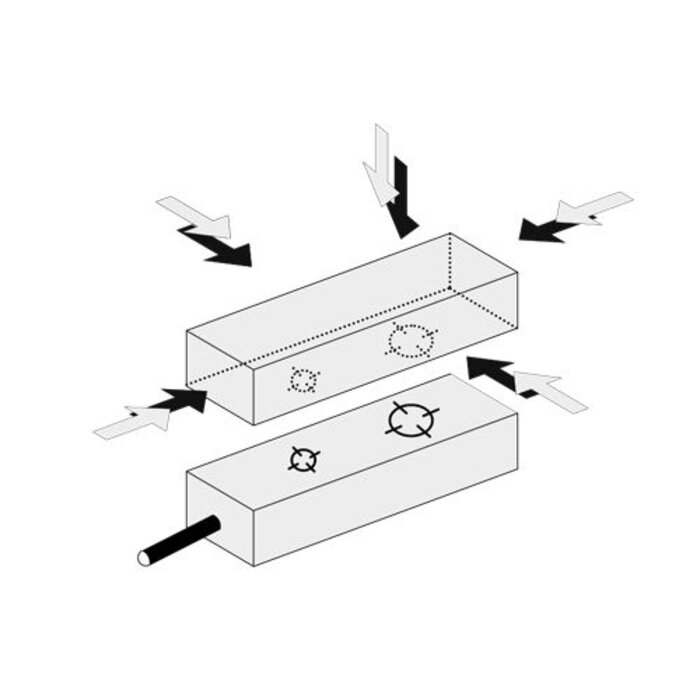

- Tamper-resistant radio frequency operated electronic system.
- Easy to mount.
- Manufactured from robust ABS.
- Both switch and actuator are fully sealed to IP67
- Suitable for use in harsh environments (easy to clean).
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Specifications
- Brand: Mechan Controls
- Article number: SS-C-11-DC-05M
- Type: Non-contact electronic
- Series: S series, stand alone
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V DC

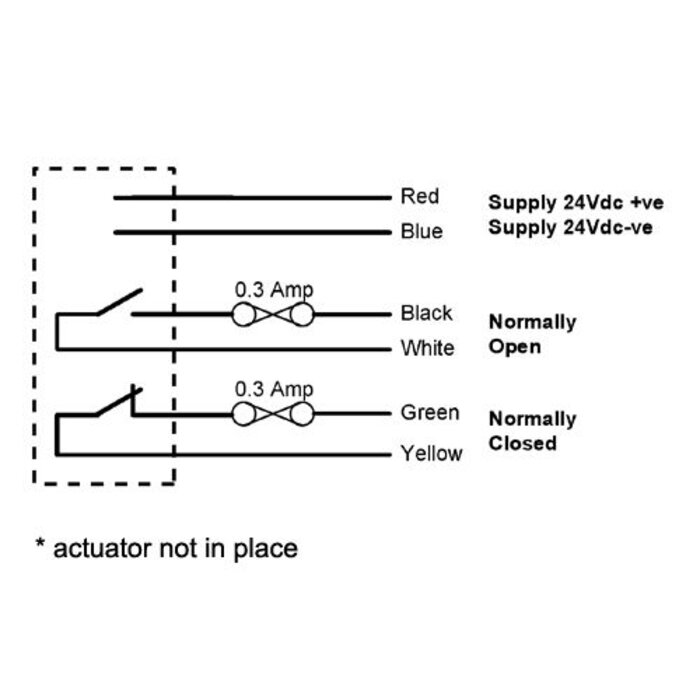

- Contact options: 1 N/O -1 N/C
- Housing: ABS

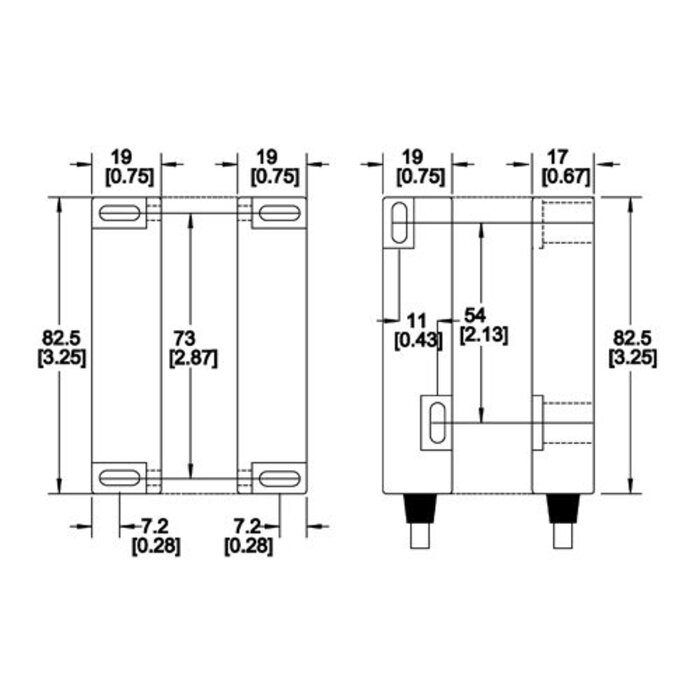

- Dimensions: 82 x 19 x 17mm
- Cable Colour: Blue
- Operating distance: 9mm ON - 10mm OFF
- Status LED: Yes (2)
- Operating temperature: -10°C to +55 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 Years
- B10d: 2,000,000
- Explosion proof: No
- Connection: Pre-wired cable
