Art: MS6-SS-10-DC-03M

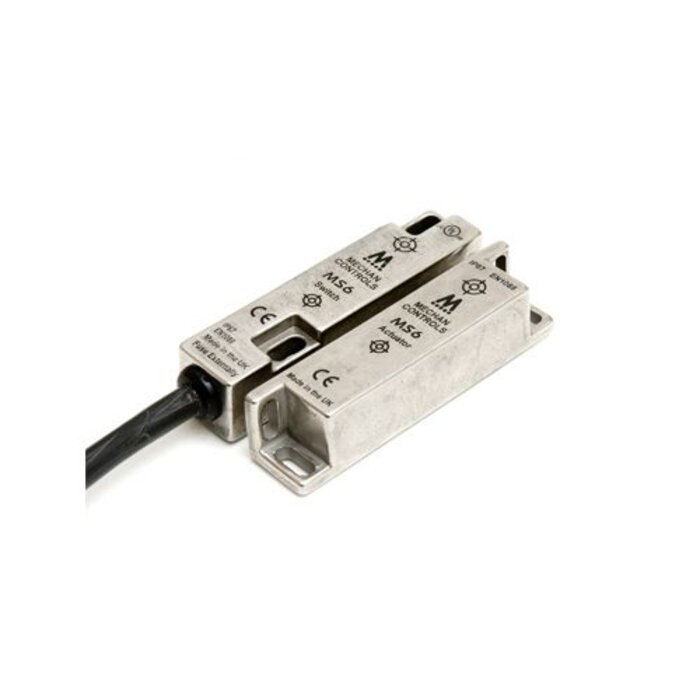

Mechan ControlsNon-contact magnetic stainless steel safety sensor MS6-SS
Show all:
Magnetic Safety Switches,Safety Sensors
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Magnetically operated non-contact safety sensor for use in machine guarding applications.

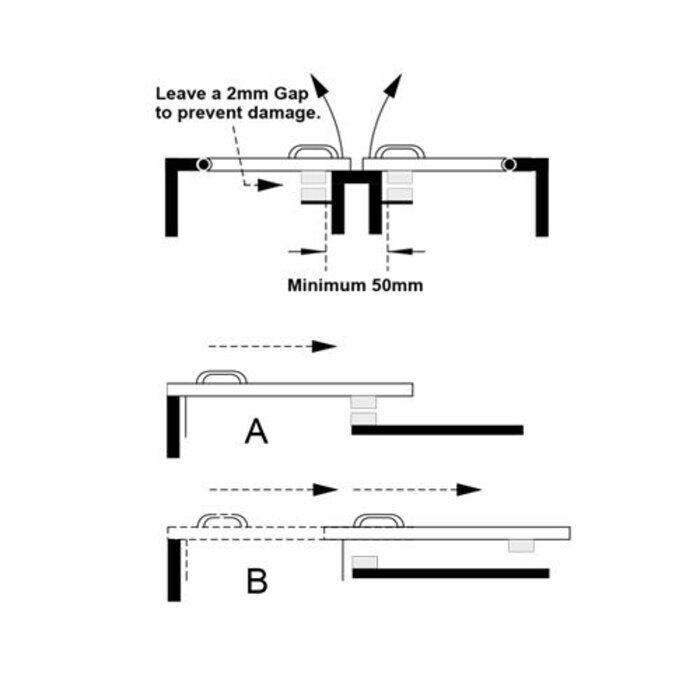

- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is not required.
- Easy to mount.
- Tolerant to misalignment.
- Full 316 grade stainless steel.
- Suitable for food processing industry.
- Both switch and actuator are fully sealed to IP67
- Suitable for use in harsh environments (easy to clean).
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Specifications
- Brand: Mechan Controls
- Article number: MS6-SS-10-DC-03M
- Type: Non-contact magnetic
- Series: Magnasafe, stand alone
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 30V DC or 230V AC
- Contact options: 2NO -1 NC , 2NO, 1NO - 1NC or 1NO
- Housing: 316 grade stainless steel
- Dimensions: 81.5 x 19 x 19mm
- Cable Colour: Silver
- Operating distance: 10mm ON - 30mm OFF
- Status LED: No
- Operating temperature: -10°C to +55 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 Years
- B10d: 2,000,000
- Explosion proof: No

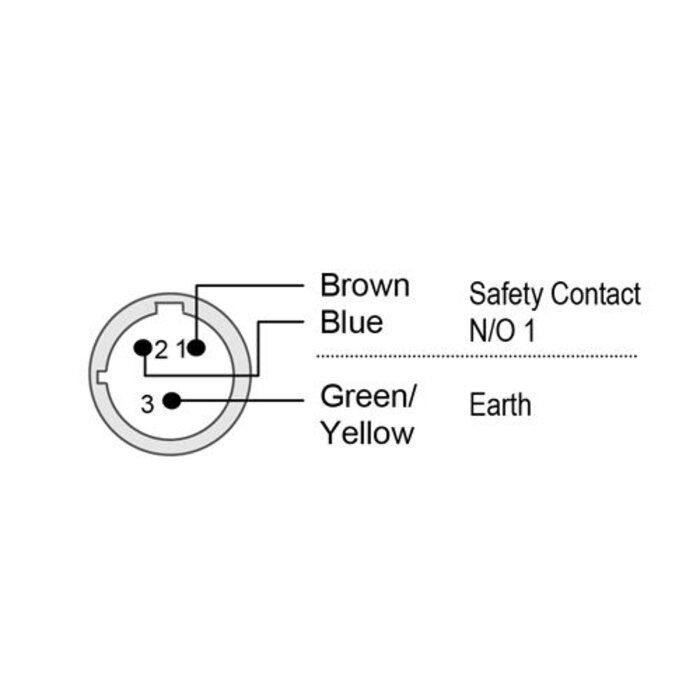

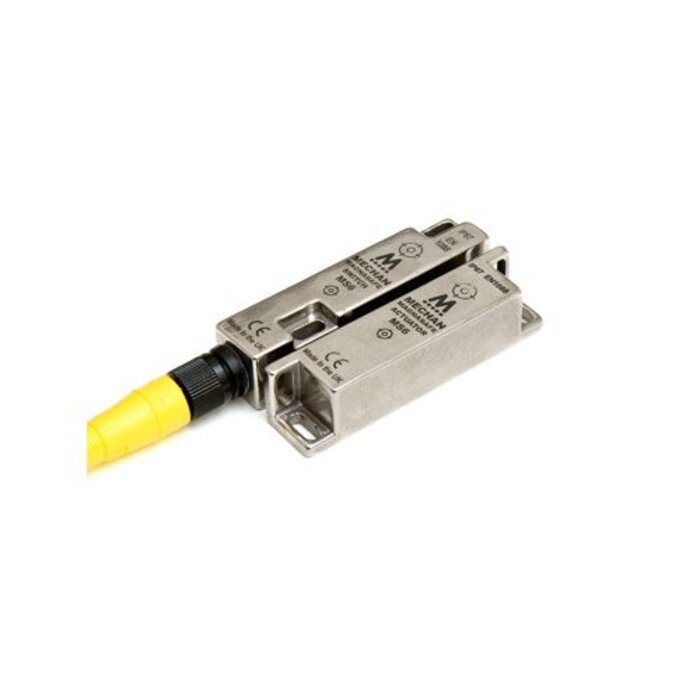

- Connection: Pre-wired cable or QD
