Art: MS7-21-DC-03M

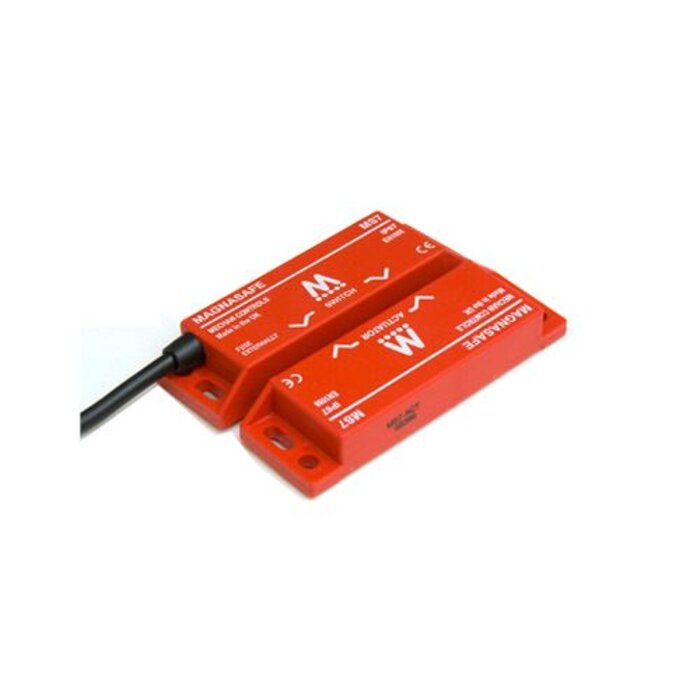

Mechan ControlsNon-contact magnetically coded safety switch MS7
Show all:
Magnetic Safety Switches,Safety Sensors
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Non-contact magnetically coded safety switch for use in machine guarding applications.

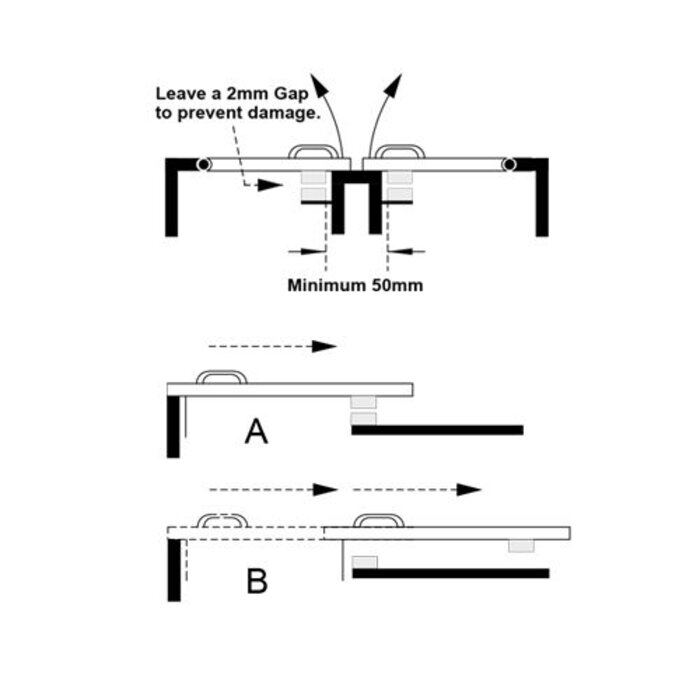

- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is not required.
- Tamper-resistant coded magnet.
- Easy to mount.

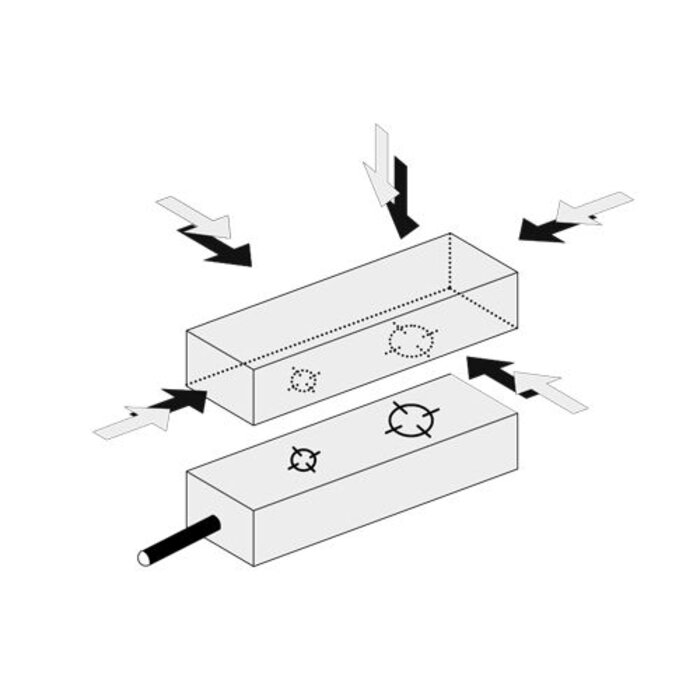

- Tolerant to misalignment.
- Manufactured from robust ABS.
- Both switch and actuator are fully sealed to IP67
- Suitable for use in harsh environments (easy to clean).
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Specifications
- Brand: Mechan Controls
- Article number: MS7-21-DC-03M
- Type: Non-contact magnetically coded
- Series: Magnasafe, stand alone
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 30V DC or 230V AC
- Contact options: 2NO -1 NC
- Housing: ABS

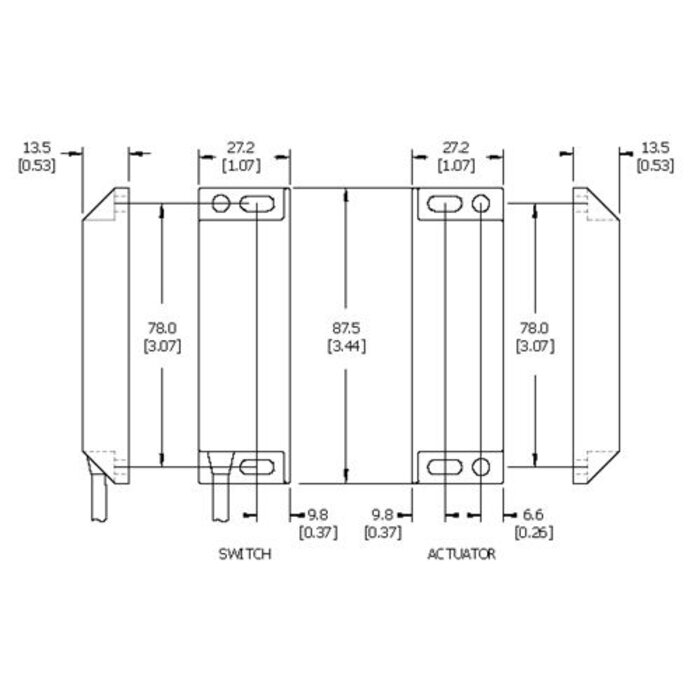

- Dimensions: 87 x 27 x 13.5mm
- Cable Colour: Red
- Operating distance: 7mm ON - 12mm OFF
- Status LED: No
- Operating temperature: -10°C to +55 °C
- IP rating: IP67 (IEC/EN 60529)
- Explosion proof: No
- Connection: Pre-wired cable or QD
