Art: HE2-21-DC-03M

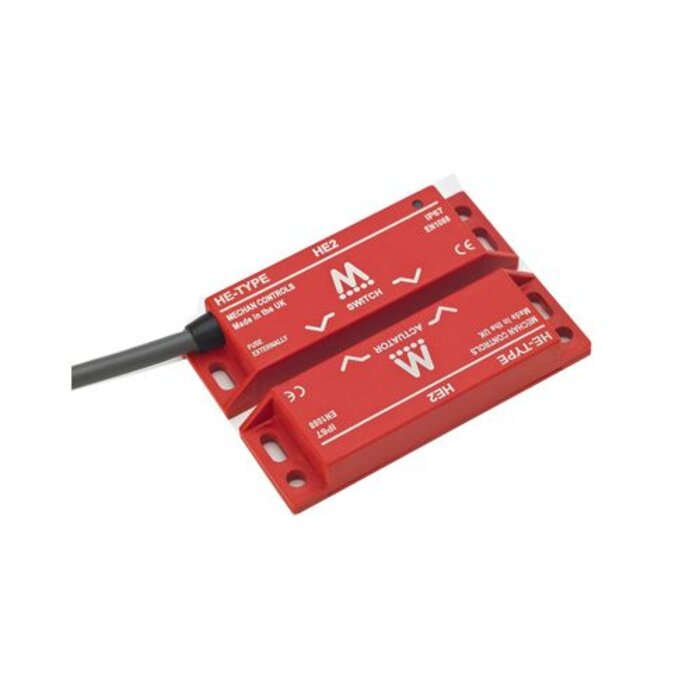

Mechan ControlsNon-contact magnetically coded safety sensor HE2
Show all:
Magnetic Safety Switches,Safety Sensors
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Non-contact magnetically coded safety sensor for use in machine guarding applications.

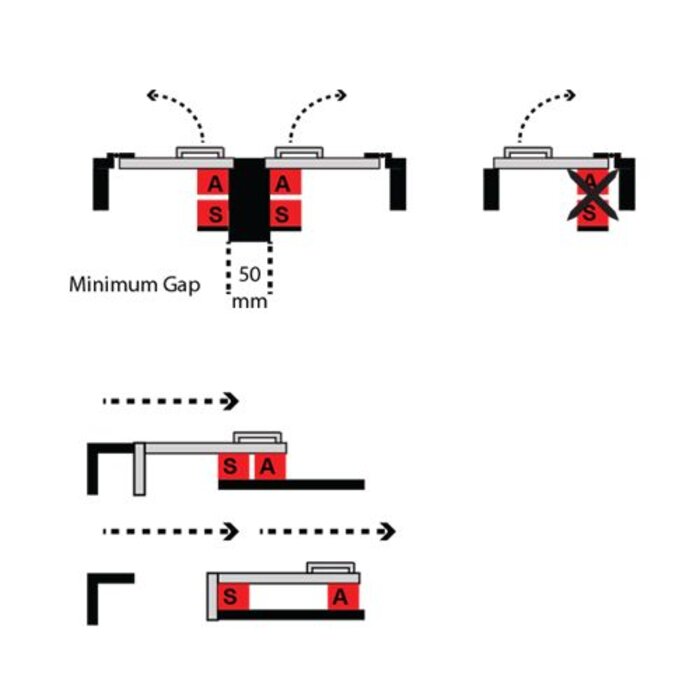

- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is not required.
- Designed to connect tothe SCU-1 safety control unit.
- Install up to 30 switches in series.
- Tamper resistant coded magnet.
- Status LED for simple diagnostics.
- Tolerant to shock and vibration.
- Easy to mount.

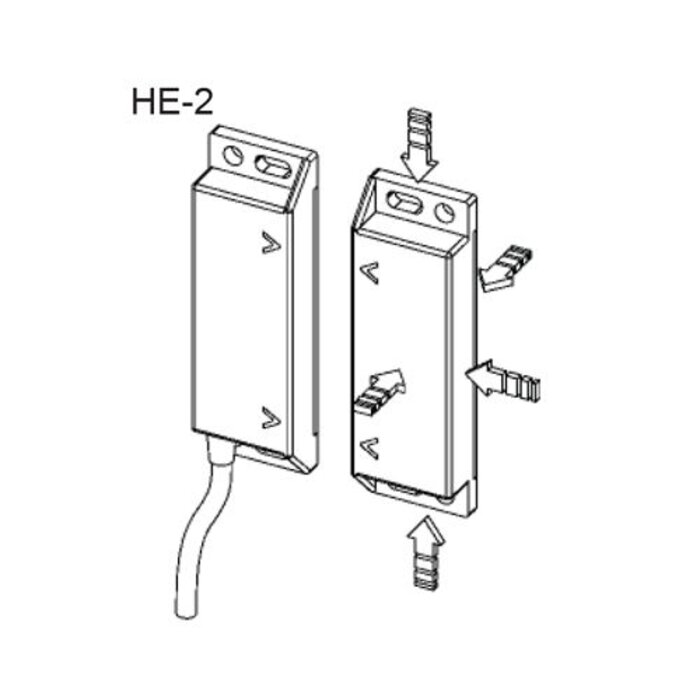

- Tolerant to misalignment.
- Manufactured from robust ABS.
- Both switch and actuator are fully sealed to IP67 and IP69K.
- Suitable for use in harsh environments (easy to clean).
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Specifications
- Brand: Mechan Controls
- Article number: HE2-21-DC-03M
- Type: Non-contact magnetically coded
- Series: HE series (SCU-1 safety control unit)
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V DC

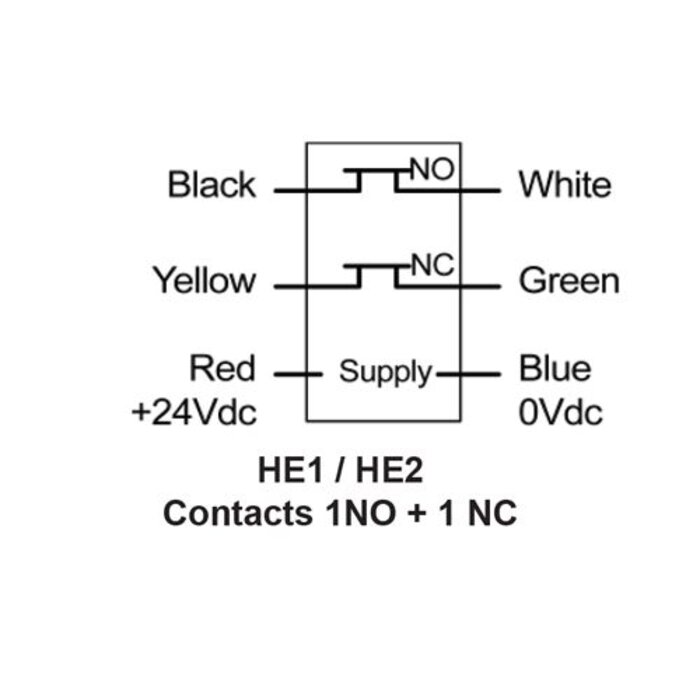

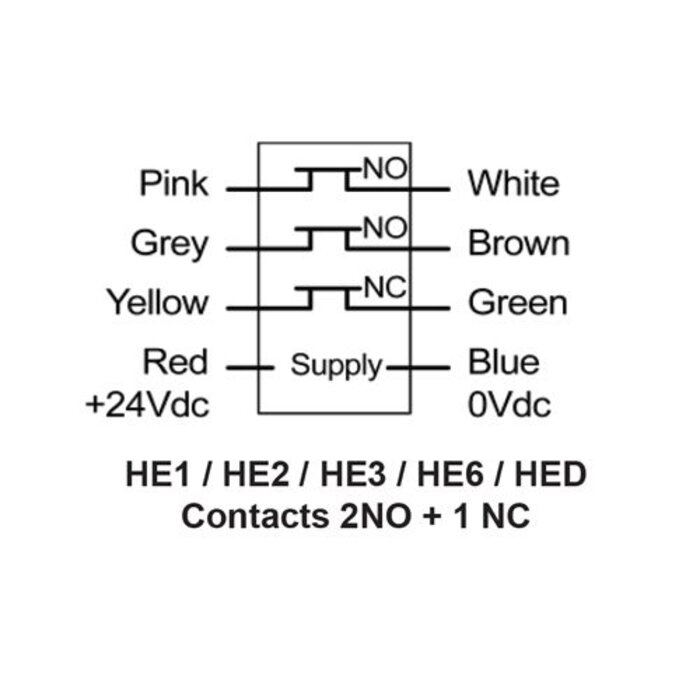

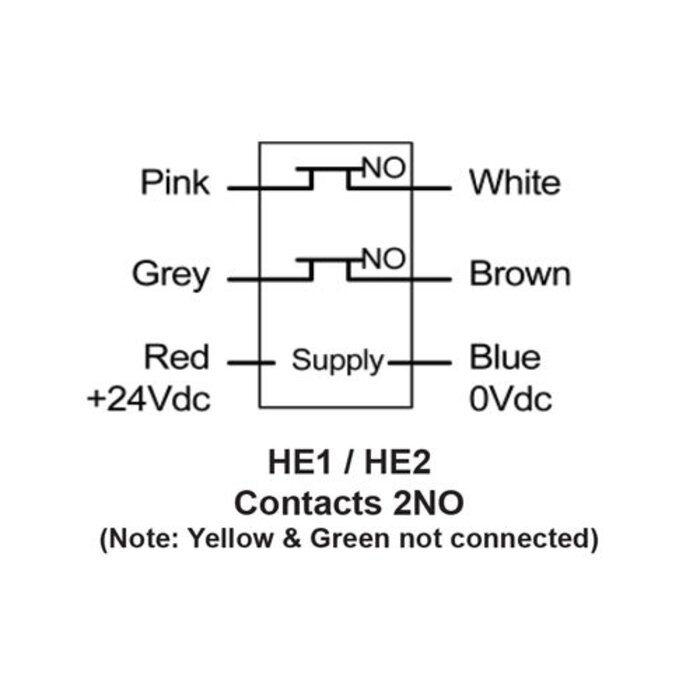

- Contact options: 2NO -1 NC , 2NO or 1NO - 1NC
- Housing: ABS

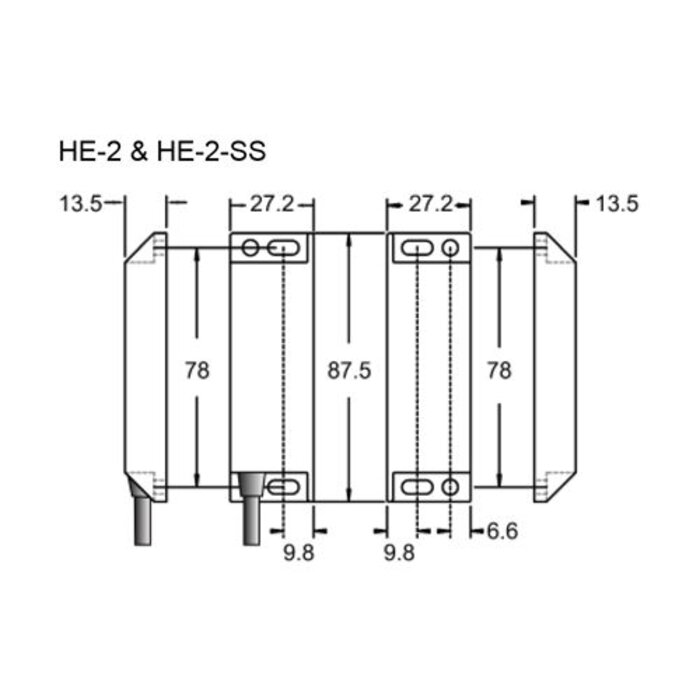

- Dimensions: 87,5 x 27 x 13.5mm
- Cable Colour: Red
- Operating distance: 7mm ON - 12mm OFF
- Status LED: Yes
- Operating temperature: -25°C to +55 °C
- IP rating: IP67 and Ip69K (IEC/EN 60529)
- MTTFd: > 100 Years
- B10d: 2,000,000
- Explosion proof: No

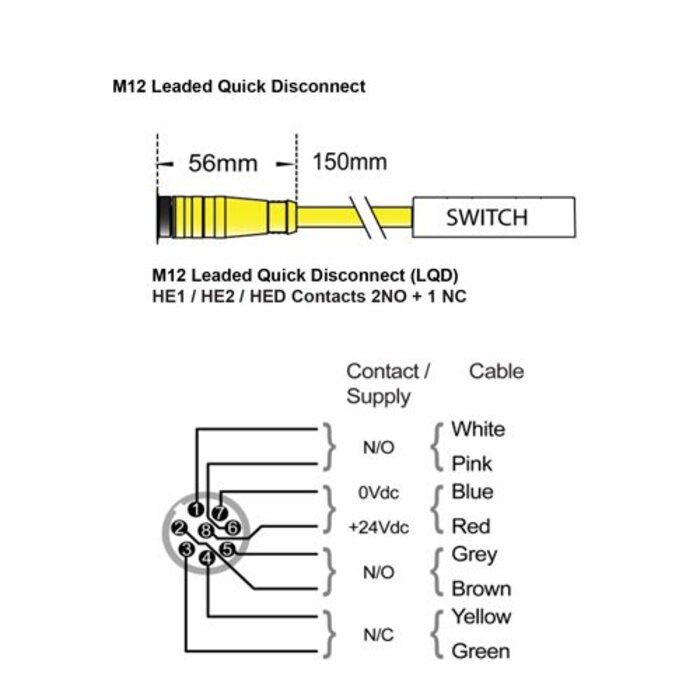

- Connection: Pre-wired cable or QD
