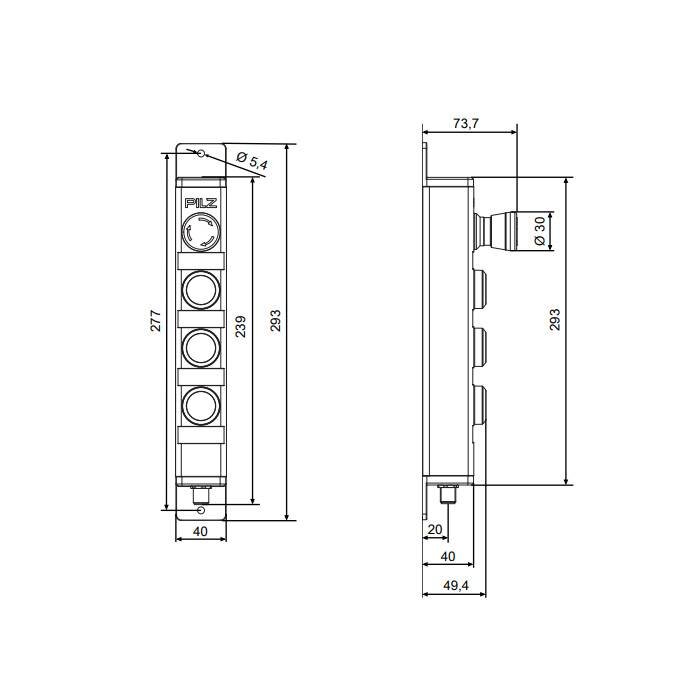

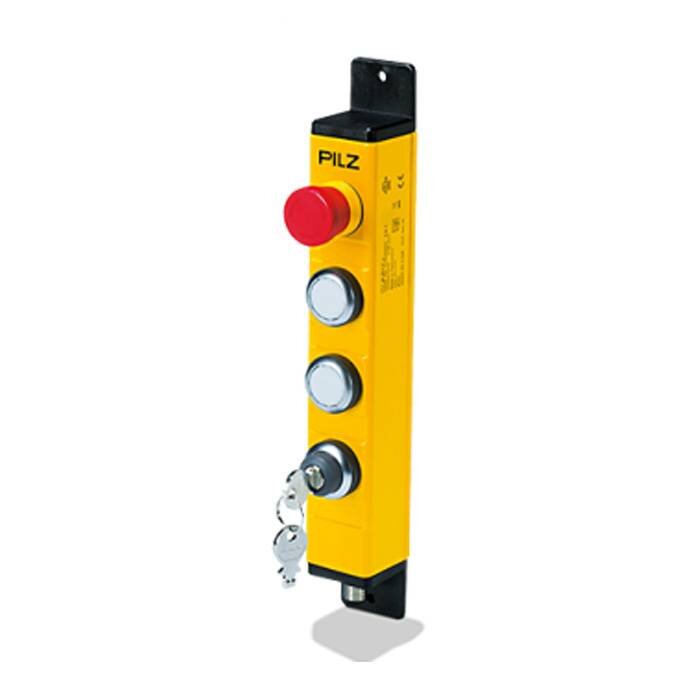

PilzMetall control enclosure with 2 push buttons,E-Stop and key switch
Show all:
GateBoxes
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
Metal Gate box with 2 control elements, E-Stop (2NC) and key switch (2NO).
Different lens colours supplied as standard.
Cost savings due to reduced wiring work.
Flexible installation thanks to integrated, rotatable mounting bracket
12pin M12 quick disconnector.
Ergonomic 40mm aluminium enclosure.
Fully sealed to IP65.
Specifications
- Brand: Pilz
- Article number: G1000004
- Type: Gate box
- E-stop: 2NC + 1NO
- Series: Pilz PIT
- CE-mark: Machinery Directive 2006/95/EG
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC
- Housing: Painted metal
- Cable Colour: Yellow
- Operating temperature: -10°C to +50 °C
- IP rating: IP65 (IEC/EN 60529)
- Connection: 12pin M12 quick disconnector
