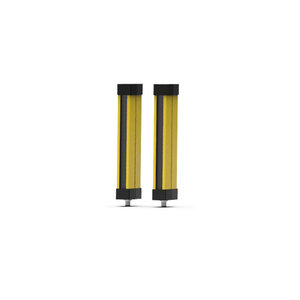

Mechan ControlsType 4 safety light curtain with 14mm resolution for finger detection MLG-14
Show all:
Light Curtains,Finger detection
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Safety light curtain Type 4.
- Suitable for detection of operators.
- Conisits of an emitter and receiver.
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- 14mm resolution for finger detection.
- Available in various protective field heights: 200, 400, 600, 800, 1000 and 1200mm.
- Detection rannge 0.5m to 6m.
- Can be connected to GLM1 safety controller.
- Gesealed tot IP65.
- Fitted with quick disconnector.
- Supplied with mounting brackets as standard.
Specifications
- Brand: Mechan Controls
- Article number: MLG-14-200
- Type: Saety Light Curtain Type 4
- Response Time: 20m/s upto 300mm curtain + 4m/s for each 100mm of curtain
- Operating temperature: -0°C to +50 °C
- Connection: 5pin M12 / 8pin M12 quick disconnector
- Operating voltage: 24 V dc +20%
- Resolution: 14mm
- Protective Height: 200, 400, 600, 800, 1000 or 1200mm
- Range: 0.5 to 6m
- Dimensions: 36 x 45mm cross section
- Standards Applied: EN 61496 4 (self-monitoring), EN 61508-1: 2002 Sil 3 EN 62061:2005 Sil 3, EN 13849-1:2006 PLe
- Wave length: 800nm (Class 1 LED)
- Mounting Brackets: Yes
- Power Consumption: < 12VA
- Enclosure Rating: IP65
- Muting: No (possible via PLC)
- Blanking: No (possible via PLC)
- Color: Yellow and black
- For detection of: Fingers
