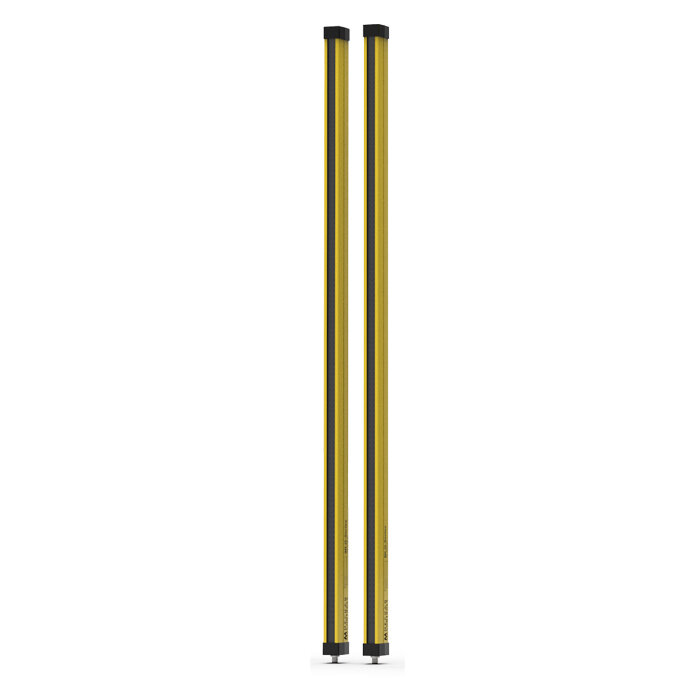

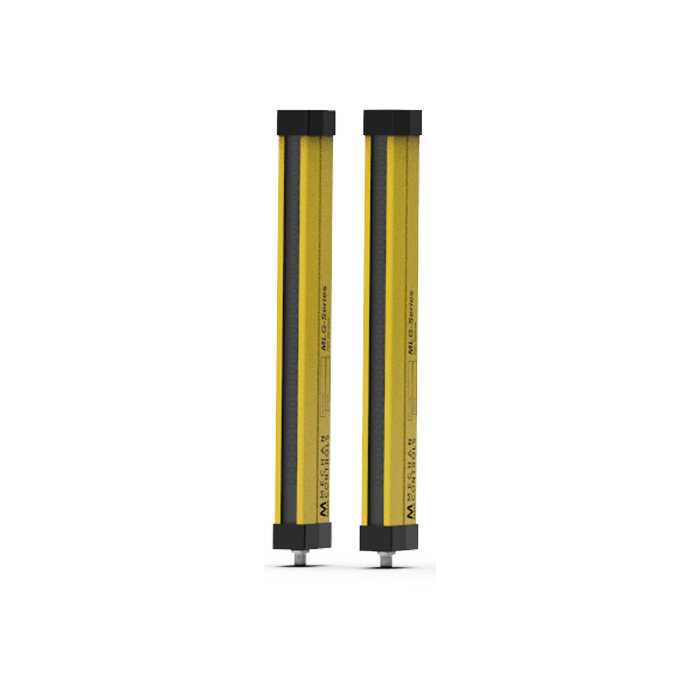

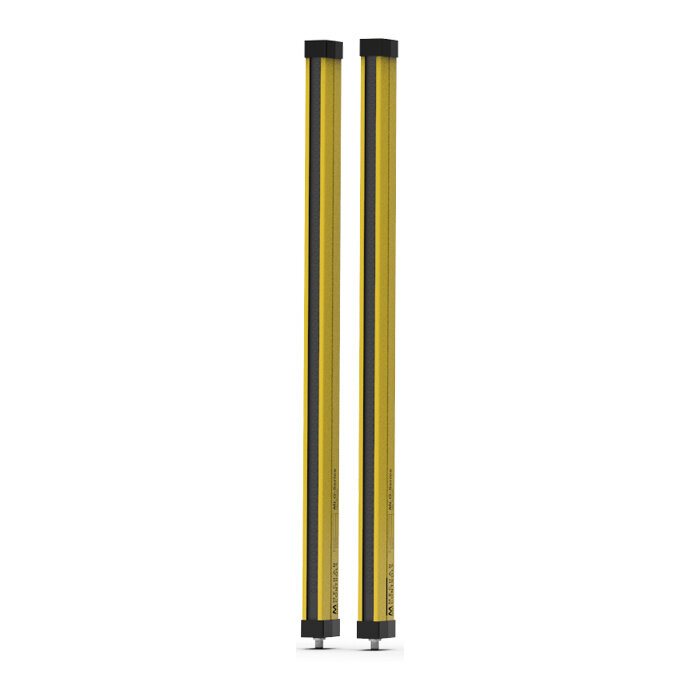

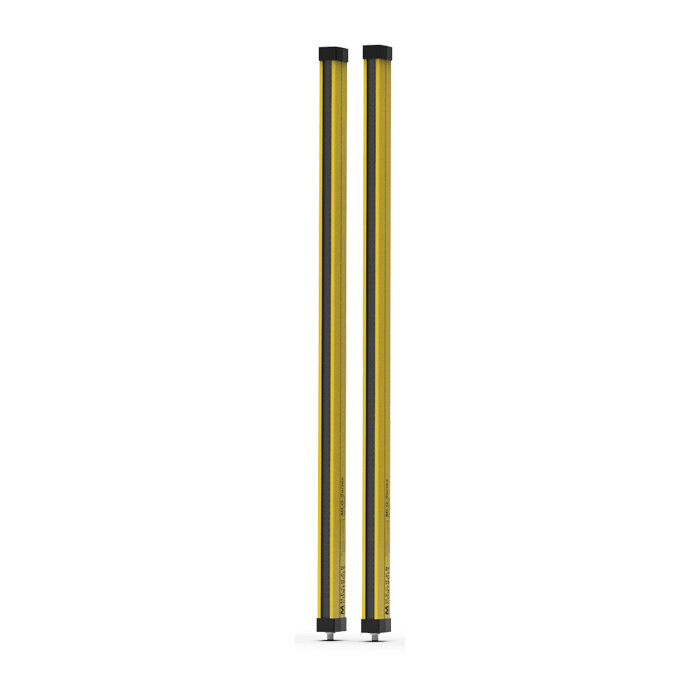

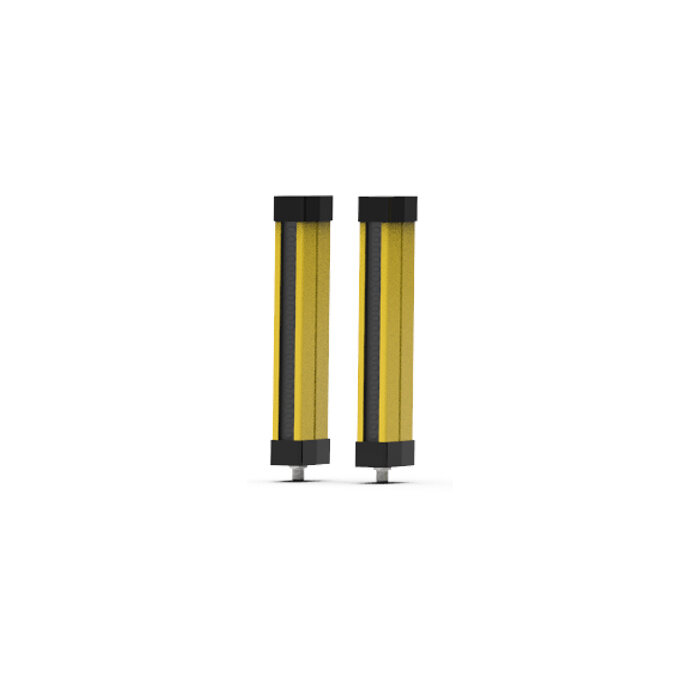

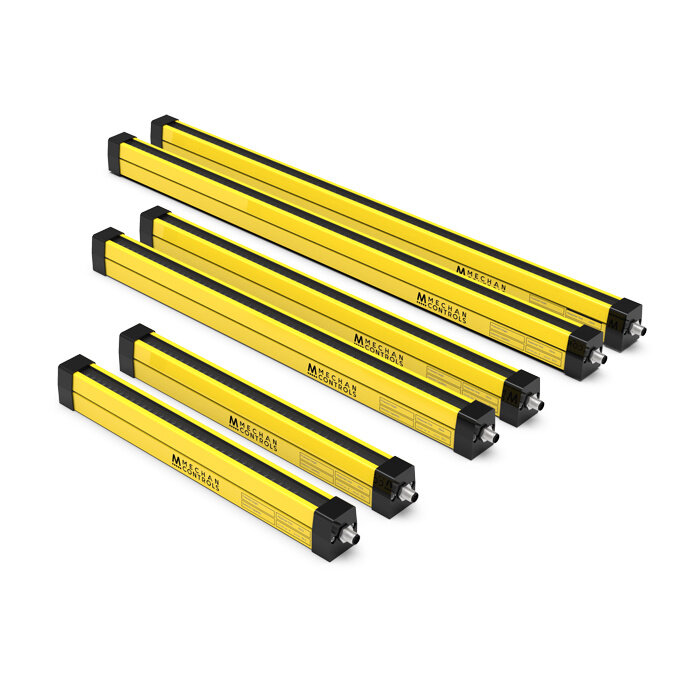

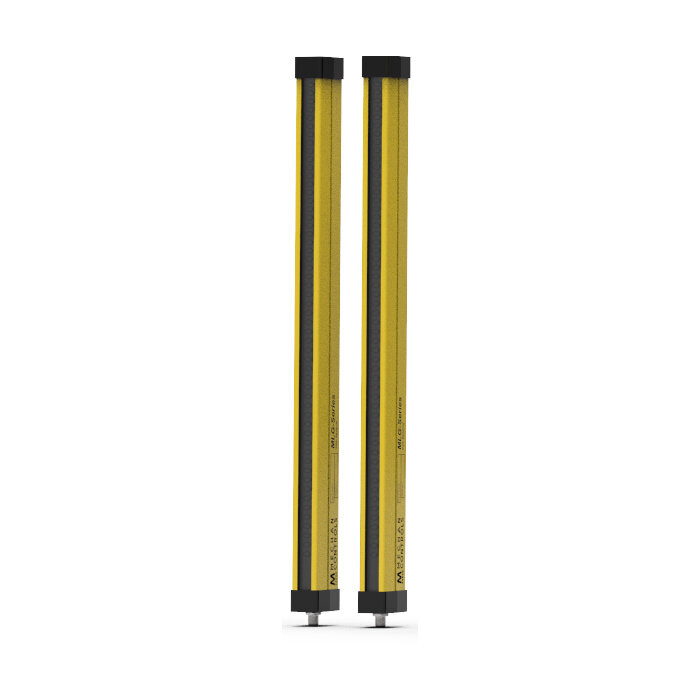

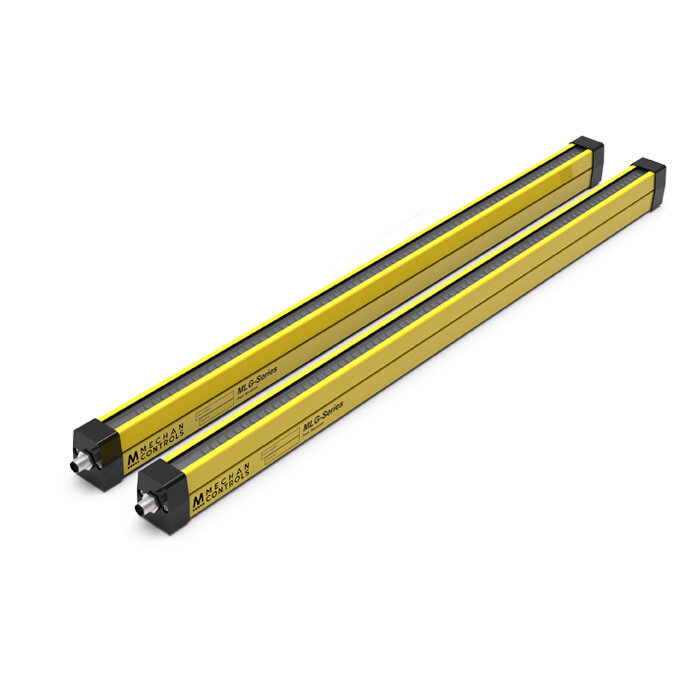

Type 4 safety light curtain with 30mm resolution for hand detection MLG-30

0 reviews

Delivery time -

Image 1 / 10

0 reviews

out of stock

Delivery time -

Mechan Controls MLG safety light curtain Type 4 suitable for PLe, SIL3 and Cat 4 machine safety applications with 30mm resolution for hand detection.

€1.422,00

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Specifications

Type:	Safety Light Curtain Type 4
Response Time:	20m/s upto 300mm curtain + 4m/s for each 100mm of curtain
Operating temperature:	-0°C to +50 °C
Connection:	5pin M12 / 8pin M12 quick disconnector
Operating voltage:	24 V dc +20%
Resolution:	30mm
Protective Height:	200, 400, 600, 800, 1000 or 1200mm
Range:	0.5 to 15m

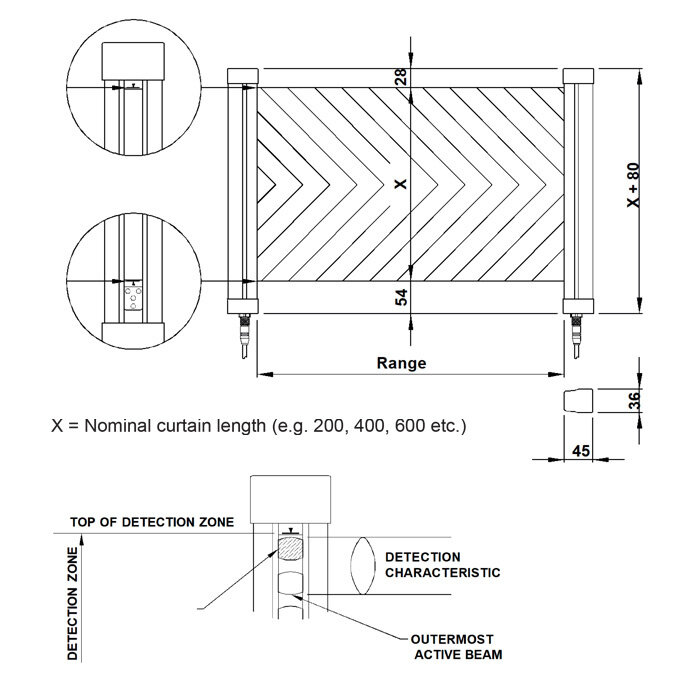

Dimensions:	36 x 45mm cross section
Standards Applied:	EN 61496 4 (self-monitoring), EN 61508-1: 2002 Sil 3 EN 62061:2005 Sil 3, EN 13849-1:2006 PLe
Wave length:	800nm (Class 1 LED)
Mounting Brackets:	Yes
Power Consumption:	< 12VA
Enclosure Rating:	IP65
Muting:	No (possible via PLC)
Blanking:	No (possible via PLC)
Color:	Yellow and black
For detection of:	Hands

Safety light curtain Type 4.
Suitable for detection of operators.
Conisits of an emitter and receiver.
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
30mm resolution for hand detection.

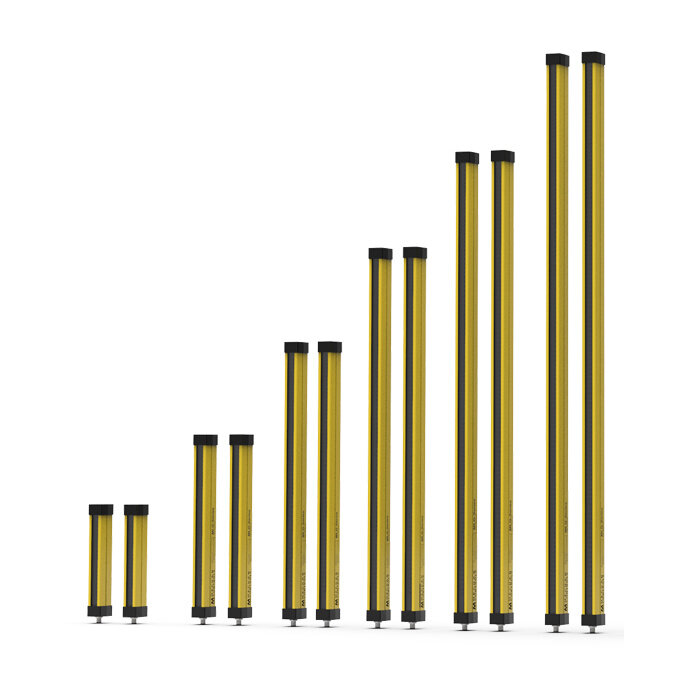

Available in various protective field heights: 200, 400, 600, 800, 1000 and 1200mm.
Detection rannge 0.5m to 15m.
Can be connected to GLM1 safety controller.
Gesealed tot IP65.
Fitted with quick disconnector.
Supplied with mounting brackets as standard.

Type:	Safety Light Curtain Type 4
Response Time:	20m/s upto 300mm curtain + 4m/s for each 100mm of curtain
Operating temperature:	-0°C to +50 °C
Connection:	5pin M12 / 8pin M12 quick disconnector
Operating voltage:	24 V dc +20%
Resolution:	30mm
Protective Height:	200, 400, 600, 800, 1000 or 1200mm
Range:	0.5 to 15m
Dimensions:	36 x 45mm cross section
Standards Applied:	EN 61496 4 (self-monitoring), EN 61508-1: 2002 Sil 3 EN 62061:2005 Sil 3, EN 13849-1:2006 PLe
Wave length:	800nm (Class 1 LED)
Mounting Brackets:	Yes
Power Consumption:	< 12VA
Enclosure Rating:	IP65
Muting:	No (possible via PLC)
Blanking:	No (possible via PLC)
Color:	Yellow and black
For detection of:	Hands
