Art: TRX-ST30-2050-200-1018
Description
Powder coated steel mesh panel ST30.
Height 2050mm.
For use with 2200mm guarding height (incl. 150mm floor distance).
Add 60mm guarding width when selecting a post.
Mesh size 100 x 20mm (fully welded).
Frame size 30 x 20mm
Supplied in yellow RAL 1018.
Suitable for use with Troax posts.
Follow Me installation manuals included with shipment.
Meets the requirements of the Machinery Directive, 2006/42/EC.
Components are held captive in the guard even when the system is dissasembled.
Along with Troax posts the guarding has been tested to handle impacts of up to 2,000 Joules.
| Panel height (mm) | Panel width (mm) | Colour | Article-No. |

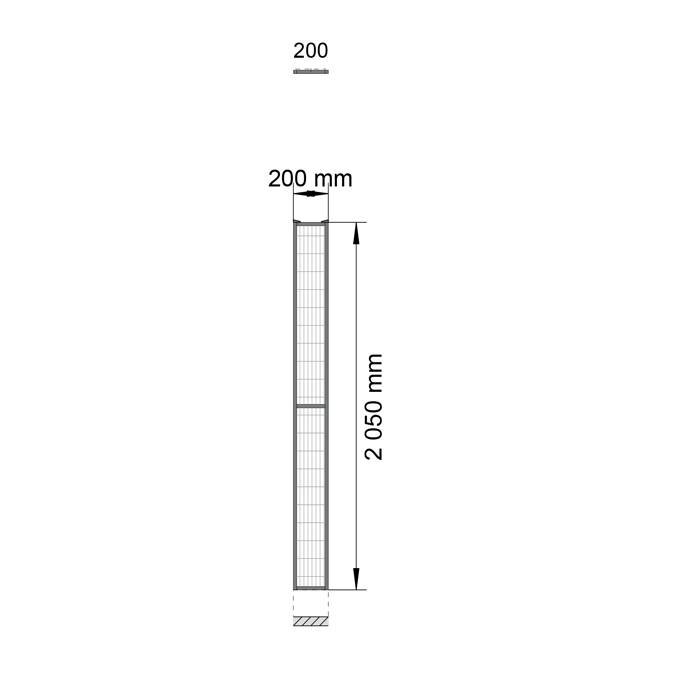

| 2050 | 200 | RAL 1018 | TRX-ST30-2050-200-1018 |
| 2050 | 300 | RAL 1018 | TRX-ST30-2050-300-1018 |

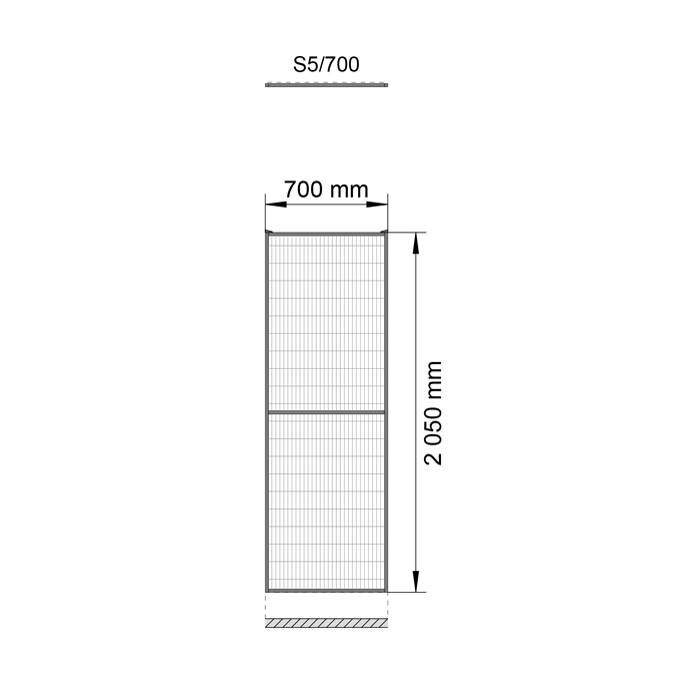

| 2050 | 700 | RAL 1018 | TRX-ST30-2050-700-1018 |

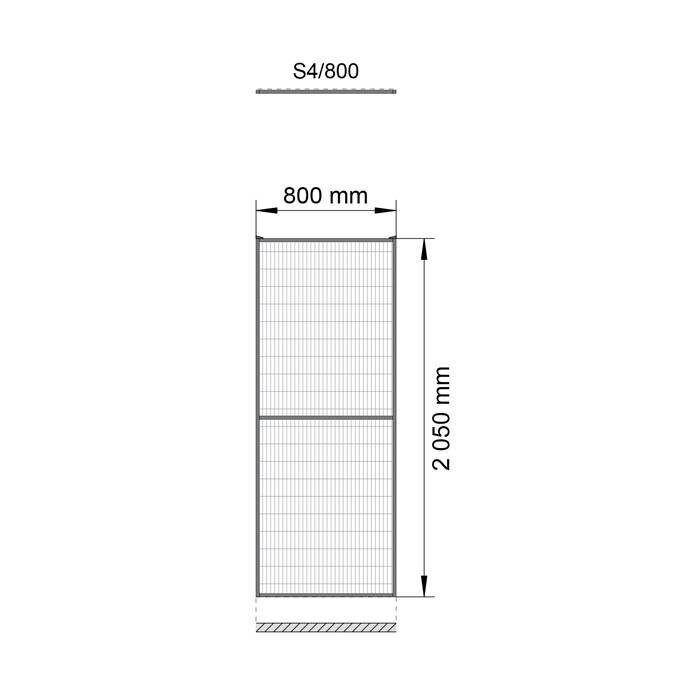

| 2050 | 800 | RAL 1018 | TRX-ST30-2050-800-1018 |

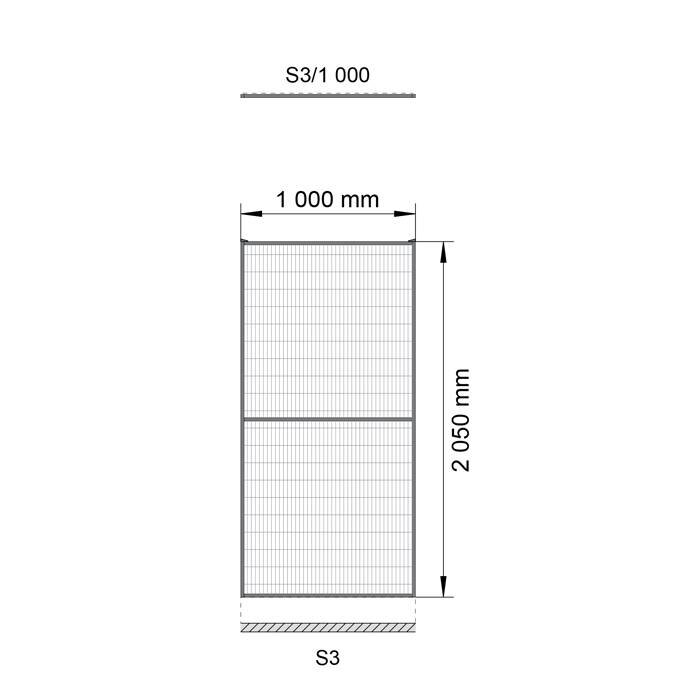

| 2050 | 1000 | RAL 1018 | TRX-ST30-2050-1000-1018 |
| 2050 | 1200 | RAL 1018 | TRX-ST30-2050-1200-1018 |

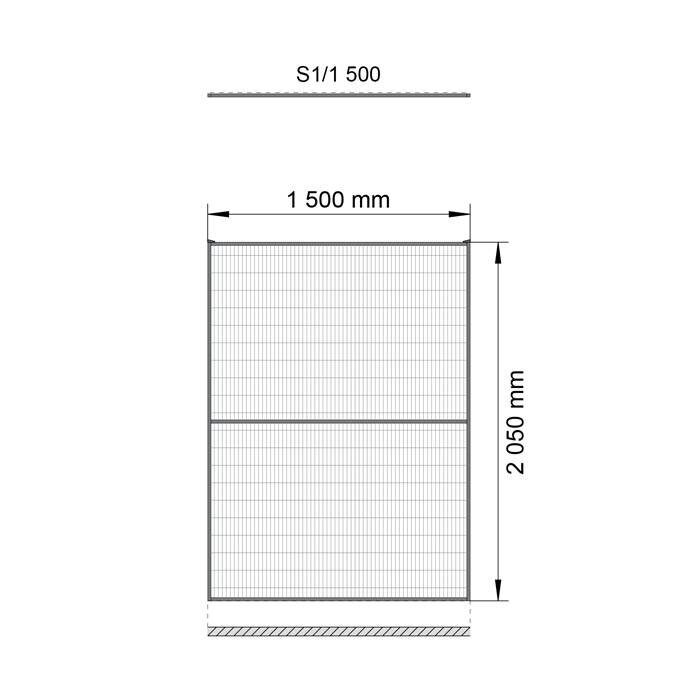

| 2050 | 1500 | RAL 1018 | TRX-ST30-2050-1500-1018 |
Specifications
- Brand: Troax
- Article number: TRX-ST30-2050-200-1018
- Dimensions: 20 x 2050mm3

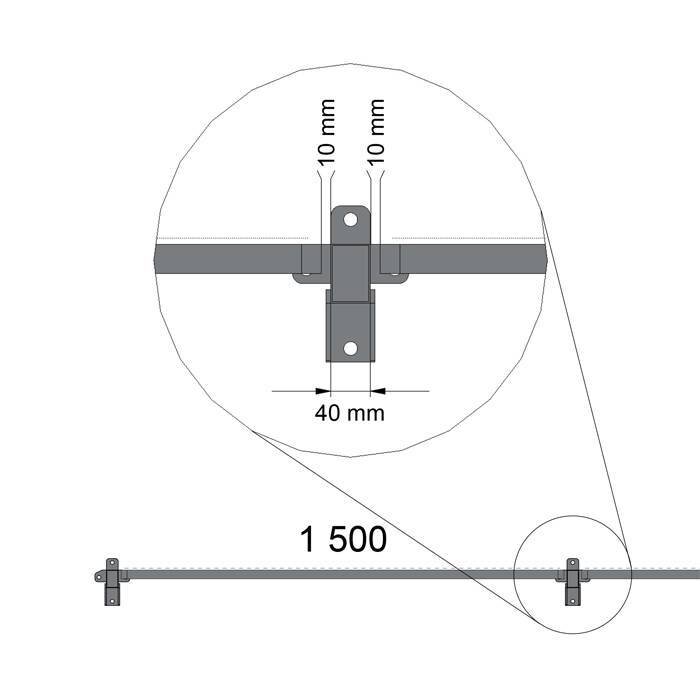

- Fixing: SmartfFix brackets
- Cable Colour: Yellow RAL 1018
- Cable Material: Powder coated steel
- Machinery Directive: meets 2006/42/EC
- Impact tested: 2.000 Joule
- Frame Size: 30 x 20mm
- Mesh size: 100 x 20mm
- Wire: 3mm
- Min. safety distance: 120mm
