Metall control enclosure with 3 push buttons and E-Stop

0 reviews

in stock

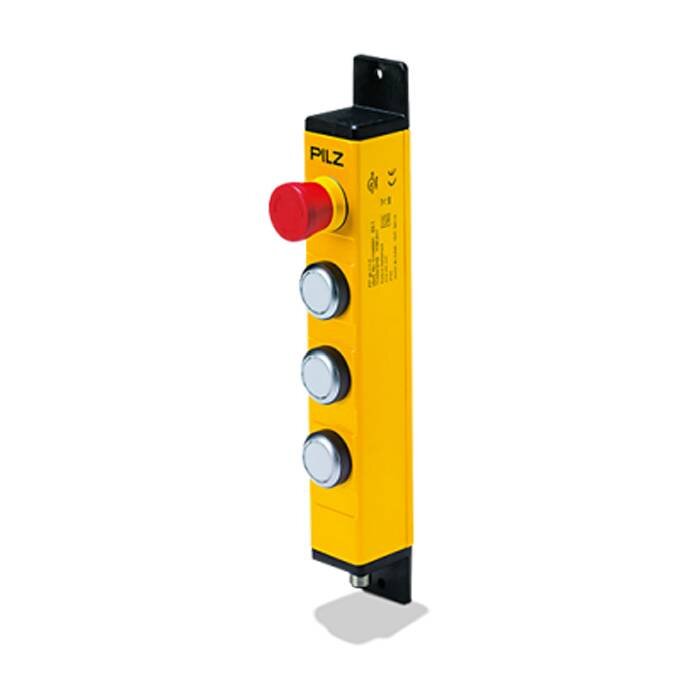

Metall control enclosure with 3 push buttons and E-Stop

Enlarge image

Image 1 / 2

Metall control enclosure with 3 push buttons and E-Stop

0 reviews

in stock

Pilz PITgatebox with 3 push buttons and e-stop with 1 quick disconnector.

Article code G1000001

€170,50

(€206,31 Incl. tax)

Article code G1000001

Buy 3 for €161,98 each and save 5%
Buy 5 for €157,71 each and save 7,5%

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description

Metal Gate box with 3 control elements and E-Stop (2NC).

Different lens colours supplied as standard.

Cost savings due to reduced wiring work.

Flexible installation thanks to integrated, rotatable mounting bracket

12pin M12 quick disconnector.

Ergonomic 40mm aluminium enclosure.

Fully sealed to IP65.

Specifications

Type:	Gate box
E-stop:	2NC
Series:	Pilz PIT
CE-mark:	Machinery Directive 2006/95/EG
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC
Housing:	Painted metal
Color:	Yellow
Operating temperature:	-10°C to +50 °C
IP rating:	IP65 (IEC/EN 60529)
Connection:	12pin M12 quick disconnector

Add your review
0 stars based on 0 reviews

Metal Gate box with 3 control elements and E-Stop (2NC).

Different lens colours supplied as standard.

Cost savings due to reduced wiring work.

Flexible installation thanks to integrated, rotatable mounting bracket

12pin M12 quick disconnector.

Ergonomic 40mm aluminium enclosure.

Fully sealed to IP65.

Type:	Gate box
E-stop:	2NC
Series:	Pilz PIT
CE-mark:	Machinery Directive 2006/95/EG
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC
Housing:	Painted metal
Color:	Yellow
Operating temperature:	-10°C to +50 °C
IP rating:	IP65 (IEC/EN 60529)
Connection:	12pin M12 quick disconnector
