Art: PSEN cs1.1p

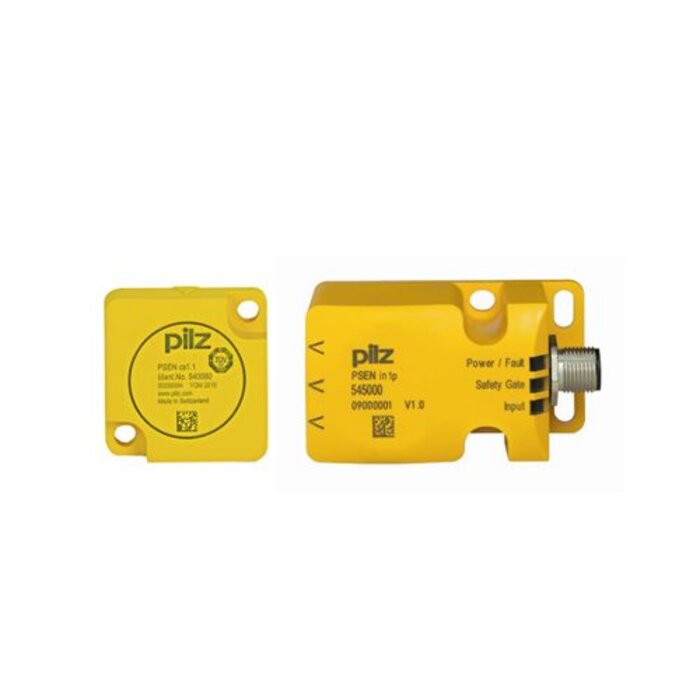

PilzNon-contact RFID safety sensor PSEN CS1
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
*Please be aware! Long delivery time. Alternative product: Mechan ODNK sensor
- Non-contact coded RFID safety sensor for use in machine guarding applications.
- Available in ATEX version.

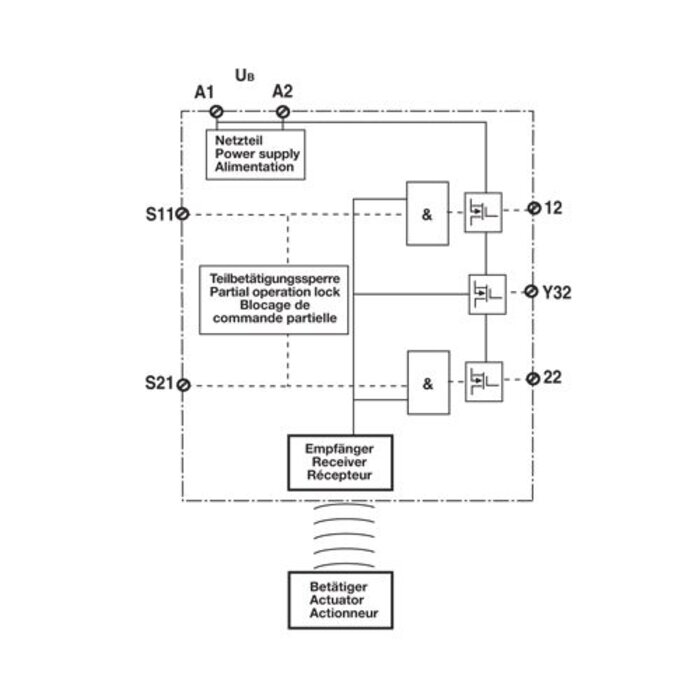

- Equipped with 2 safety contacts and 1 monitoring contact (2N/O - 1N/C).

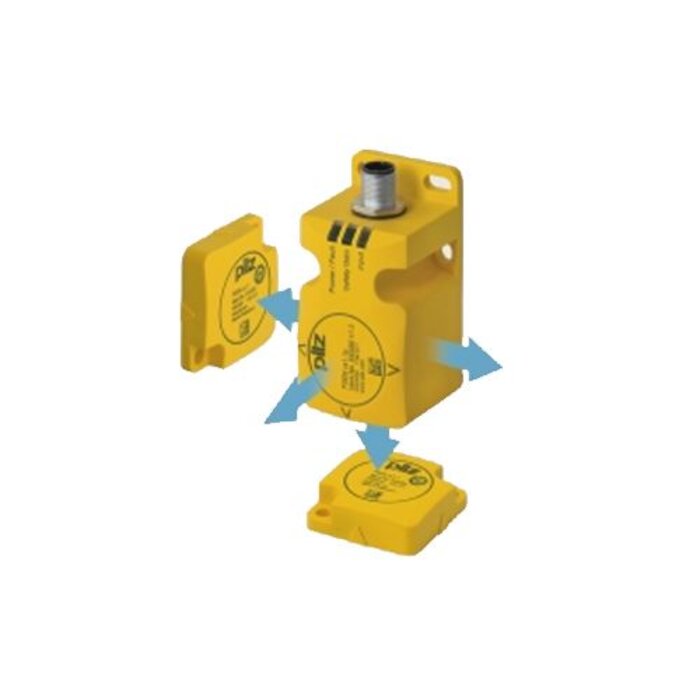

- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is not required.
- Dual simple diagnostics with 3 LEDs
- Tamper-resistant RFID system.
- Easy to mount.
- Manufactured from robust ABS.
- Both switch and actuator are fully sealed to IP67
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
| Typ | Connection | Item code |
| PSEN cs1.1p/PSEN cs1.1 | M12 8-pole | 540000 |
| PSEN cs1.13p/PSEN cs1.1 | M12 8-pole (ATEX) | 540005 |
| PSEN cs1.1n/PSEN cs1.1 | M12 5-pole | 540003 |
Specifications
- Brand: Pilz
- Article number: PSEN cs1.1p
- Type: Non-contact RFID
- Series: Pilz PSEN
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V DC
- Contact options: 2 N/O -1 N/C
- Housing: ABS

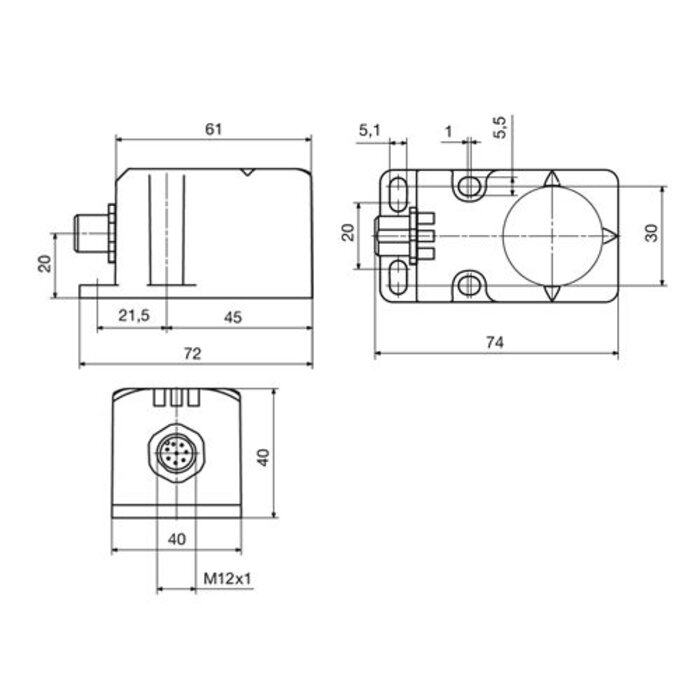

- Dimensions: 74 x 40 x40mm
- Cable Colour: Yellow

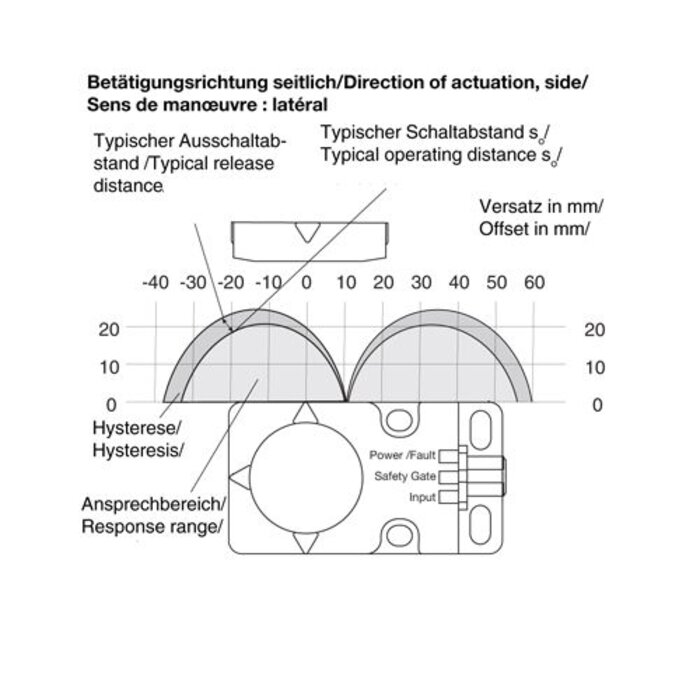

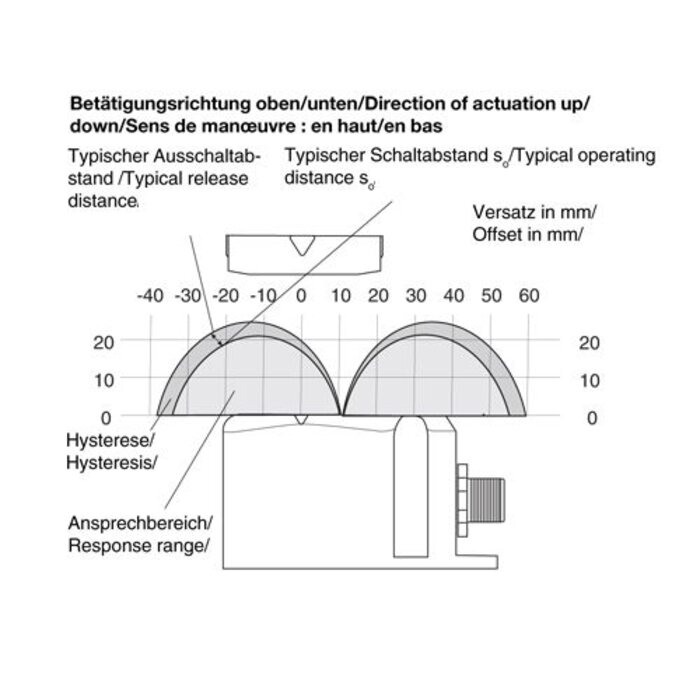

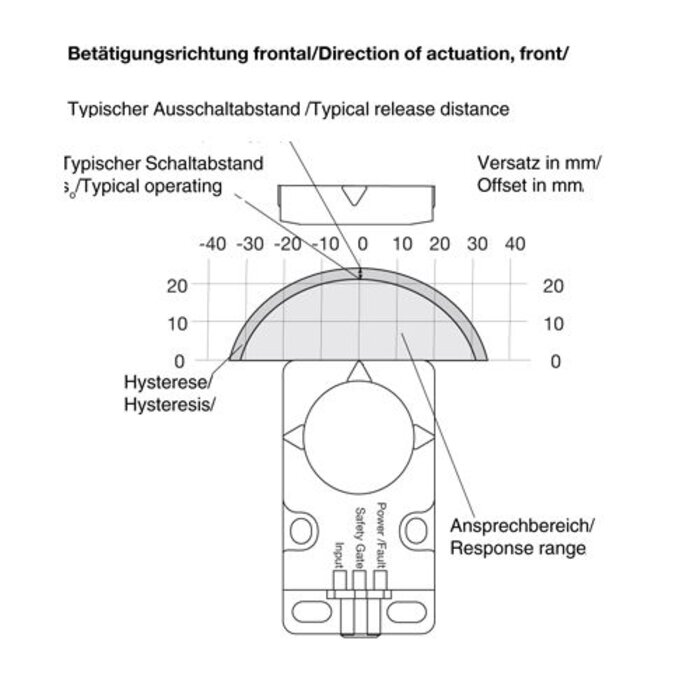

- Operating distance: 21mm
- Status LED: Yes (3)
- Operating temperature: -25°C to +70 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: -
- B10d: 100,000
- Explosion proof: Yes (Cs1.13p)
- Connection: Connector
