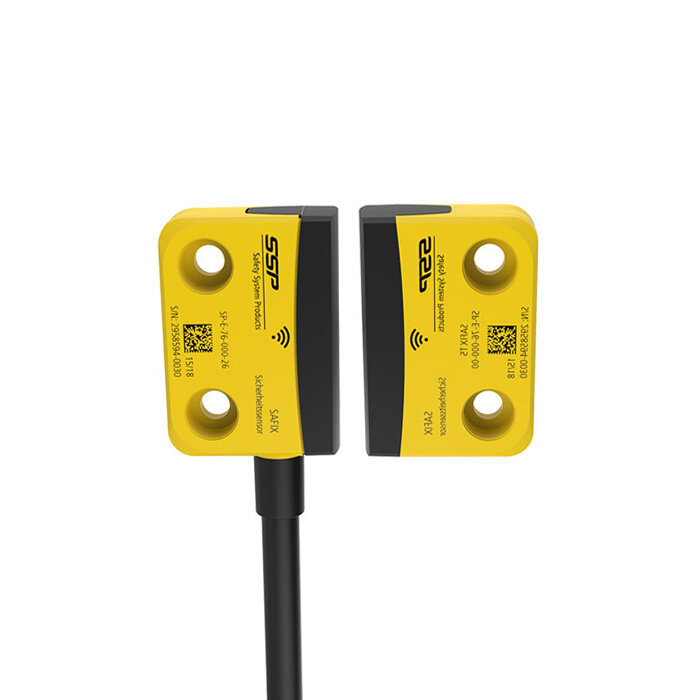

Name: Safety System Products Non-contact uniquely coded RFID safety sensor (re-teachable) SAFIX W3-X
Brand: Safety System Products
Price: 145.00 EUR
Availability: InStock

Description

Non-contact uniquely coded safety sensor for use in machine guarding applications.
Re-teachable: Bring the voltage back to 20V DC and offer the new actuator to pair it with the safety sensor.
Can be used as a coded safety switch according to EN ISO 14119:2013.
Manual reset.

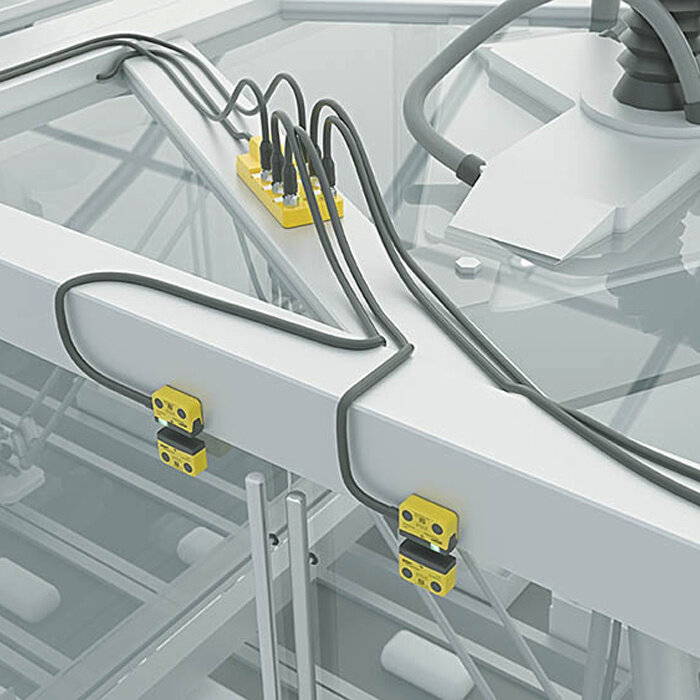

For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is not required.
OSSD Safety Sensors for wiring multiple sensors in series without compromising safety (max. 30 switches)
EDM / Start-input

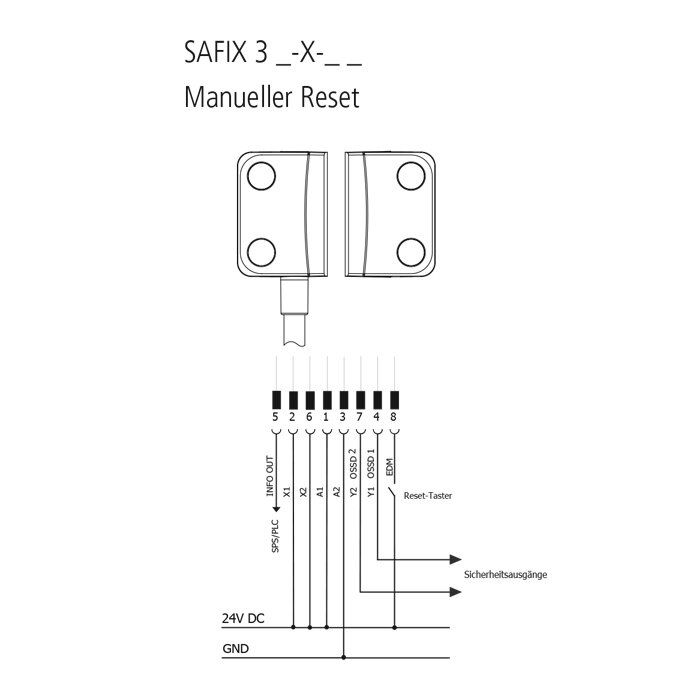

2 dual channel safety contacts and 1 monitoring contact.
24V DC +/- 10%.
Status LED in three colors.
Easy to mount.
Manufactured from robust PBT.
Both switch and actuator are fully sealed to IP67 and IP69K.
ECOLAB certified.
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Tamper resistant RFID system.

Specifications

Brand: Safety System Products
Article number: SAFIX W3-X-5M / T5
Type: Non-contact RFID
Series: SAFIX
CE-mark: Machinery Directive 2006/42/EC
UL: UL 508 Industrial control equipment
Operating voltage: 24V DC +/- 10%
Contact options: 2 N/O -1 N/C (OSSD)
Housing: PBT
Dimensions: 36 x 13 x 26mm (45g)
Cable Colour: Orange
Operating distance: 8mm - 18mm (12mm missalignment)
Status LED: Yes
Operating temperature: -25°C to +70 °C
IP rating: IP67 / IP69K (IEC/EN 60529)
MTTFd: > 20 Years
B10d: 2,000,000
Explosion proof: No
Connection: Pre-wired cable or QD
