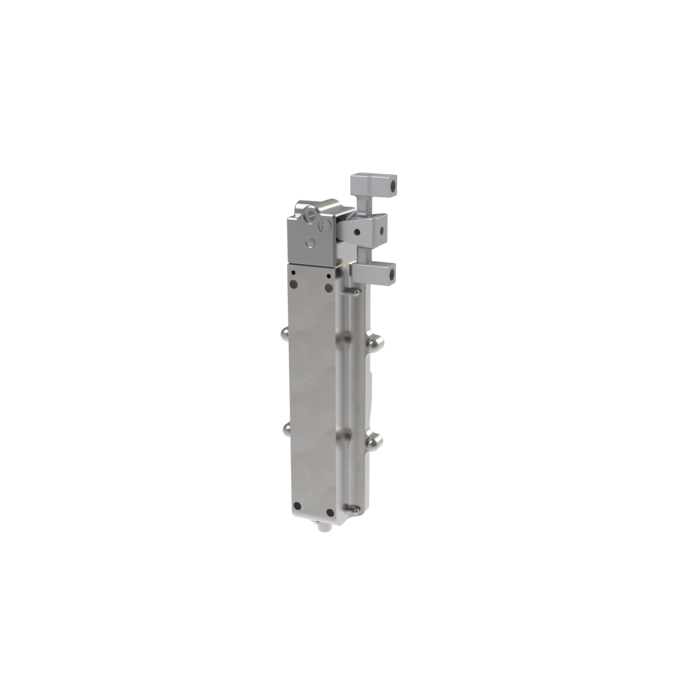

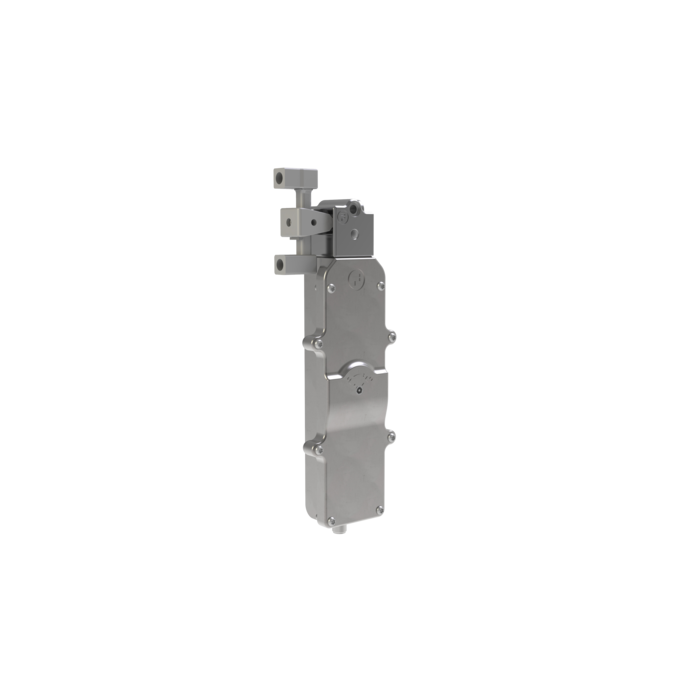

Fortress InterlocksExplosion-proof tongue-operated aluminium safety switch PLe
Safety switch for machine safety applications.
Suitable for Ex Zone 1 / 21 / 2 / 22/ (Ex II 2 G/D).
Can be used up to T6 temperature rating (NEC 505 CEC 18
ATEX / IECEx).
For securing revolving door, sliding doors and removable machine guards.
Suitable for applications with door locking (run-out time).
Large alignment tolerance (+/- 12mm).
Very robust and resistant to dust, vibration and dirt.
Tensile force of Max. 10,000 Newtons.
Protection class IP67 and IP69K
Can be used with safety control in PLe (EN ISO 13849-1) and SIL 3 (EN 62061) applications.
Only 1 unit required for PLe (EN ISO 13849-1).
Head rotatable in 4 90° steps.
Terminal connection.
Article code Alfred Monitoring locks and monitoring switches with up to three key modules:
EXPTA2S6XT401 / EXPTA4S6XT401
- Brand: Fortress Interlocks
- Article number: EXPTA2S6XT401
- Type: Safety interlock switch
- Series: amGard Pro
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC, 110V AC or 230V AC
- Solenoid voltage: -
- Contact options: 2 N/C + 1 N/O
- Housing: Powdercoated steel and stainless steel
- Cable Colour: Red, black and silver
- Status LED: Yes (2)
- Operating temperature: -5°C to +40 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 years
- B10d: 5,000,000
- Explosion proof: No
- Connection: Self wireable
- Operation: -
- Retention force: -
- Mech life cycle: 1,000,000
- Max. switch current: 3A
- Override key: No
