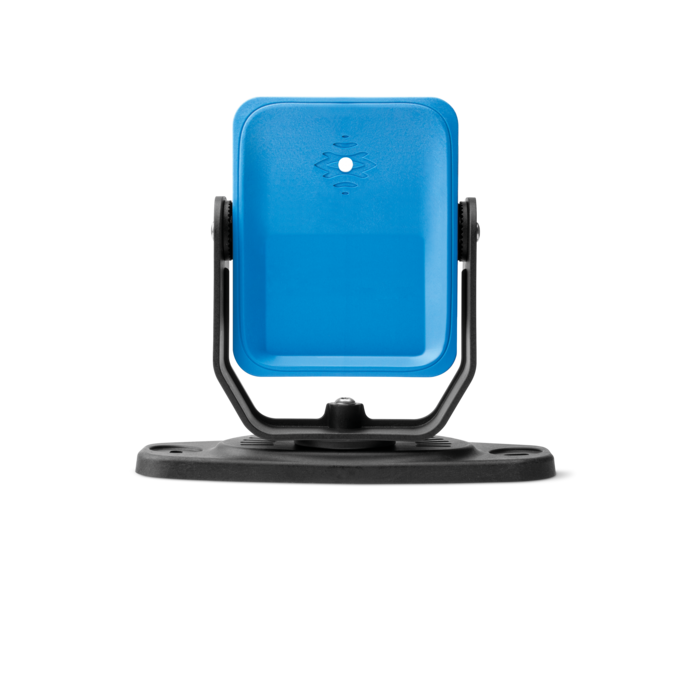

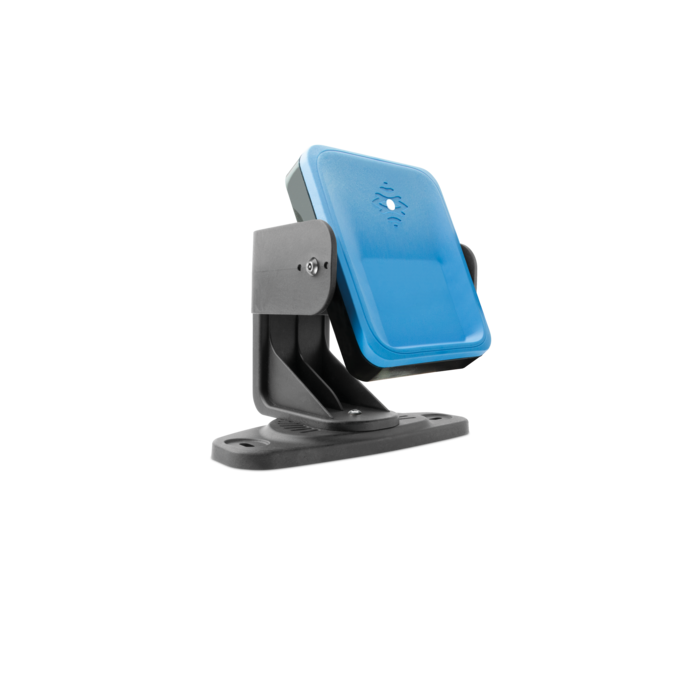

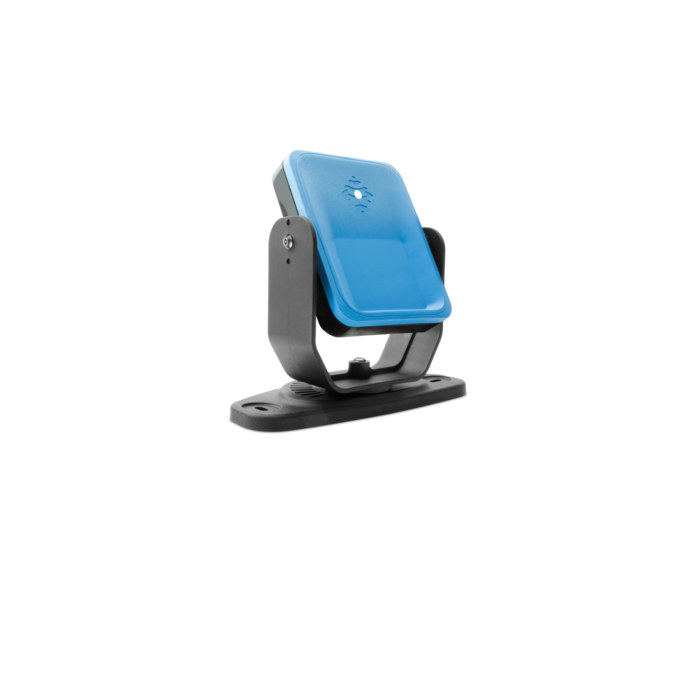

InxpectDynamic Sensor S203A-W for safety radar system Inxpect 200 SERIES

S201A-W Smart sensor for the 200 SERIES safety radar system by Inxpect with advanced field of view and 5-metre range and a vertical angular coverage of 12°

• Insensitive to dust, rain, light, dirt, steam and shock.
• Warning zone to signalize approaching objects.
• Restart blocking prevents the machine from restarting when people are in the safeguarded zone.
• The sensor can rotate on three axes (x,y,z).
• Highly suited for the industrial sector and small spaces.
• Advanced field of vision (symmetric, asymmetric, corridor)
• Free configurable field of view
  • 4 independent detection fields
  • Up to 5 meters horizontal plane: 10-100° (increments of 5°)
    Vertical Plane: 12°

• Max detection range of the sensor: 5m.
• Min detection range of the sensor: 0.2m.
• Max target speed: 2m/s.

The radar system is suitable for protection up to safety level PLd Cat. 3 per EN ISO 13849-1 or up to SIL 2 per EN 62061.
