Mechan ControlsRFID Safety interlock switch PROTON PLe

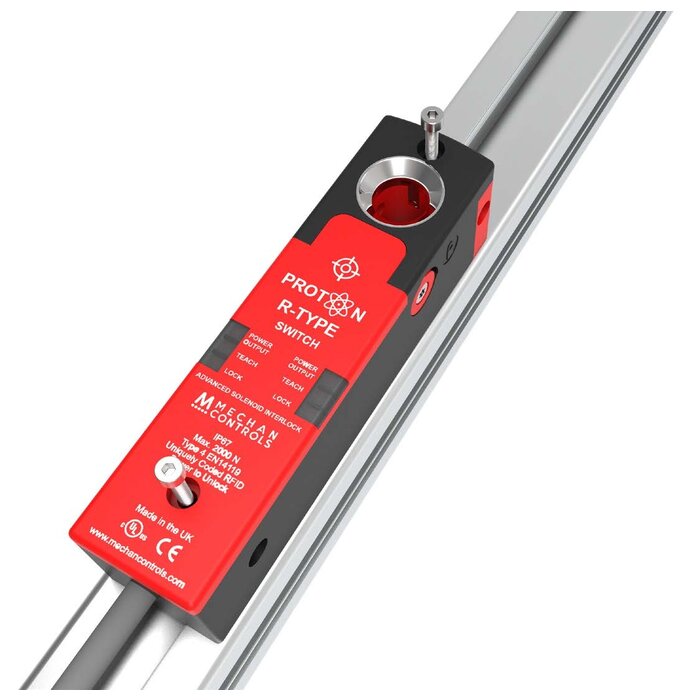

The R-Type Proton safety switch from Mechan Controls is a lockable, solenoid-controlled safety switch with a ball actuator. The RFID safety interlock is suitable for a variety of machine safety applications.

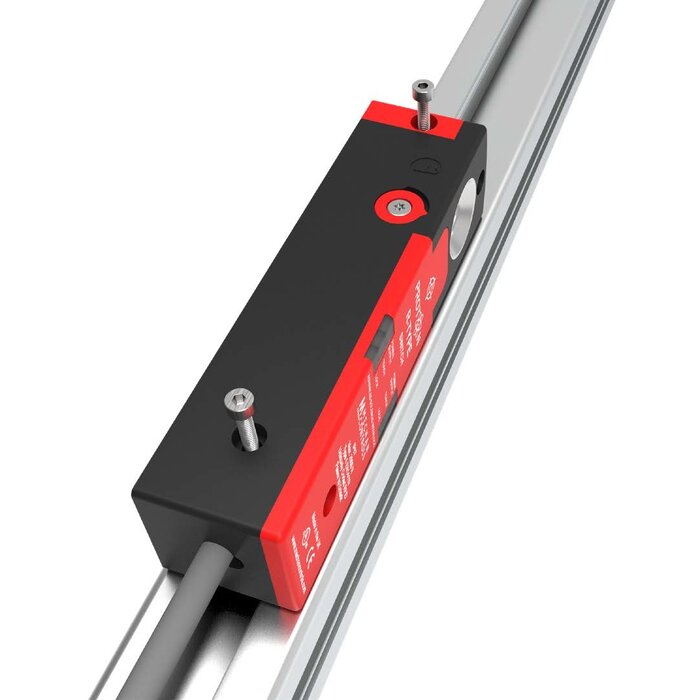

The unique mounting holes ensure easy installation on 3 sides, ideal for both hinged and sliding door applications.

• Suitable for safeguarding hinged doors, sliding doors and removable machine guards.
• Suitable for applications where door locking is required (e.g. run-on movements).
• Includes RGB indicator for advanced diagnostics - visible from all mounting positions.
• Material: Red ABS - reinforced with glass fibre & black ABS - reinforced with glass fibre
• Equipped with a high-coded RFID switch.
• Large alignment tolerance (15 degrees).
• Max. tensile force of 2,000 N.
• Resistant to dust, vibrations and debris.
• Sealed to IP67.
• Solenoid emergency release on 3 sides.
• Can be used in combination with safety controls in PLe (EN ISO 13849-1) and SIL 3 (EN 62061) applications.
• Only 1 unit is required for PLe (EN ISO 13849-1).
• Protection against manipulation, interference and sabotage.
• Power to unlock

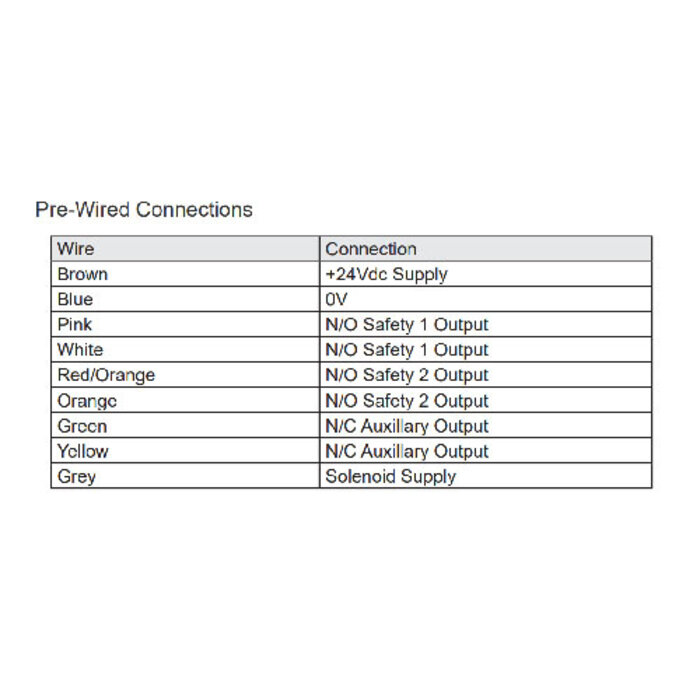

Available with different connections
R Type Proton safety switch with 3 m cable PROTON-R-21-24DC-03M
R Type Proton safety switch with 6 m cable PROTON-R-21-24DC-06M
R Type Proton safety switch with 10-metre cable PROTON-R-21-24DC-10M
