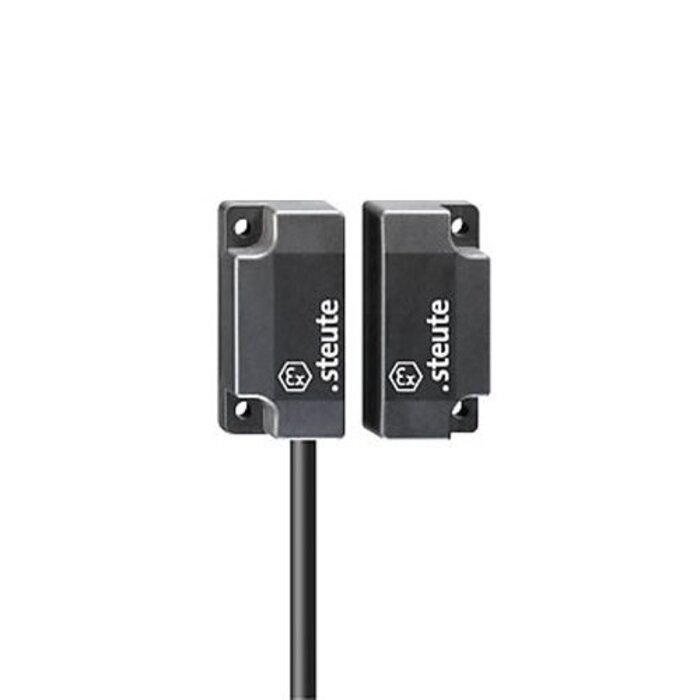

Name: Steute Ex HS Si 4 | Non-contact coded magnetic safety switch Thermoplastic enclosure
Brand: Steute
Price: 163.00 EUR
Availability: InStock

Description

Ex HS Si 4 Magnetically coded non-contact safety sensor for use in machine safety applications.

ATEX certified for gas Ex zones 1 & 2 and dust Ex zones 21 & 22
Suitable for the food industry
For securing hinged, sliding, and removable machine guards
Suitable for applications without door locking
Continuous monitoring of safety switches, whether doors are open or closed
Tamper protection through coded Hall sensors
Easy installation
Thermoplastic housing
Both switch and actuator sealed to IP67
Usable with safety controls in PLe (EN ISO 13849-1) and SIL 3 (EN 62061) applications

Typ	Material No.	Old material No.

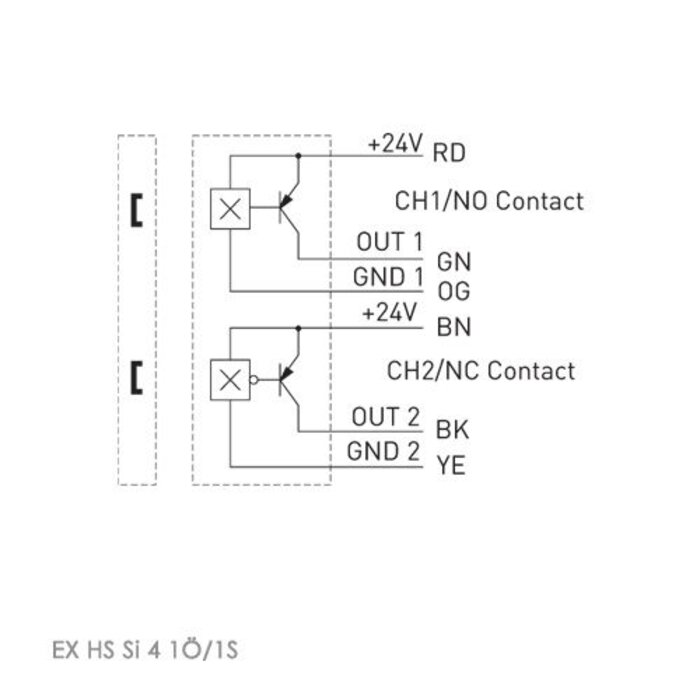

Ex HS Si 4 1Ö/1S - 2m	1189003	20463201
Ex HS Si 4 1Ö/1S - 5m	1187202	20463501
Ex HS Si 4 1Ö/1S - 10m	1185205	20463901

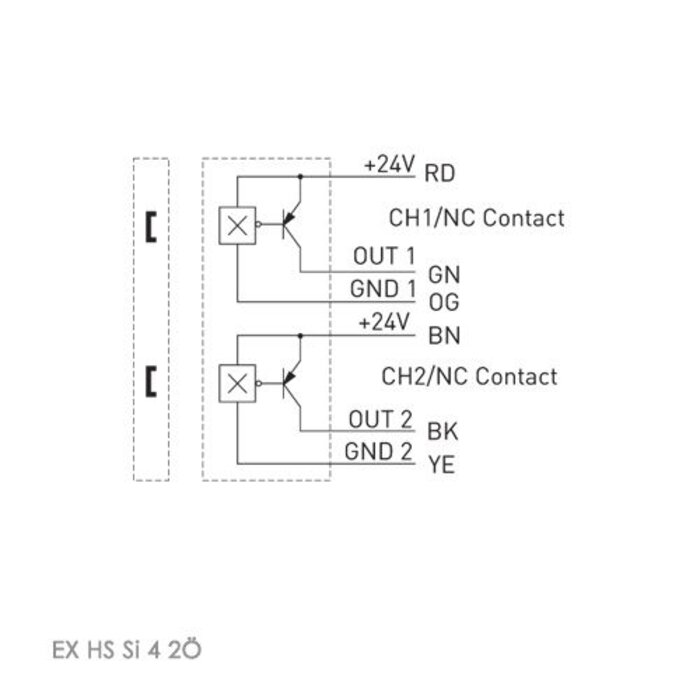

Ex HS Si 4 2Ö - 2m	1189005	20473201
Ex HS Si 4 2Ö - 5m	1188792	20473501
Ex HS Si 4 2Ö - 10m	1189918	20473901

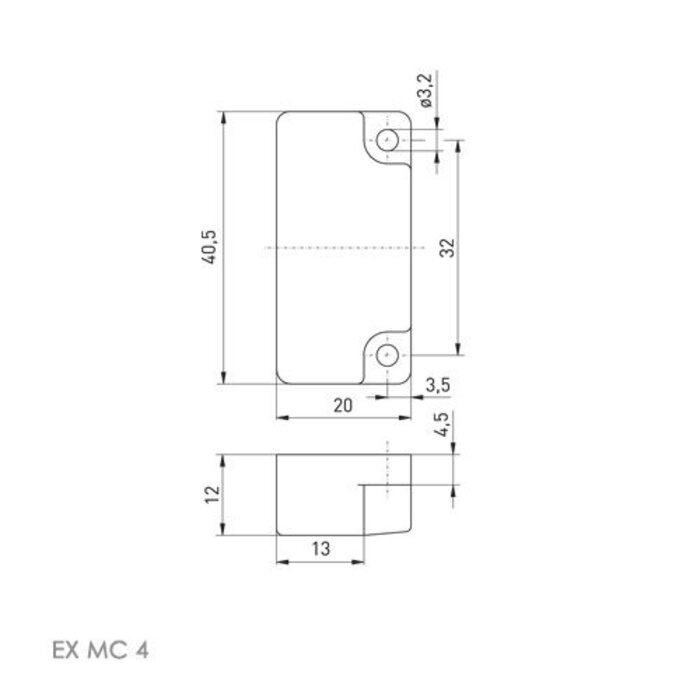

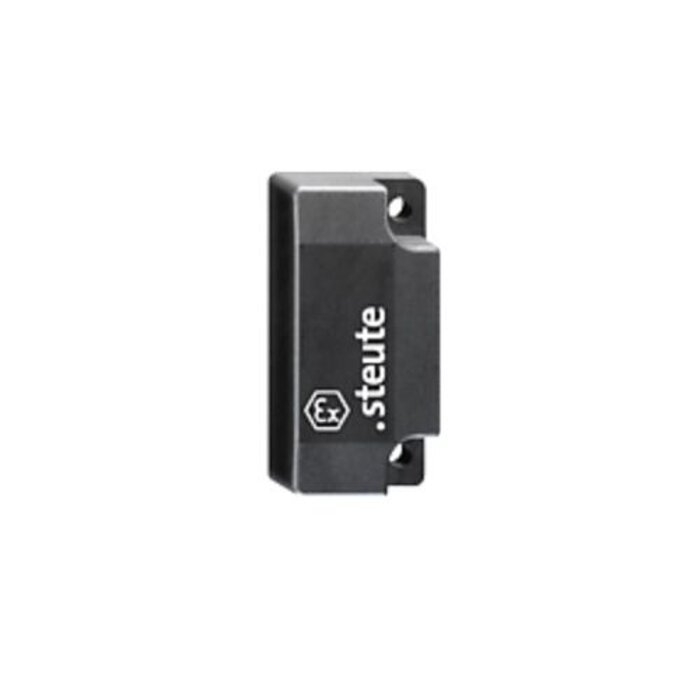

Ex MC 4	1182903	05.00.8222

Specifications

Brand: Steute
Article number: 1187202
Type: Non-contact magnetically coded
Series: Steute Extreme
CE-mark: Machinery Directive 2006/42/EC, 94/9/EC Explosion Proof Directive (ATEX 95)
UL: Class I, Zone 1, Ex mb II T6, Class II, DIP A21 TA 80°C
Operating voltage: 24V DC
Contact options: 1 N/C + 1 N/O or 2 N/C
Housing: Glass-fibre reinforced, shock-proof thermoplastic, self-extinguishing UL 94-V0

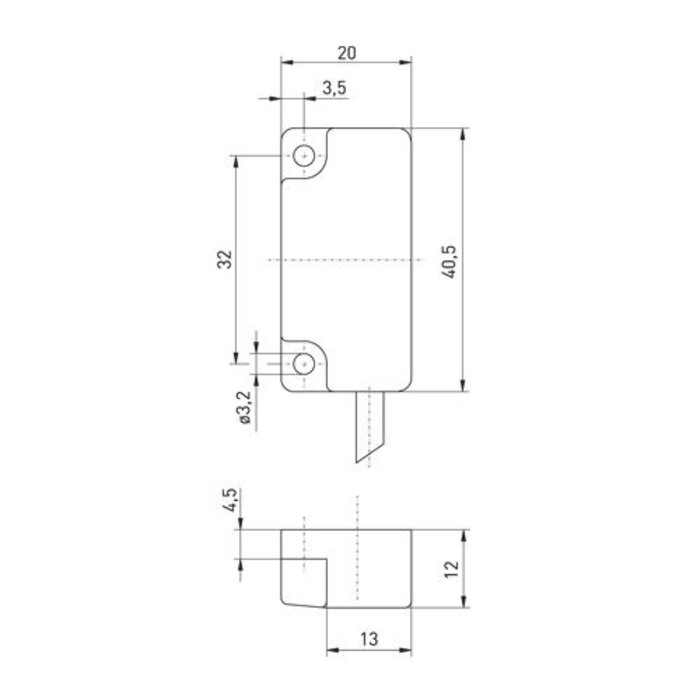

Dimensions: 40 x 20 x 12mm
Cable Colour: Black
Operating distance: 6mm - 20mm
Status LED: No
Operating temperature: -20°C to +60°C
IP rating: IP67 (IEC/EN 60529)
MTTFd: max. 20 years
B10d: 2,000,000
Explosion proof: II 2G Ex mb II T6, II 2D Ex mbD 21 T80 °C
Connection: Pre-wired cable
