Description

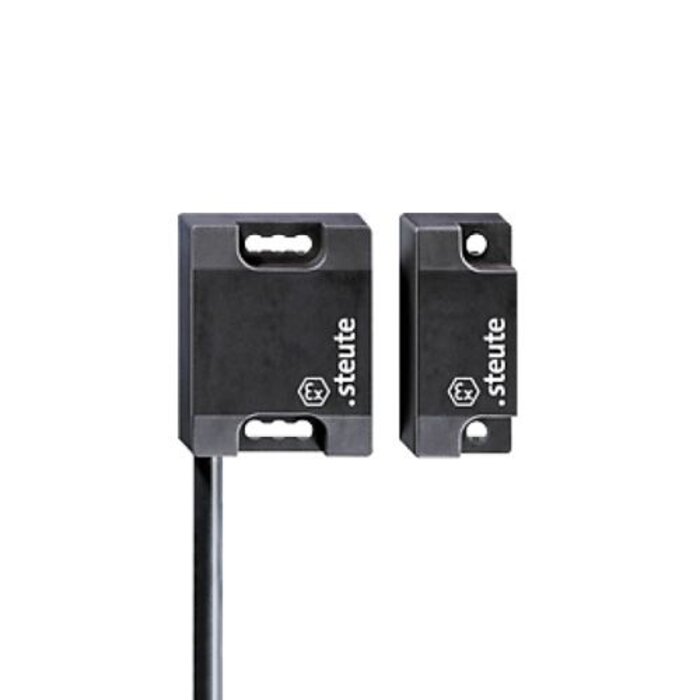

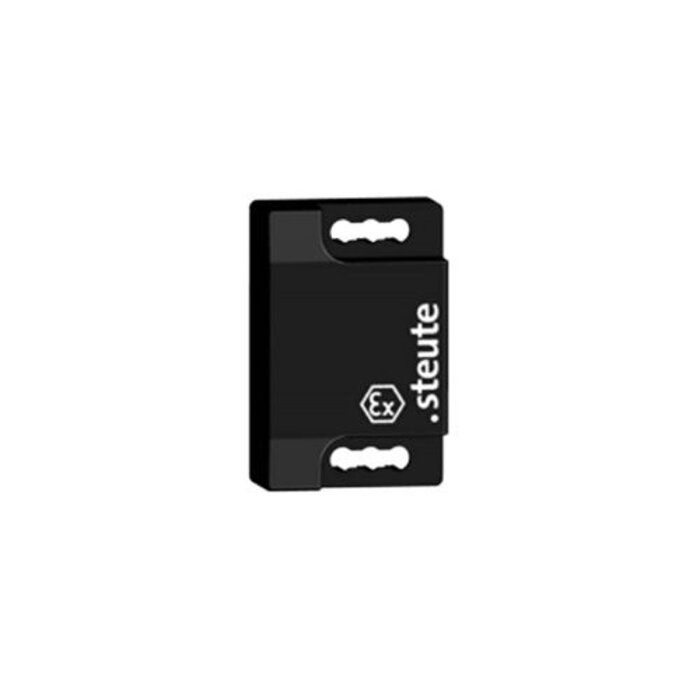

Ex Non-contact coded magnetic safety switch for use in machine guarding applications.

ATEX certified for use in gas-ex-zones 1 & 2 and dust-ex-zones 21 & 22

For monitoring the position of sliding, hinged and removable protective doors.

Suitable for applications where door locking is not required.

Safety switches are continuously monitored whether the guard is opened or not.

Tamper resistant Reed contacts (coded).

Easy to mount.

Manufactured from thermoplastic.

Both switch and actuator are fully sealed to IP67

In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Typ	Material No.	Old Material No.
Ex RC Si 56 1Ö/1S - 2m	1189255	25603201
Ex RC Si 56 1Ö/1S - 5m	1184598	25603502
Ex RC Si 56 1Ö/1S - 10m	1185923	25603902
Ex RC Si 56 2Ö - 2m	1189262	25653201
Ex RC Si 56 2Ö - 5m	1184620	25653503
Ex RC Si 56 2Ö - 10m	1184434	25653902
Ex MC 56	1180986	05.00.8218
Ex MC 56-3	1181408	05.00.8219
Distanzplatte RC Si 56	1184876	03.56.5302
Distanzplatte MC 56	1184875	03.56.5301

Specifications

Brand: Steute
Article number: Ex RC Si 56 1Ö/1S - 2m
Type: Non-contact magnetically coded
Series: Steute Extreme
CE-mark: Machinery Directive 2006/42/EC, 94/9/EC Explosion Proof Directive (ATEX 95)
UL: Class I, Zone 1, Ex mb II T6, Class II, DIP A21 TA 80°C
Operating voltage: 24V DC

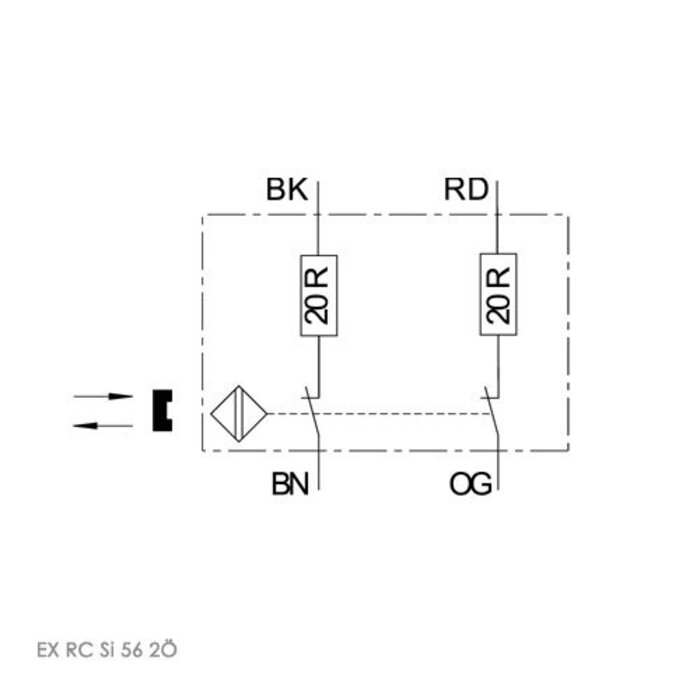

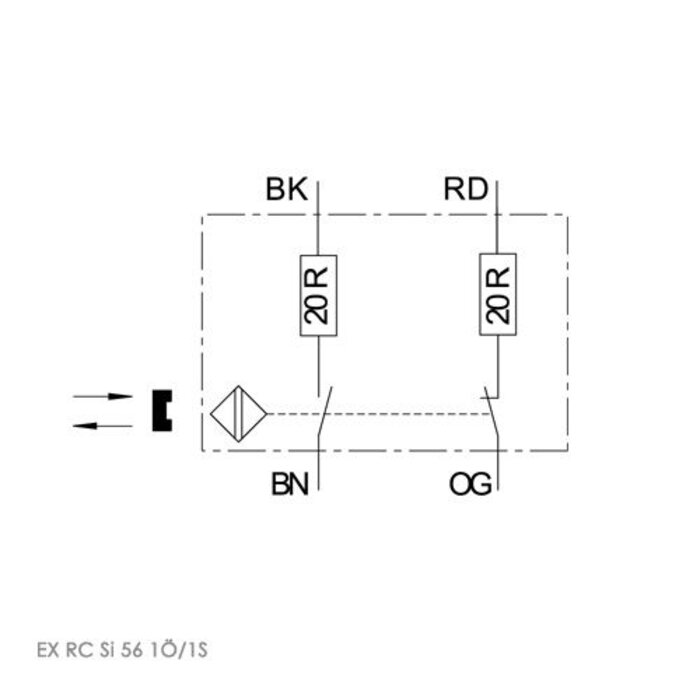

Contact options: 1 N/C + 1 N/O or 2 N/C
Housing: Glass-fibre reinforced, shock-proof thermoplastic, self-extinguishing UL 94-V0

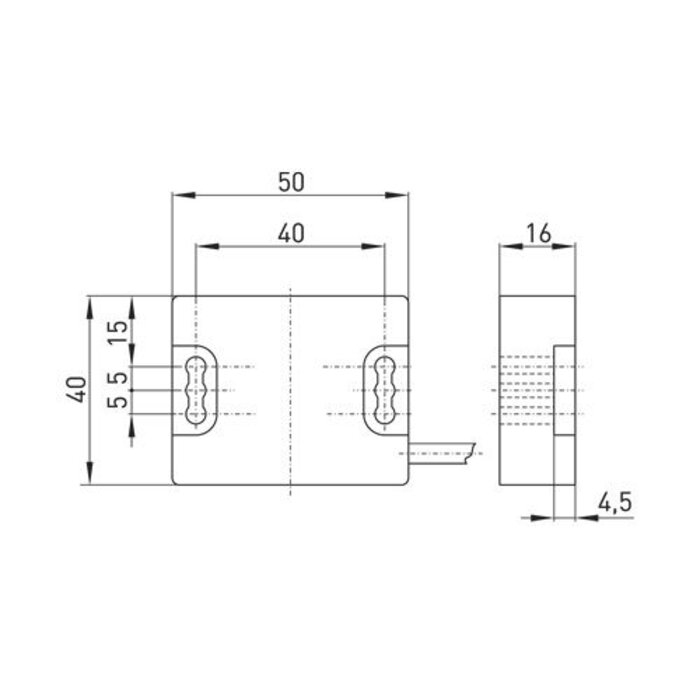

Dimensions: 40 x 50 x 16mm
Cable Colour: Black
Operating distance: 6mm - 23mm
Status LED: No
Operating temperature: -20°C to +70°C
IP rating: IP67 (IEC/EN 60529)
MTTFd: max. 20 years
B10d: 2,000,000
Explosion proof: II 2G Ex mb II T6, II 2D Ex mbD 21 T80 °C
Connection: Pre-wired cable
