Description

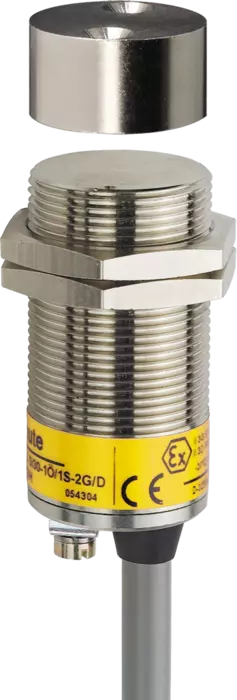

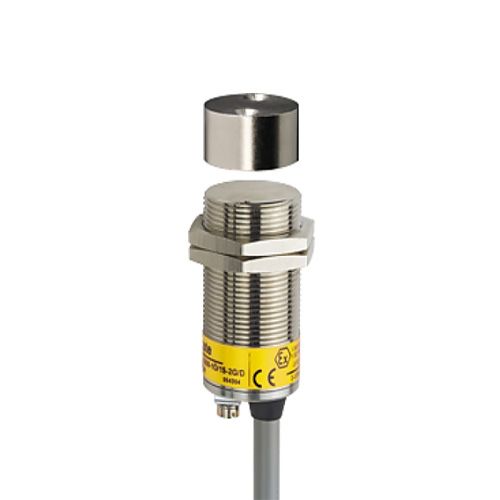

Ex Non-contact coded magnetic stainless steel barrel mount (M30) safety switch for use in machine guarding applications.

ATEX certified for use in gas-ex-zones 1 & 2 and dust-ex-zones 21 & 22

For monitoring the position of sliding, hinged and removable protective doors.

Suitable for applications where door locking is not required.

Safety switches are continuously monitored whether the guard is opened or not.

Tamper resistant Reed contacts (coded).

Manufactured from stainless steel 1.4571

Both switch and actuator are fully sealed to IP67.

In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Typ	Material No.	Old Material No.
Ex RC Si M30 1Ö/1S-B IP69K-NIRO 1m	1186818	23003105

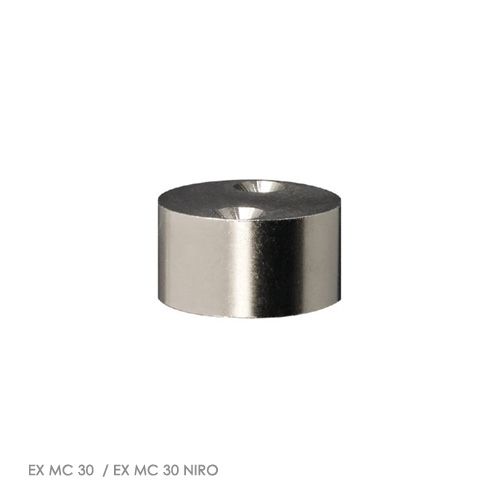

Ex MC 30 Niro	1181818	05.00.8216

Specifications

Brand: Steute
Article number: Ex RC Si M30 1Ö/1S-B IP69K-NIRO 1m
Type: Non-contact magnetically coded
Series: Steute Extreme
CE-mark: Machinery Directive 2006/42/EC, 94/9/EC Explosion Proof Directive (ATEX 95)
UL: Class I, Zone 1,Ex mb II T6, Class II, DIP A21 TA 80°C, IP67
Operating voltage: 30V DC

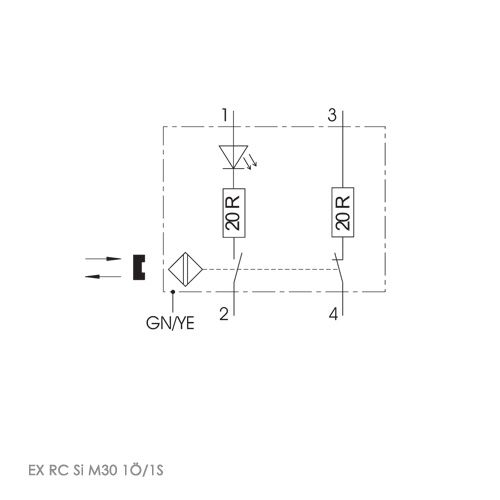

Contact options: 1 N/C + 1 N/O
Housing: Stainless steel 1.4571

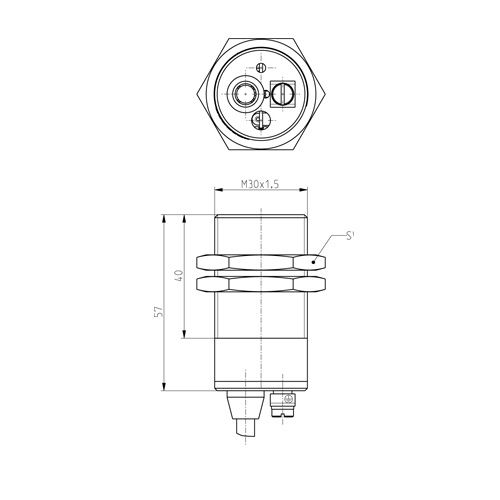

Dimensions: M30 x 57mm
Cable Colour: Silver
Operating distance: 8mm - 24mm
Status LED: No
Operating temperature: -20°C to +70°C
IP rating: IP69K (IEC/EN 60529)
MTTFd: > 100 Years
B10d: 2,000,000
Explosion proof: II 2G Ex mb II T6 Gb, II 2D Ex mb IIIC T80°C Db IP67
Connection: 1m Pre-wired cable
