Art: Ex RC Si M30 1Ö/1S - 5m
SteuteNon-contact coded magnetic barrel mount (M30) safety switch Ex
Show all:
Magnetic Safety Switches,Safety Sensors
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description

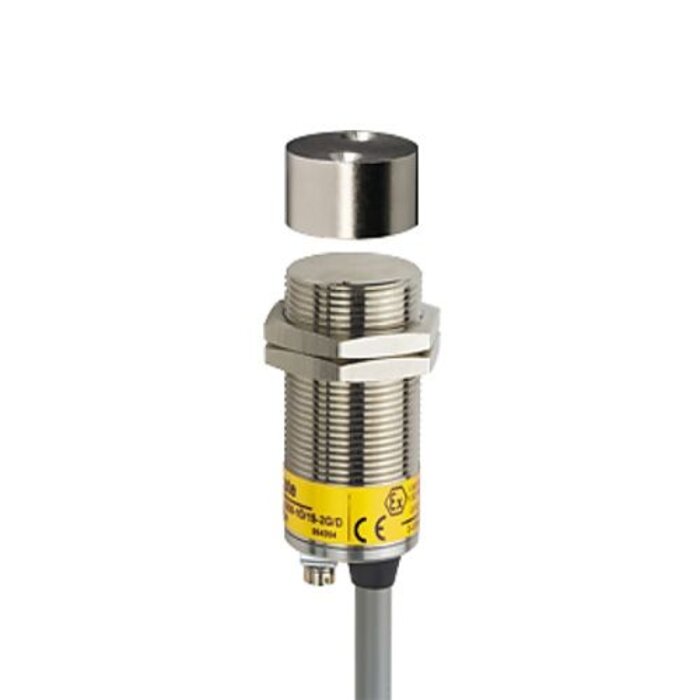

Ex Non-contact coded magnetic barrel mount (M30) safety switch for use in machine guarding applications.
ATEX certified for use in gas-ex-zones 1 & 2 and dust-ex-zones 21 & 22
For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is not required.
Safety switches are continuously monitored whether the guard is opened or not.
Tamper resistant Reed contacts (coded).
Manufactured from nickled brass.
Both switch and actuator are fully sealed to IP67.
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Typ | Material No. | Old Material No. |
Ex RC Si M30 1Ö/1S - 2m | 1179282 | 23003201 |
Ex RC Si M30 1Ö/1S - 5m | 1179281 | 23003502 |
Ex RC Si M30 1Ö/1S - 10m | 1179392 | 23003903 |
Ex RC Si M30 2Ö - 2m | 1186768 | 23053201 |
Ex RC Si M30 2Ö - 5m | 1182129 | 23053501 |
Ex RC Si M30 2Ö - 10m | 1185005 | 23053901 |

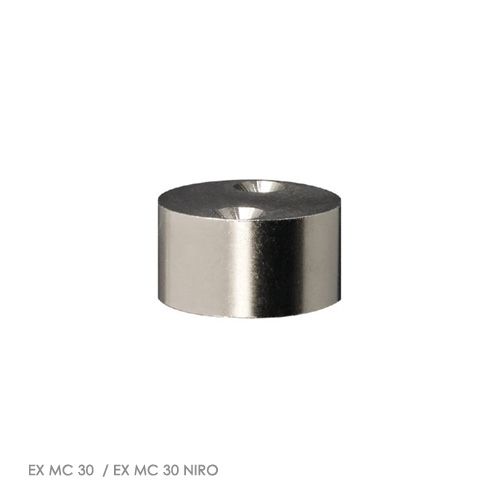

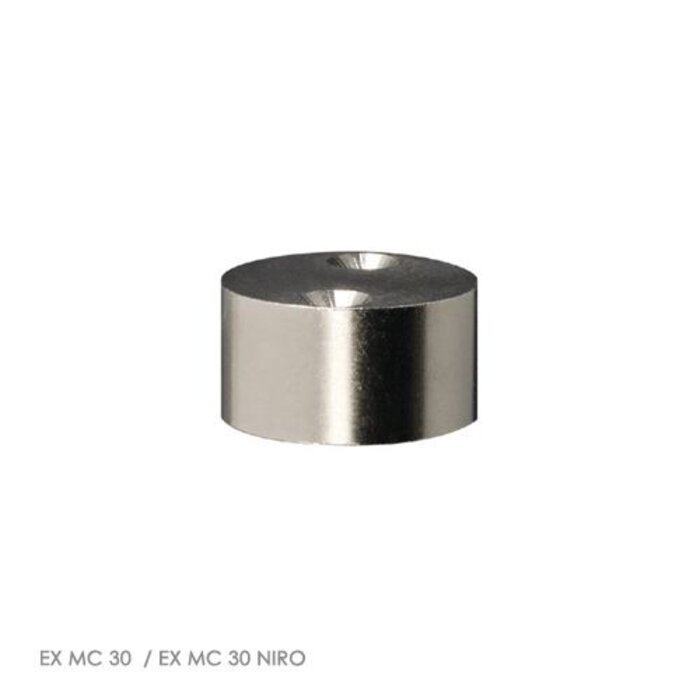

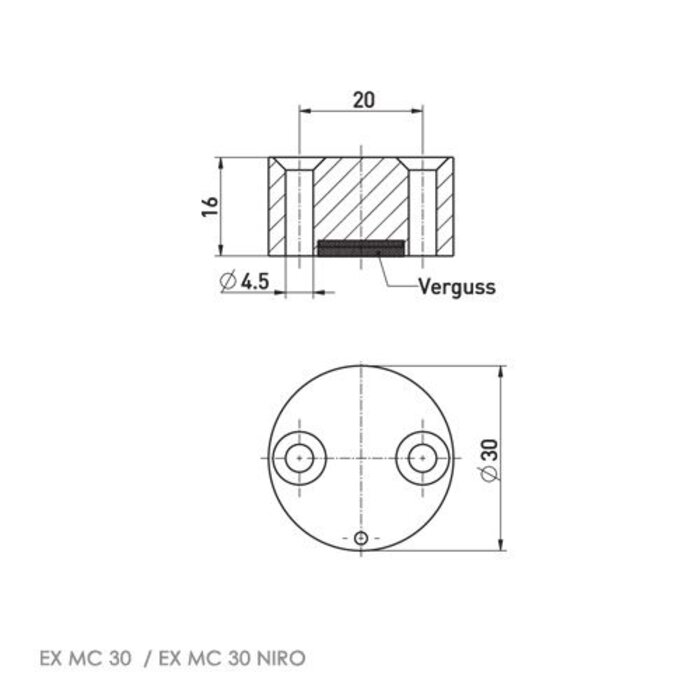

Ex MC 30 | 1180333 | 05.00.8213 |
Specifications
- Brand: Steute
- Article number: Ex RC Si M30 1Ö/1S - 5m
- Type: Non-contact magnetically coded
- Series: Steute Extreme
- CE-mark: Machinery Directive 2006/42/EC, 94/9/EC Explosion Proof Directive (ATEX 95)
- UL: Class I, Zone 1,Ex mb II T6, Class II, DIP A21 TA 80°C, IP67
- Operating voltage: 24V DC

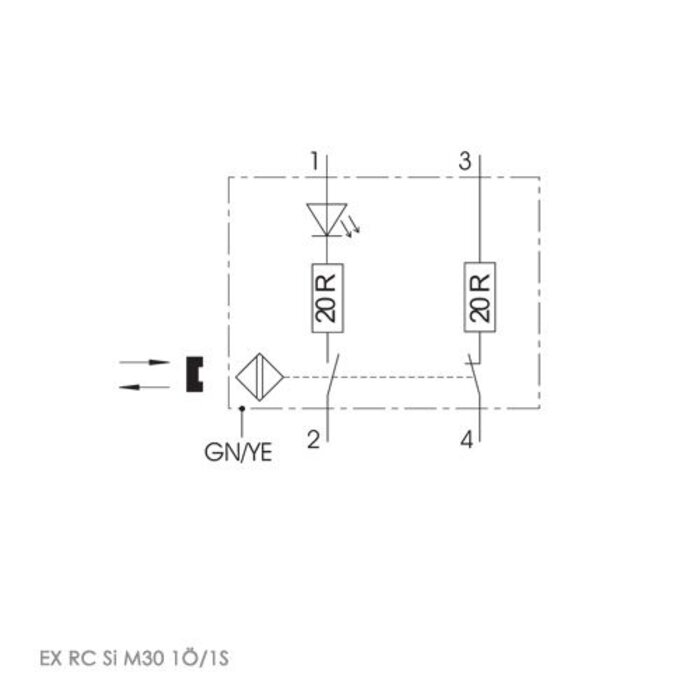

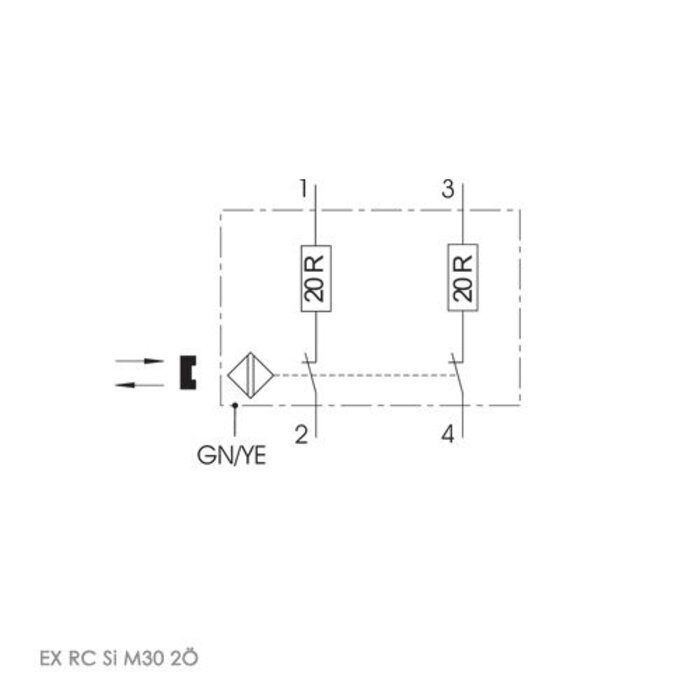

- Contact options: 1 N/C + 1 N/O or 2 N/C
- Housing: Brass, nickeled

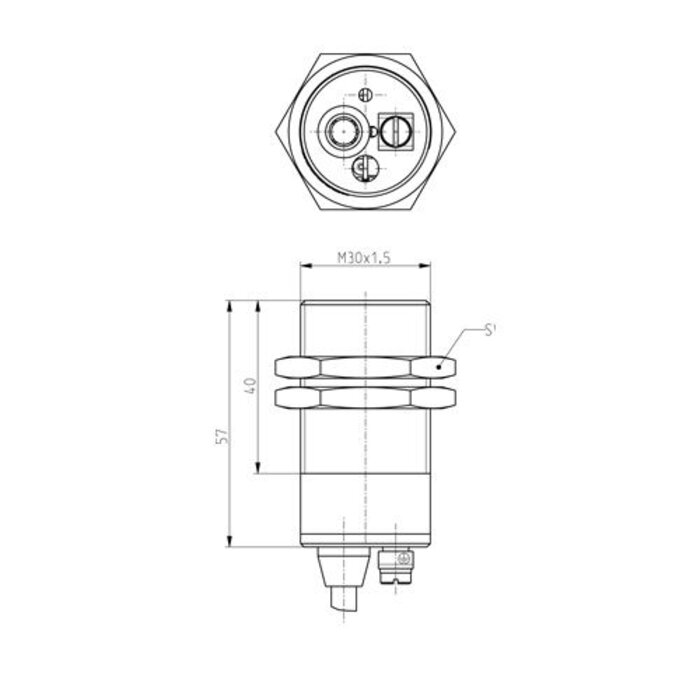

- Dimensions: M30 x 57mm
- Cable Colour: Silver
- Operating distance: 8mm - 24mm
- Status LED: No
- Operating temperature: -20°C to +70°C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 Years
- B10d: 2,000,000
- Explosion proof: II 2G Ex mb II T6 Gb, II 2D Ex mb IIIC T80°C Db IP67
- Connection: Pre-wired cable
