Description

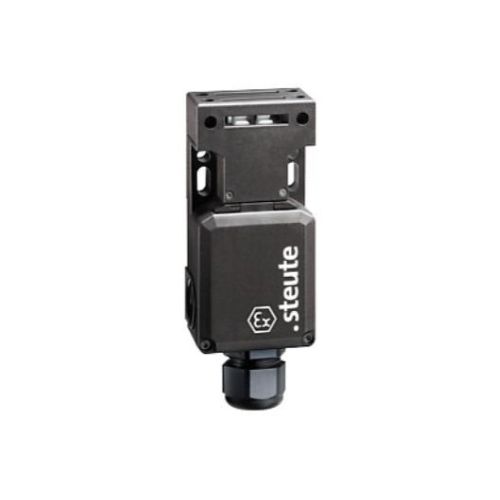

Actuator operated safety interlock switch for use in machine guarding applications.

ATEX certified for use in gas-ex-zones 1 & 2 and dust-ex-zones 21 & 22.

For monitoring the position of sliding, hinged and removable protective doors.

Suitable for applications where door locking is not required (e.g. without run-on movements).

Fully sealed to IP65.

In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Glass-fibre reinforced thermoplastic enclosure.

Available with wiring compartment or 5m pre-wired cable.

Version with 5N or 30N latching force available.

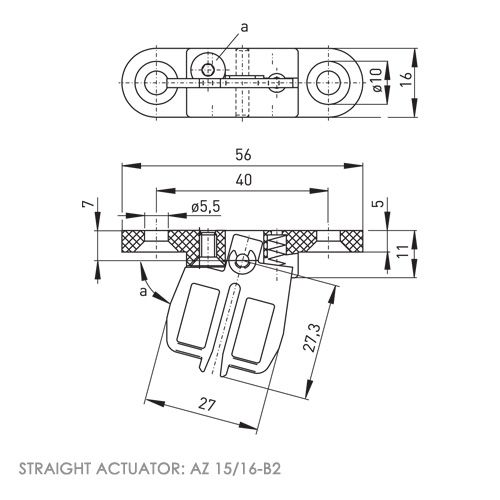

Different actuators available (AZ 15/16-B1, AZ 15/16-B2 or AZ 15/16-B3).

Type	Material No.	Old material No.

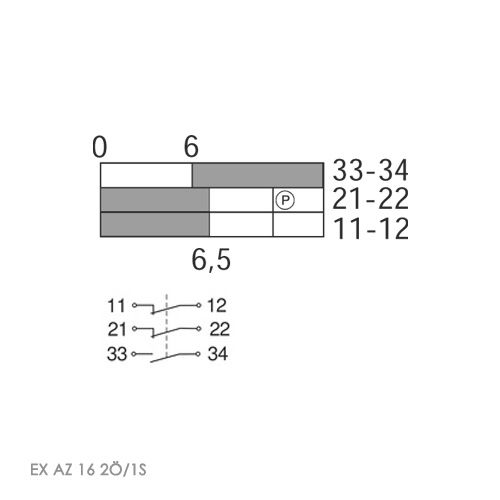

Ex AZ 16 2Ö/1S	1210562	-
Ex AZ 16 2Ö/1S-5N	1210564	-
Ex AZ 16 2Ö/1S-30N	1210566	-

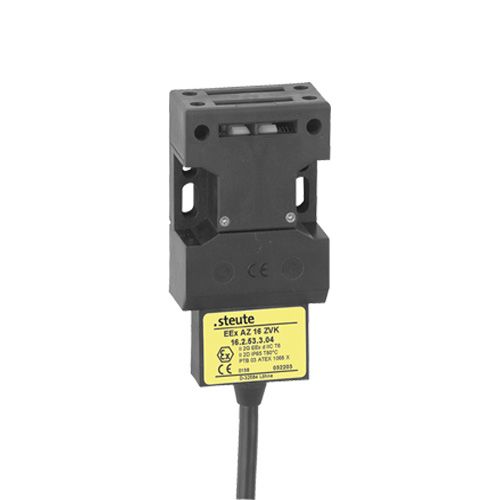

Ex AZ 16 1Ö/1S - 5m	1172484	16253303
Ex AZ 16 1Ö/1S-5N - 5m	1178788	16253910
Ex AZ 16 1Ö/1S-30N - 5m	1172264	16253301

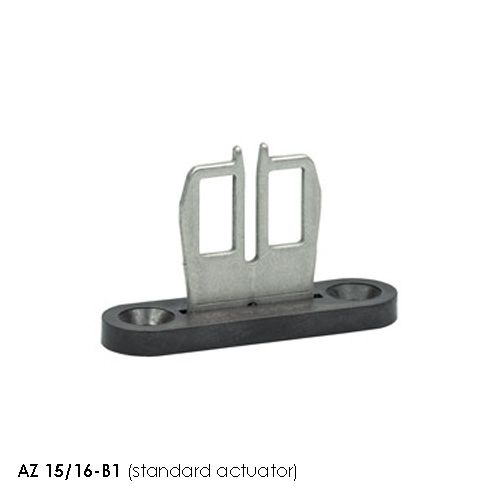

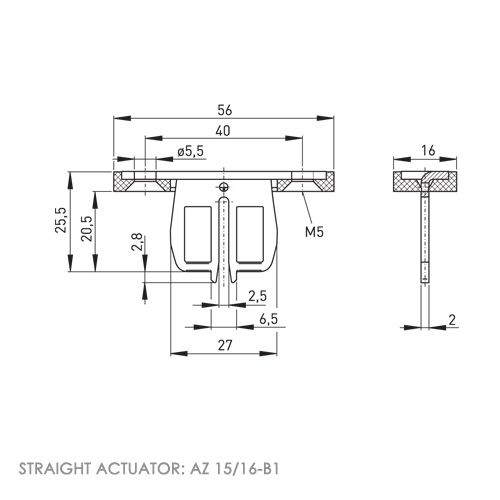

AZ 15/16-B1	1172495	01.08.0187

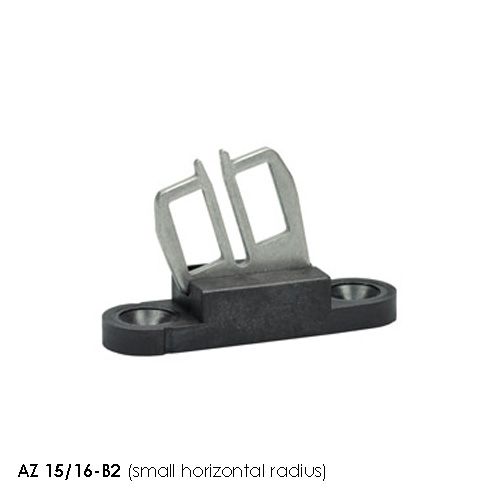

AZ 15/16-B2	1172616	01.08.0188

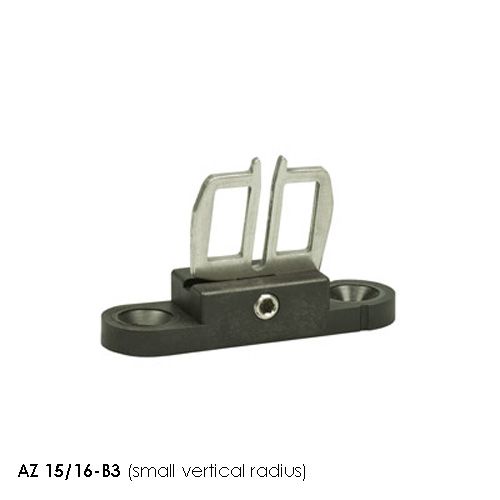

AZ 15/16-B3	1172617	01.08.0189

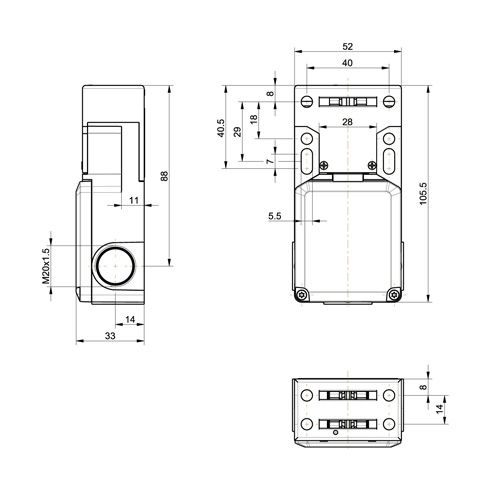

Specifications

Brand: Steute
Article number: 1210562
Type: Safety interlock switch Ex
Series: Steute Extreme
CE-mark: Machinery Directive 2006/42/EC
UL: UL 508 Industrial control equipment
Operating voltage: 24V DC
Solenoid voltage: -

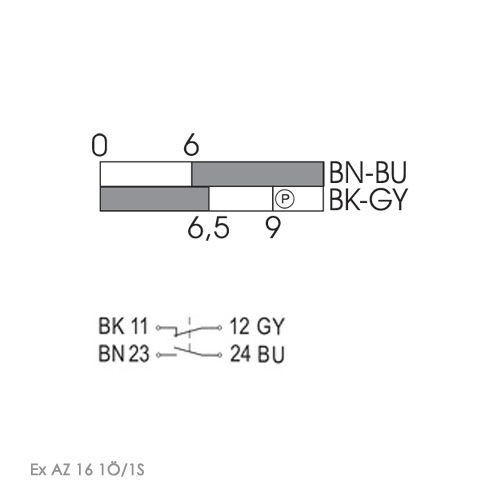

Contact options: 1 N/C + 1 N/O or 2 N/C + 1 N/C
Housing: Glass-fibre reinforced, shock-proof thermoplastic, self-extinguishing UL 94-V0
Cable Colour: Black
Status LED: No
Operating temperature: -20°C to + 65°C (2 contacts) or -20°C to + 55°C (3 contacts)
IP rating: IP65 (IEC/EN 60529)
MTTFd: -
B10d: 2,000,000
Explosion proof: II 2G Ex d IIC T6/T5 Gb (2 contacts) or II 2G Ex de IIC T6/T5 Gb (3 contacts)
Connection: Wiring compartment or 5m pre-wired cable
Operation: -
Retention force: None, 5N or 30N
Mech life cycle: > 1,000,000
Max. switch current: 6A (2 contacts) or 3A (3 contacts)
Override key: -
