SteuteEx ES 98 ST | Actuator operated safety interlock switch Ex

Ex ES 98 ST | Actuator operated safety interlock switch for use in machine guarding applications.

• ATEX certified for use in gas-ex-zones 1 & 2 and dust-ex-zones 21 & 22.
• For monitoring the position of sliding, hinged and removable protective doors.
• Suitable for applications where door locking is not required (e.g. without run-on movements).
• Fully sealed to IP65.
• In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
• Metal enclosure.
• With wiring compartment.
• Different actuators available (AZ 335/355-B1, AZ 335/355-B5 or AZ 335/355-B6).
• Design conform to EN 50041



Available with the following actuators:

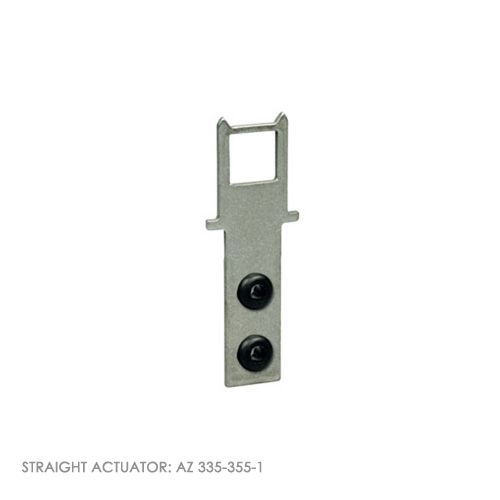

• AZ 335/355-B1 Straight actuator
• AZ 335/355-B5 Angled actuator
• AZ 335/355-B6 Flexible actuator
