Explosion Proof actuator operated safety interlock switch PLe

0 reviews

in stock

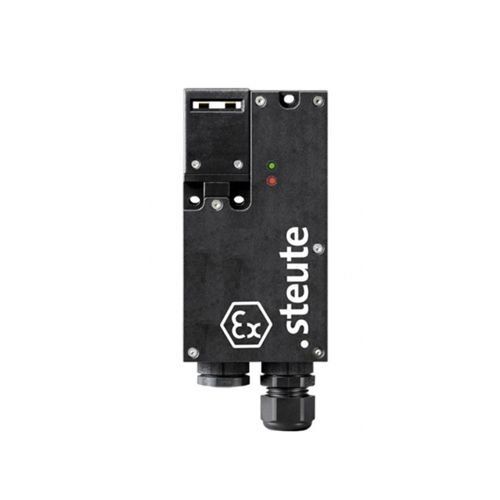

Steute Ex actuator operated composit safety switch with guard locking, designed for use in Ex Zones 1, 2, 21 und 22.

Article code Ex STM 295 1Ö1S/1Ö1S-R-FE

€592,00

(€716,32 Incl. tax)

Article code Ex STM 295 1Ö1S/1Ö1S-R-FE

Operation:

Actuator:

Buy 2 for €562,40 each and save 5%
Buy 5 for €532,80 each and save 10%
Buy 10 for €518,00 each and save 12,5%

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description

Actuator operated solenoid safety interlock switch Ex for use in machine guarding applications.
ATEX / IECEx certified for use in gas-ex-zones 1 & 2 and dust-ex-zones 21 & 22.
For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is required (e.g. run-on movements).
Fully sealed to IP64.
Thermoplastic reinforced enclosure.
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

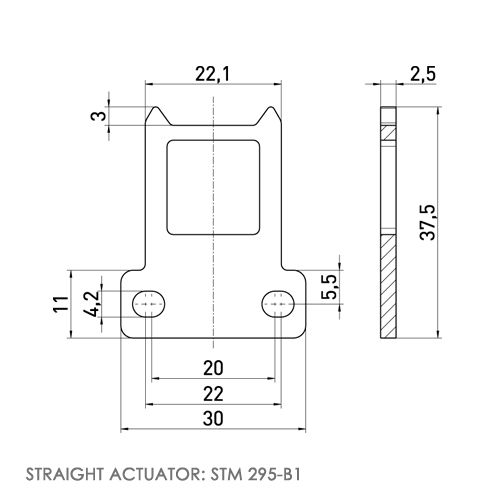

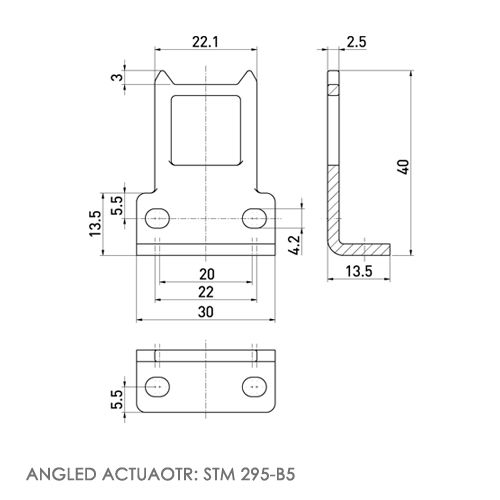

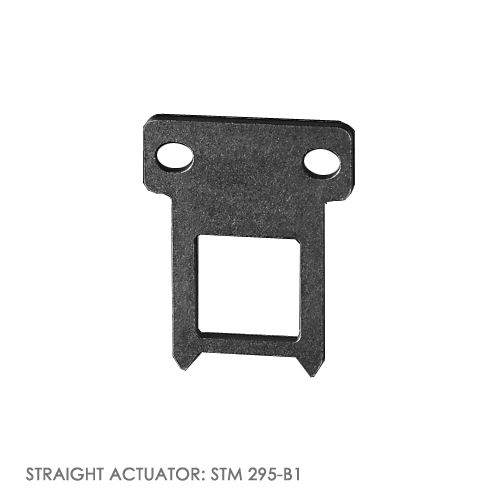

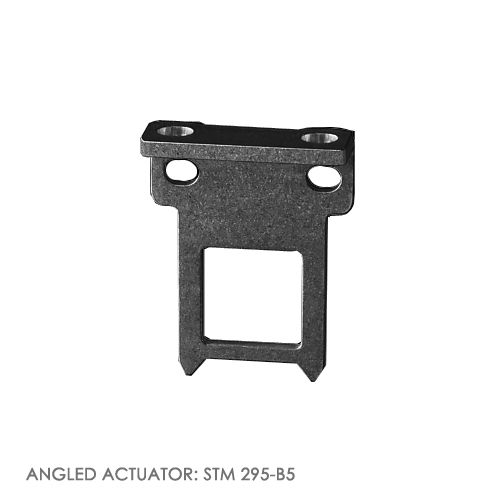

Different actuators available (STM-295-B1, STM-295-B5 en STM 295-B6).

Type	Material No.	Old Material No.
Ex STM 295 1Ö1S/1Ö1S-R-FE	1186394	95353308
Ex STM 295 1Ö1/1Ö1S-A	1184799	95353305
STM 295-B1	1183481	04.95.1233
STM 295-B5	1183470	04.95.1234
STM 295-B6	1435030	-

Specifications

Type:	Solenoid safety interlock Ex
Series:	Steute Extreme
CE-mark:	94/9/EC Explosion Proof Directive (ATEX 95)
UL:	UL 508 Industrial control equipment
Operating voltage:	24V DC
Solenoid voltage:	24V DC
Contact options:	1N/O / 1 N/C + 1N/O / 1 N/C
Housing:	Glass-fibre reinforced, shock-proof thermoplastic, self-extinguishing UL 94-V0
Color:	Black
Status LED:	Yes (2)
Operating temperature:	-20°C to +55 °C
IP rating:	IP64 (IEC/EN 60529)
MTTFd:	-
B10d:	1,000,000
Explosion proof:	II 2G Ex demb IIC T4 Gb, II 2D Ex tD A21 IP64 T100 °C
Connection:	Self wireable

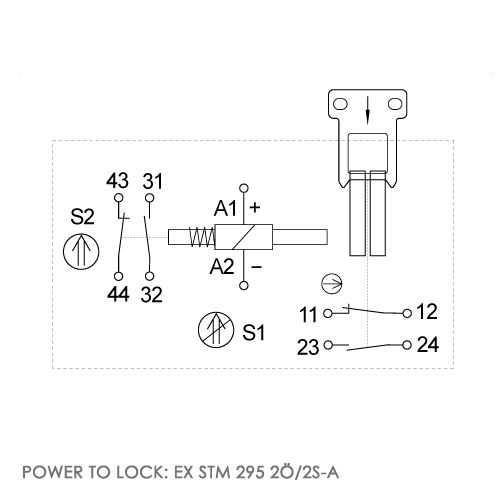

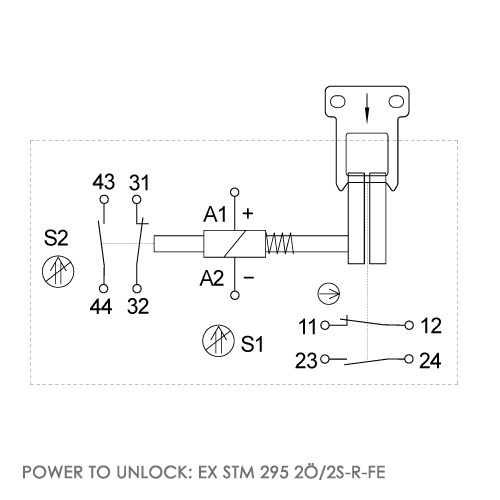

Operation:	Power to lock or Power to unlock
Retention force:	1,000N
Mech life cycle:	> 500,000
Max. switch current:	3A
Override key:	Yes (ordered separately: M5)
