Art: THCETPXPXPXPXQ8
Fortress InterlocksAluminium Control enclosure with 4 control elements and E-Stop
Show all:
GateBoxes
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description

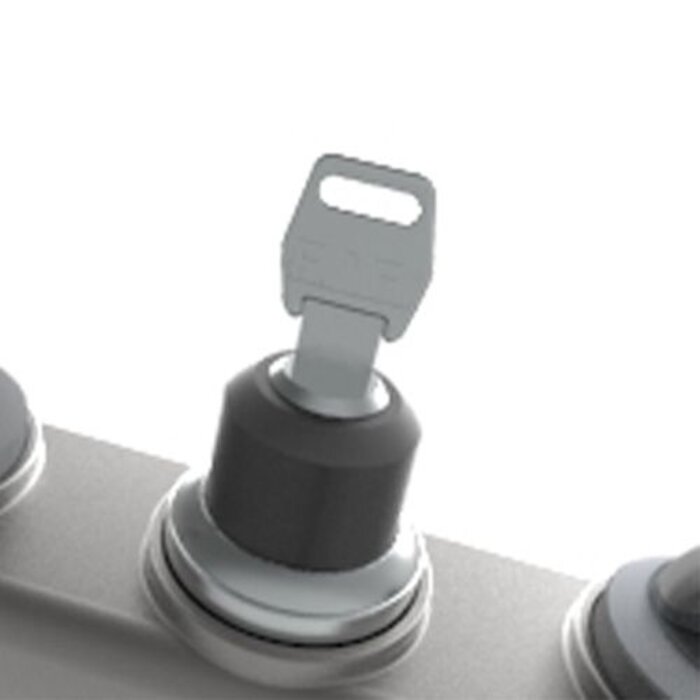

Aluminium Gate box with 4 control elements and E-Stop
Choose from 5 different colours illuminated push buttons.
Other control elements available on request.
19pin M23 quick disconnector.
Ergonomic 40mm aluminium enclosure.
Fully sealed to IP65.
Specifications
- Brand: Fortress Interlocks
- Article number: THCETPXPXPXPXQ8
- Type: Gate box
- E-stop: 2NC
- Series: tGard
- CE-mark: Machinery Directive 2006/95/EG
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC
- Housing: Painted die-cast aluminium
- Cable Colour: Dark grey
- Operating temperature: -5°C to +40 °C
- IP rating: IP65 (IEC/EN 60529)
- Connection: 19pin M23 quick disconnector
