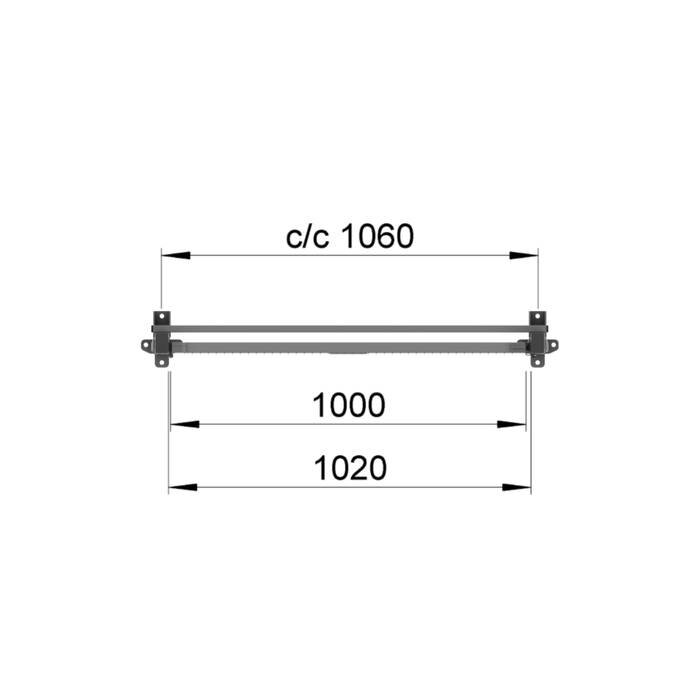

Powder coated steel single hinged door ST30.
Panel height 2050mm.
For use with 2200mm guarding height (incl. 150mm floor distance).
Supplied with 2 posts, mesh panel, 2 hinges, 2 panel brackets, corresponding bolts and M10x80 floor fixings for easy mounting of panels.
Mesh size 100 x 20mm (fully welded).
Frame dimensions 30 x 20mm.
Post dimensions 60 x 40mm.
Supplied in yellow RAL 1018.
Follow Me installation manuals included with shipment.
Meets the requirements of the Machinery Directive, 2006/42/EC.
Components are held captive in the guard even when the system is dissasembled.
Available with different locking options (product bundles), c/w magnetic lock as standard.
Door height (mm) |
Panel width (mm) |
Colour |
Artikel-No. |
2200 |
700 |
RAL 1018 |
TRX-SHD-2200-700-1018 |
2200 |
800 |
RAL 1018 |
TRX-SHD-2200-800-1018 |
2200 |
1000 |
RAL 1018 |
TRX-SHD-2200-1000-1018 |
2200 |
1200 |
RAL 1018 |
TRX-SHD-2200-1200-1018 |
2200 |
1500 |
RAL 1018 |
TRX-SHD-2200-1500-1018 |
