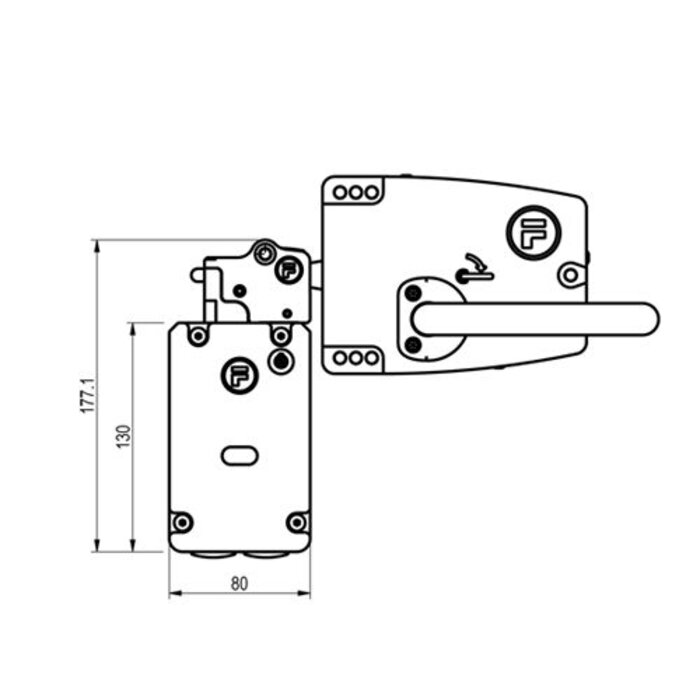

Extreme robust door handle operated steel safety interlock switch PLe

0 reviews

Delivery time 2 weeks

Extreme robust door handle operated steel safety interlock switch PLe

Enlarge image

Image 1 / 9

Extreme robust door handle operated steel safety interlock switch PLe

0 reviews

in stock

Delivery time 2 weeks

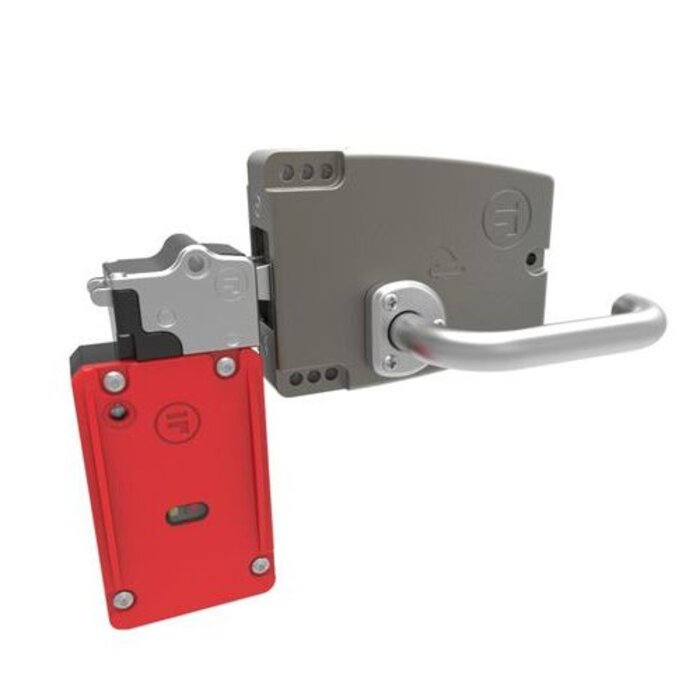

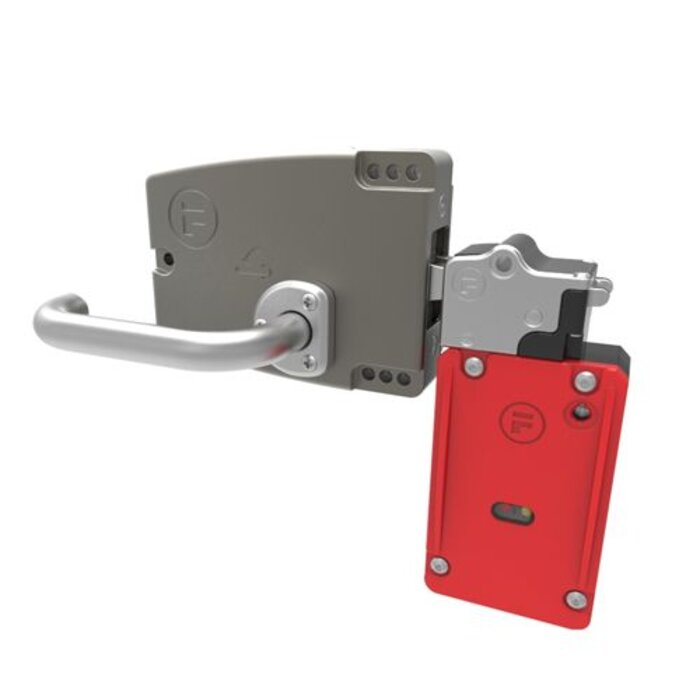

Fortress Interlocks amGard Pro door handle operated steel safety switch with guard locking for very harsh environments and suitable for PLe / SIL3 applications.

Article code EN2T6SL411

€961,00

(€1.162,81 Incl. tax)

Article code EN2T6SL411

Door handing:

Operation:

Buy 2 for €912,95 each and save 5%
Buy 5 for €888,93 each and save 7,5%

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Description
- Handle operated solenoid safety interlock switch for use in machine guarding applications.
- Door handle featuring +/- 12mm misalignment tolerance and padlock facility.
- For monitoring the position of sliding, hinged and removable protective doors.
- Ideal for hinged doors with a small radius.
- Suitable for applications where door locking is required (e.g. run-on movements).
- Built-in lock-out facility to accommodate max. 4 padlocks (max. 8mm diameter).
- Allows for guard misalignment ( +/- 12mm).
- Extremely robust, max. retention force 10.000 N.
- Fully sealed to IP67.
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- Only one unit needed to comply with PLe per EN ISO 13849-1.
- 4 position fixing at 90º increments.
- Wiring compartment.

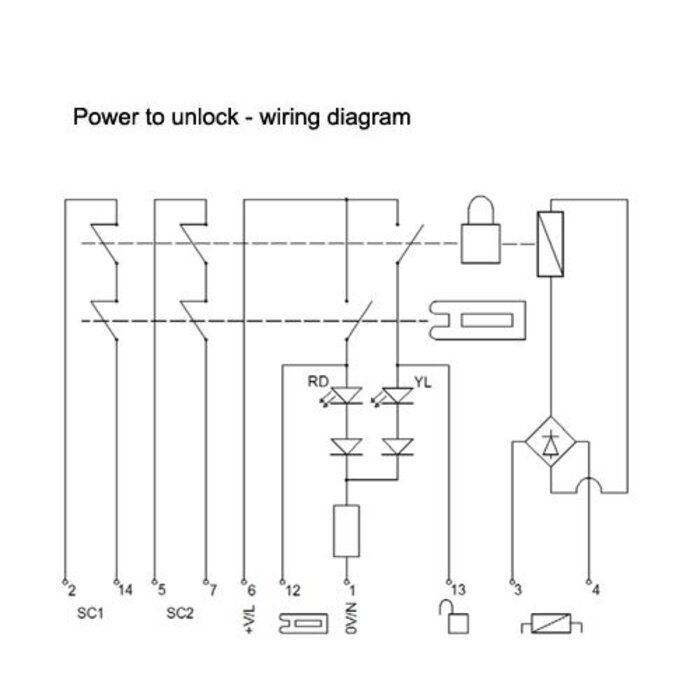

EN2T6SL411 power to unlock left hinged door

EN4T6SL411 power to unlock right hinged door

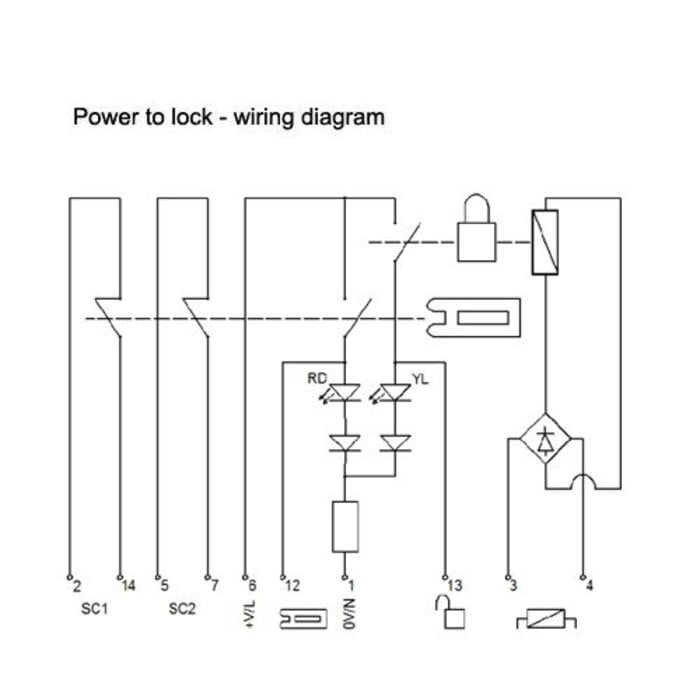

EN2T6SL461 power to lock left hinged door

EN4T6SL461 power to lock right hinged door

Specifications

Type:	Solenoid interlocked
Series:	amGard Pro
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V AC/DC, 110V AC or 230V AC
Solenoid voltage:	24V AC/DC, 110V AC or 230V AC
Contact options:	4 N/C + 2 N/O (PTU) - 2 N/C + 2 N/O (PTL)
Housing:	Powdercoated steel, Zinc alloy and Stainless steel
Color:	Red, black and silver
Status LED:	Yes (2)
Operating temperature:	-5°C to +40 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 years
B10d:	5,000,000
Explosion proof:	No
Connection:	Self wireable
Operation:	Power to lock or Power to unlock
Retention force:	10,000N
Mech life cycle:	1,000,000
Max. switch current:	3A
Override key:	Yes
