Art: MSS-1-0-CLIN-A00302-D024PU-EM

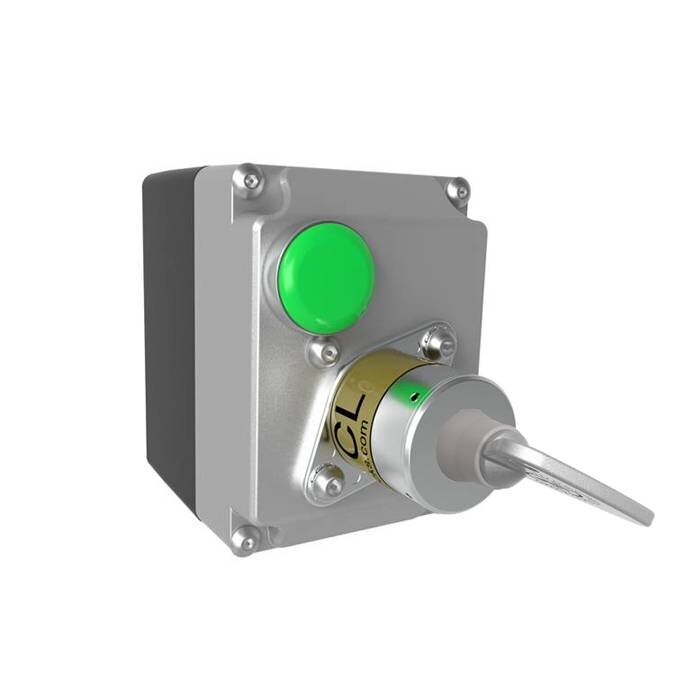

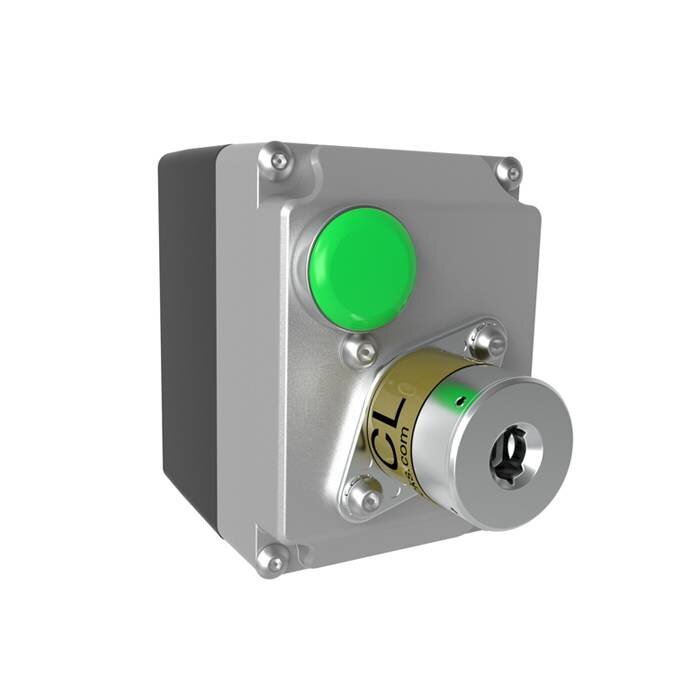

Fortress InterlocksCoded key switch with solenoid locking in IP67 enclosure
Show all:
Key Switches,Trapped Key Interlocks
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Key switch unit is suitable for isolation of power to machinery, or opening safety circuits.
- Including green illuminated push button.
- Suitable for machines with a run down cycle.
- Direct drive operation - positively opens contacts.
- The standard sequence is: Solenoid de-energised = key trapped, solenoid energised = key free.
- 24V DC solenoid

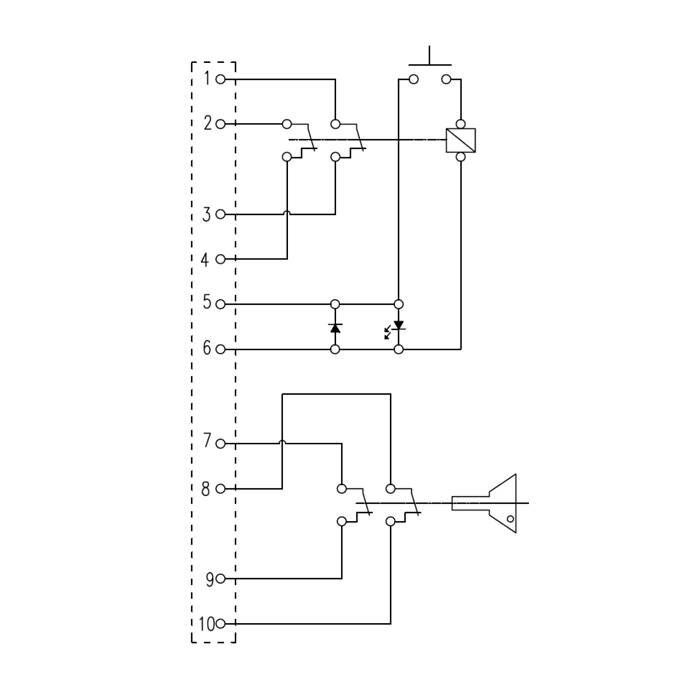

- 2 NC 3A Key monitoring contacts.
- 2 NC 3A Solenoid monitoring contacts.
- Different contact setting available.
- Stainless steel spring loaded dustcover available as option.
- 200,000 unique key codes available.
* Free of charge laser engraving on key and lock.
Matching engravings result in identical key code.
![]() | ![]() |
Specifications
- Brand: Fortress Interlocks
- Article number: MSS-1-0-CLIN-A00302-D024PU-EM
- Type: Key Switch
- Series: mGard
- CE-mark: Machinery Directive 2006/95/EG
- UL: UL 508 Industrial control equipment
- Operating voltage: -
- Solenoid voltage: -24V DC
- Contact options: 3NC + 3NO
- Housing: Die-cast zinc body with stainless steel operating mechanism
- Cable Colour: Dark grey
- Status LED: Yes
- Operating temperature: -5°C to +60 °C
- IP rating: IP67
- MTTFd: > 100 years
- B10d: 5.000.000
- Explosion proof: No
- Connection: Wiring compartment
- Operation: Solenoid energised = Key trapped
- Retention force: -
- Mech life cycle: 1,000,000
- Max. switch current: 3A (safety contacts)
- Override key: -
