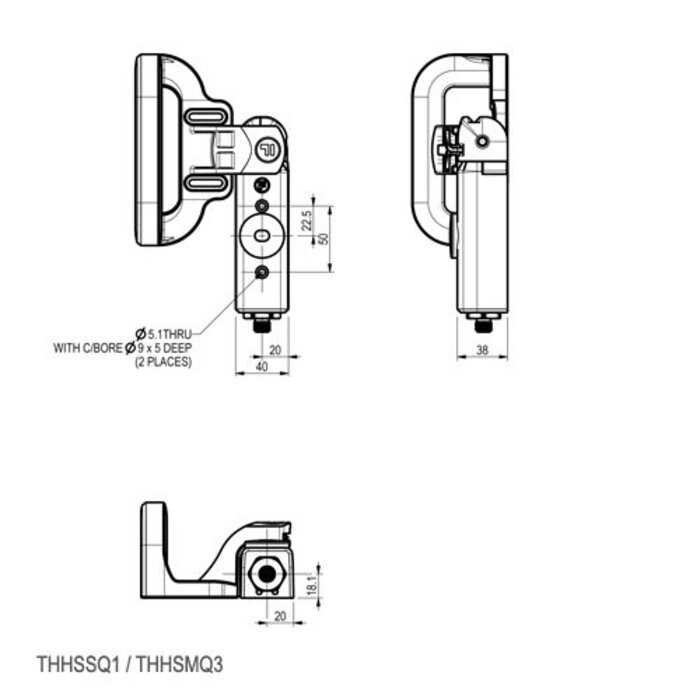

Fortress InterlocksHandle operated aluminium safety switch PLd
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Handle operated safety interlock switch for use in machine guarding applications.
- For monitoring the position of sliding, hinged and removable protective doors.

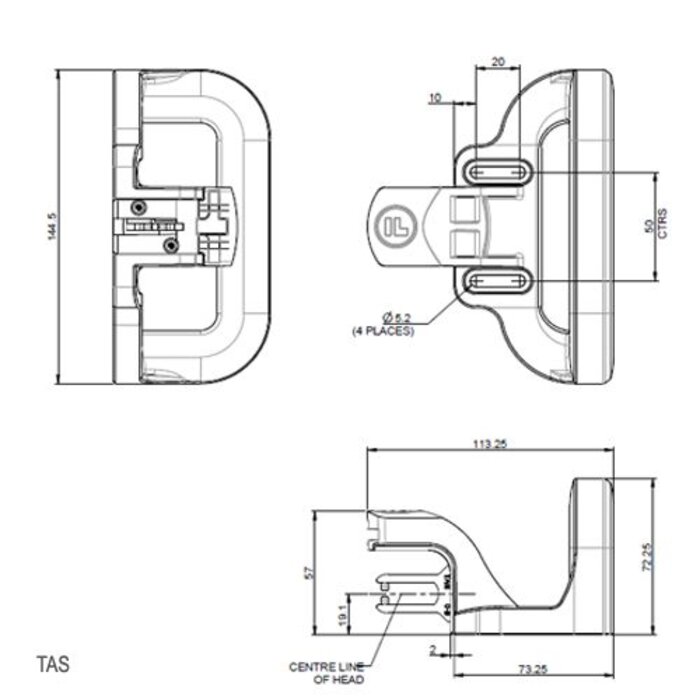

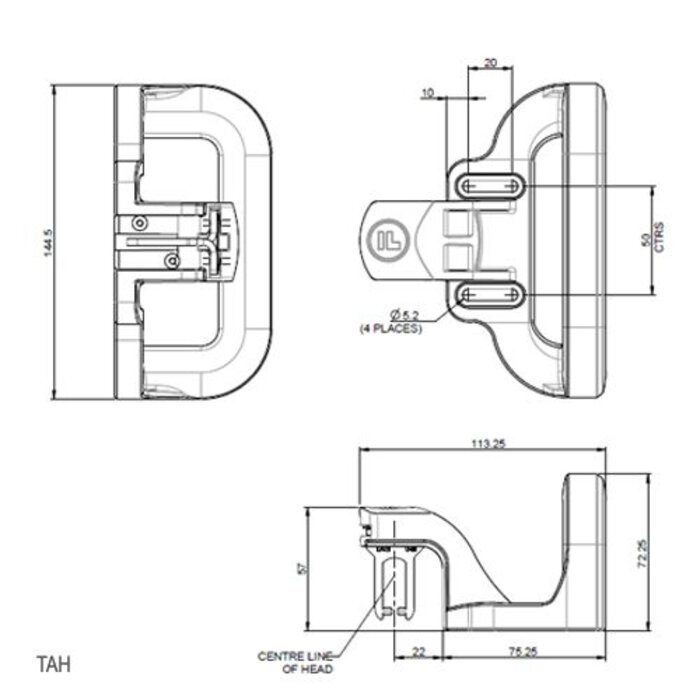

- Door handle is suitable for left and right hinged / sliding doors.
- 4 position fixing at 90º increments.
- Suitable for applications where door locking is not required (e.g. without run-on movements).
- Fully sealed to IP65.
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- Painted die-cast aluminium enclosure.
- Available with M12 (5 pin or 8 pin) quick disconnector.
Specifications
- Brand: Fortress Interlocks
- Article number: THHSSQ1
- Type: Safety interlock switch
- Series: tGard
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V DC
- Solenoid voltage: -
- Contact options: 2 N/C or 2 N/C + 1 N/O
- Housing: Painted die-cast aluminium
- Cable Colour: Dark grey
- Status LED: Yes (only on 2 N/C + 1 N/O)
- Operating temperature: -5°C to +40°C
- IP rating: IP65
- MTTFd: -
- B10d: 5,000,000
- Explosion proof: No
- Connection: Wiring compartment or quick disconnector
- Operation: -
- Retention force: 2,500N
- Mech life cycle: 1,000,000
- Max. switch current: 0.5A
- Override key: -
