Art: TRX-ST20-1250-200-9005
Description
Powder coated steel mesh panel ST20.
Panel height 1250 mm.
For use with 1400mm guarding height (incl. 150mm floor distance).
Add 60mm guarding width when selecting a post.
Mesh size 100 x 20mm (fully welded).
Frame size 19 x 19mm.
Supplied in black RAL 9005.
Suitable for use with Troax posts.
Follow Me installation manuals included with shipment.
Meets the requirements of the Machinery Directive, 2006/42/EC.
Components are held captive in the guard even when the system is dissasembled.
Along with Troax posts the guarding has been tested to handle impacts of up to 1,600 Joules.
| Panel heigth (mm) | Panel width (mm) | Colour | Article-No. |

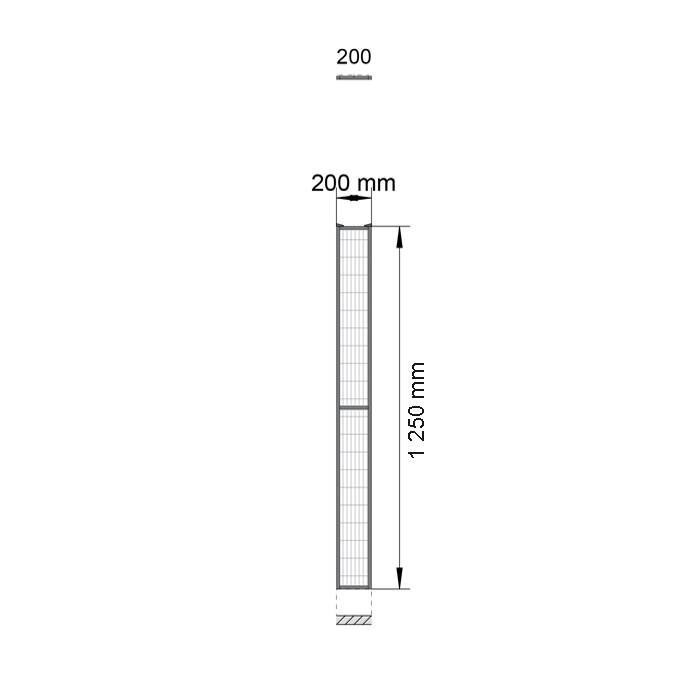

| 1250 | 200 | RAL 9005 | TRX-ST20-1250-200-9005 |

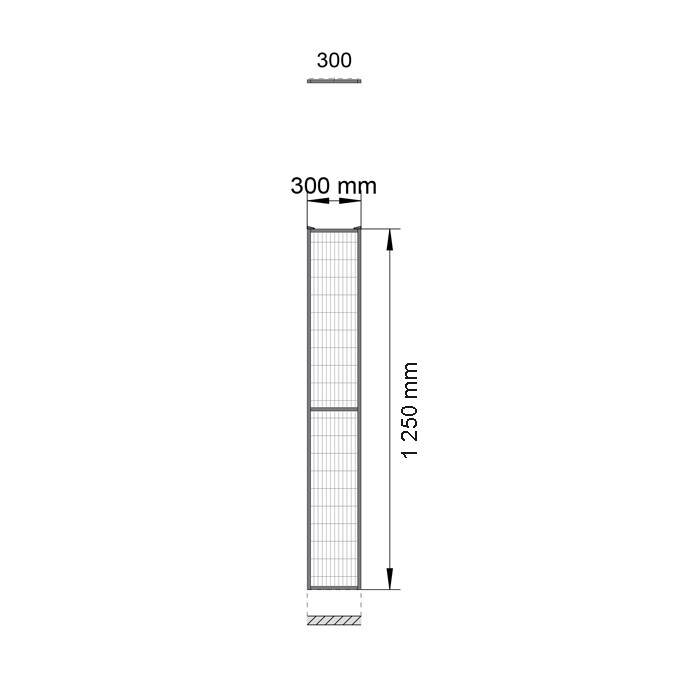

| 1250 | 300 | RAL 9005 | TRX-ST20-1250-300-9005 |
| 1250 | 700 | RAL 9005 | TRX-ST20-1250-700-9005 |

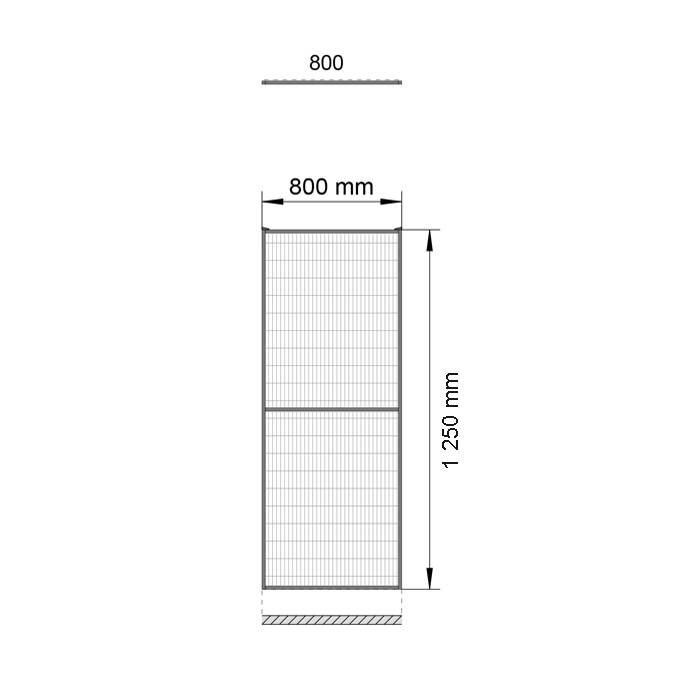

| 1250 | 800 | RAL 9005 | TRX-ST20-1250-800-9005 |
| 1250 | 1000 | RAL 9005 | TRX-ST20-1250-1000-9005 |
| 1250 | 1200 | RAL 9005 | TRX-ST20-1250-1200-9005 |

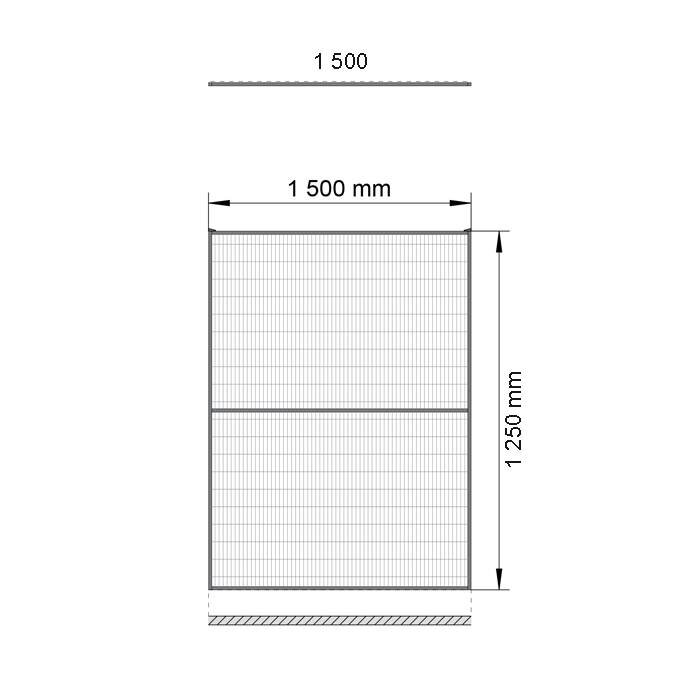

| 1250 | 1500 | RAL 9005 | TRX-ST20-1250-1500-9005 |
Specifications
- Brand: Troax
- Article number: TRX-ST20-1250-200-9005
- Dimensions: 20 x 1250mm
- Fixing: SmartfFix brackets
- Cable Colour: Black RAL 9005
- Cable Material: Powder coated steel
- Machinery Directive: meets 2006/42/EC
- Impact tested: 1,600 joule
- Frame Size: 19 x 19mm
- Mesh size: 100 x 20mm
- Wire: 3mm
- Min. safety distance: 120mm
