Art: TRX-USRP-2200-200-9005
Description

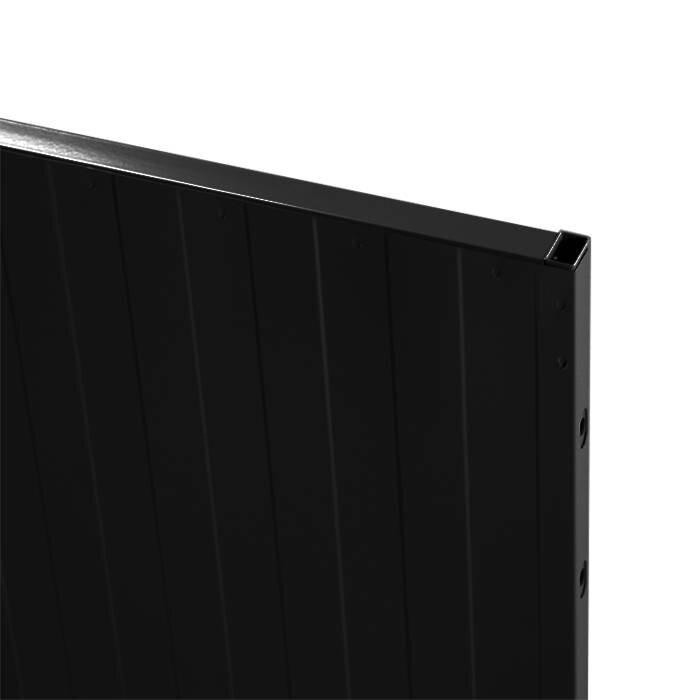

Black coated full steel panel US RP.
Panel height 2200mm.
For use with 2200mm guarding height (without free floor distance).
Add 60mm guarding width when selecting a post.
The profiled steel sheet is 0,7 mm and welded on to a 19 x 19 mm frame.
Frame size 19 x 19mm
Supplied in black RAL 9005.
Suitable for use with Troax posts.
Follow Me installation manuals included with shipment.
Meets the requirements of the Machinery Directive, 2006/42/EC.
Components are held captive in the guard even when the system is dissasembled.
Along with Troax posts the guarding has been tested to handle impacts of up to 1,600 Joules.
| Panel heigth (mm) | Panel width (mm) | Colour | Article-No. |
| 2200 | 200 | RAL 9005 | TRX-USRP-2200-200-9005 |
| 2200 | 300 | RAL 9005 | TRX-USRP-2200-300-9005 |
| 2200 | 700 | RAL 9005 | TRX-USRP-2200-700-9005 |
| 2200 | 800 | RAL 9005 | TRX-USRP-2200-800-9005 |
| 2200 | 1000 | RAL 9005 | TRX-USRP-2200-1000-9005 |
| 2200 | 1200 | RAL 9005 | TRX-USRP-2200-1200-9005 |
| 2200 | 1500 | RAL 9005 | TRX-USRP-2200-1500-9005 |
Specifications
- Brand: Troax
- Article number: TRX-USRP-2200-200-9005
- Dimensions: 19 x 2200mm
- Fixing: SmartfFix brackets
- Cable Colour: Black RAL9001
- Cable Material: Powder coated steel
- Machinery Directive: meets 2006/42/EC
- Impact tested: 309 joule
- Frame Size: 19 x 19mm
- Mesh size: -
- Wire: -
- Min. safety distance: 0mm
