Fortress InterlocksRL-24I-IC-22/RL-24I-IC-D | Elektrical Isolator Check
The REMLIVE RL-24i Isolator Check is a must-have while using lockout-tagout-tryout within the electrical field. The Isolator Check ensures a reliable confirmation when isolating equipment.

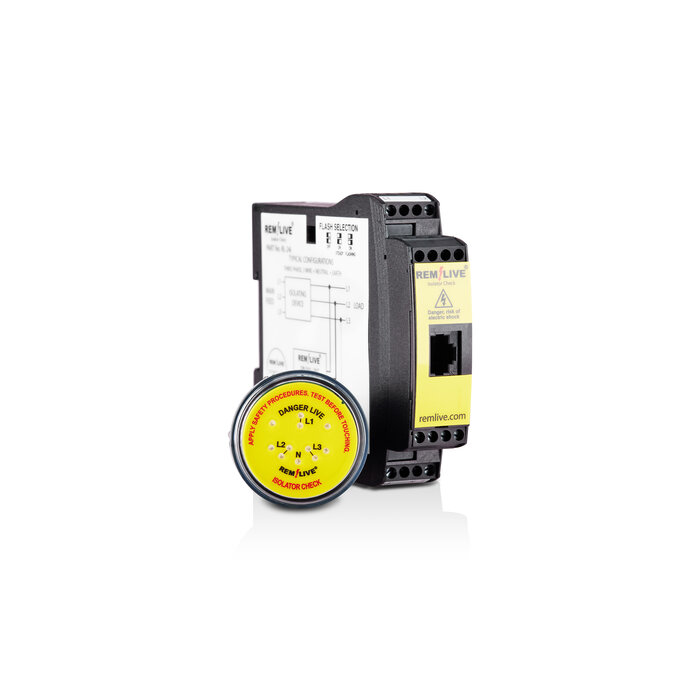

The Isolator Check consists of two parts: the Door Display Unit (RL-24I-IC-D) and the DIN Rail Monitoring Unit (RL-24I-IC-22). The door/flange unit is installed onto the front of the control panel or switch making the isolation and live status visible to everyone.
The RL-24i Isolator Check is capable of monitoring voltages up to 690 VAC for CAT IV configurations. The display shows a live isolation status on the front of the control panel. The RL-24i isolator Check is capable of monitoring voltages up to 690 VAC for CAT IV configurations. The super bright display provides the user with a quick and easy method of proof of isolation in lock-out tag-out procedures. The display has a constant flash rate, going every second.
A low 3.8V direct current to the Door Display Unit ensures optimal operator safety. The RL-24i Isolator Check enables the monitoring of voltages and individual phase lines (even after isolation!) while consuming minimal power. It is maintenance-free and built to IP66 standards, maintaining the original switchboard’s ingress protection. The RL-24i unit is housed in a robust, V0-rated enclosure for durability, insulation, and halogen-free safety. Additionally, the Isolator Check operates in temperatures ranging from -35°C to 55°C.
The RL-24i Isolator Check is compliant with EN 61326-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1, NEMA 4X, IEC 60204, RoHS 2011/65/EU & 2015/863.
